STP / STP-S Counter Current Jet System for Swimming Pools
STP / STP-S Counter Current Jet System for Swimming Pools
STP / STP-S Counter Current Jet System for Swimming Pools
STP / STP-S Counter Current Jet System for Swimming Pools
Product code: 11316 Category: Tag:

Overview

The STP Counter Current kit pairs a single-stage centrifugal pump with a counterflow jet that can be installed in concrete, liner, prefabricated and panelled (with liner) swimming pools to provide you with the a fully adjustable swimming trainer.

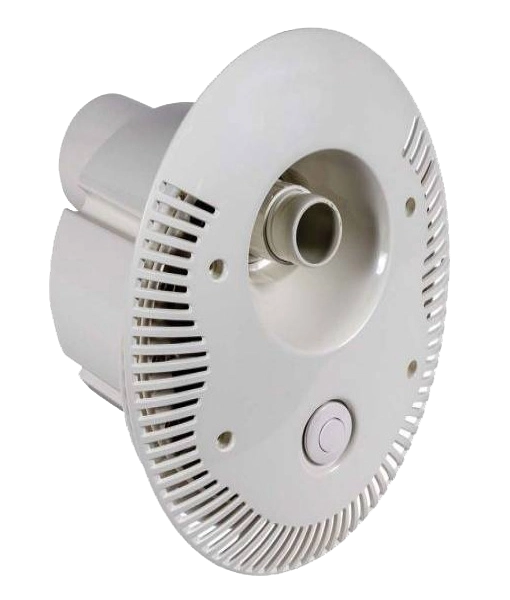

The STP counter current features an elliptical fascia.

The STP has an adjustable 40mm nozzle, allowing you to regulate the jet strength, air suction and direction, the nozzle, suction and pneumatic switch are all positioned in the front cover panel of the equipment.

The STP 2200 has a flow rate of 916 litres per minute.

Please note that the white pressure pipe and fittings are not supplied as part of the kit and are for illustration purposes only, a pipework kit is available separately.

Key features

Jet stream that comes ready for easy installation

STP 2200 with elliptical fascia

It is possible to regulate the jet strength and air suction on the nozzle of 40 mm in diameter, which is directionally adjustable

The nozzle, suction and pneumatic switch are positioned in the front cover panel of the equipment

Counterflow nozzle 40 mm (regulation water-air)

Pool wall lead-through

Single phase pump

Electropneumatic switch with safety element

Please note that the white pressure pipe and fittings shown are for illustration purposes only – the supplied kit includes pump, facing unit, housing for concrete pools, air suction pipe, pneumatic pipe, two ball valves and control switch – please see page four of specification sheet for exact contents of kit

Downloads

Specifications

Flowrate Max.
 916 L/min
Head Max.
 10m
Power
 3.0 HP
Power
 2.2 kW
Voltage
 230v / 400v
Speed
 2850 RPM
Discharge Size
 75mm
Suction Size
 75mm
Flowrate Max.
 1,083 L/min
Head Max.
 14.5m
Power
 4.0 HP
Power
 3.0 kW
Voltage
 400v
Speed
 2850 RPM
Discharge Size
 75mm
Suction Size
 75mm
Flowrate Max.
 1,333 L/min
Head Max.
 17m
Power
 5.5 HP
Power
 4.0 kW
Voltage
 400v
Speed
 2850 RPM
Discharge Size
 75mm
Suction Size
 75mm

Technical data

Suction and discharge mountings in polypropylene

Motor shaft in stainless steel AISI-304

Impeller in PPO

Mechanical seal in sic-sic

Motor housing in aluminium L-2521

Asynchronous, two poles

IP 55 protection

Class F insulation

Continuous operation
