TILD VP | Time Intelligent Linked Device
£735
Documents
Product overview

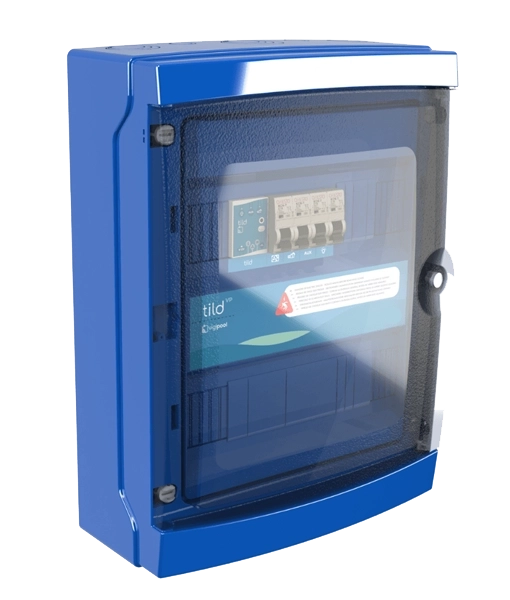

TILD VP, Time Intelligent Linked Device, allows you to control the main functions of the pool such as the filtration pump, the pool lighting or the heat pump. The whole system is automated according to events (water temperature, sunset, low temperature).

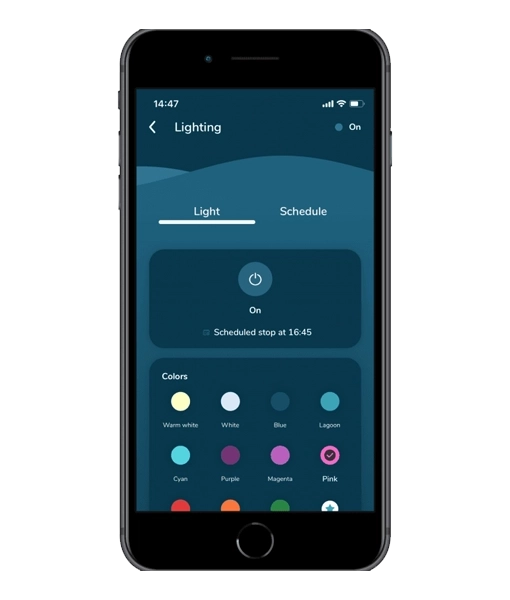

Turn on your lights and change the colours or check remotely that the filtration pump is correctly set up using the Vigipool mobile application.
Key features
Filtration adapted to water temperature (sensor supplied), meaning the pump is not overused, saving energy and reducing wear and tear
Automatic light switching with colour and brightness management (requires coloured LEDs)
Set up and monitor your pool on your Vigipool application Apple iOS | Google Play
All equipment is connected to marked terminal blocks and the cabinet is equipped with a P.A.C. outlet as well as quick connections for level control, and a programmable auxiliary output
Details
Technical
Power supply: 230V / 30mA
Breakers: Thermal-magnetic circuit breakers (2 x C16 and 1 x C10)
Heat pump output: Integrated protection Circuit breaker D16 | Not TILD driven
Filtration output: For pumps up to 7A single-phase (1.5hp)
Auxiliary output: 230V power supply protected up to 10A (circuit breaker C10) | Connection to contactor 25A
Output lighting: 230/12V 100VA Transformer | Protected by circuit breaker C10
Connection: Wi-Fi (local and remote) / Bluetooth®
