Not sure what size heat pump you need? Use our sizing guide or request a free quote
Key features
Vertical design, requires small discharge area, ideal for installation in confined spaces

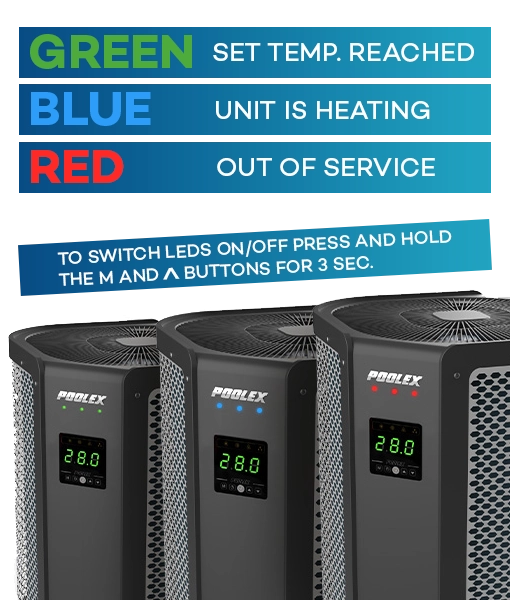

Coloured LEDs indicate running status; green when the set temperature has been reached, blue when the unit is heating and red when the heat pump is out of service
Full Inverter technology
Average COP of 7.51 (A15/W26) and 15.21 (A26/W26)
Built-in Wi-Fi, user friendly smartphone control – requires Smart Life app (iOS and Android)
Auto, Heat and Cool modes, running modes include Boost mode for fastest heating or cooling, Silent mode for quietest running and Eco mode for day to day maintaining of your set temperature
Heating range from 15-40°C
Timer function (three programmes)
Works down to -10 degrees, suitable for all year round use
R32 Refrigerant
High quality Toshiba and Mitsubishi compressors
DC Inverter motor with infinitely variable speed
DC inverter fan motor
Corrosion resistant ABS case
Titanium heat exchanger, chlorine and salt resistant
Automatic defrost with additional Forced Defrost mode
Dual antifreeze system to avoid frost damage: Revolutionary exchanger with patented antifreeze system, plus a smart monitoring system to preserve the pipework and liner without emptying the pool in winter
50mm / 1½ inch water connections – either 1½ inch female thread to accept threaded hose tails for connecting 32/38mm hoses or 1½ inch glue socket for pressure pipe
Supplied with water unions, condensate hose and rubber isolating feet
Downloads
Specifications (.pdf)
Manual (.pdf)
Case Study: Heating a large volume pool
Product specifications
Max. Heating Capacity A26/W26 |
7.7kW |
Power Input A26/W26 |
0.10~1.13kW |
COP A26/W26 |
6.84~15.31 |
Max. Heating Capacity A15/W26 |
5.82kW |
Power Input A15/W26 |
0.15-1.18kW |
COP A15/W26 |
4.93~7.52 |
Max. Power Input |
1.6kW |
Minimum Fuse (C Type MCB) |
10A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
19-27dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
510mm x 510mm x 690mm |
Weight |
30Kg |
Nominal flow |
2.4m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
10.35kW |
Power Input A26/W26 |
0.13~1.50kW |
COP A26/W26 |
6.87~15.35 |
Max. Heating Capacity A15/W26 |
7.82kW |
Power Input A15/W26 |
0.20-1.58kW |
COP A15/W26 |
4.95~7.60 |
Max. Power Input |
2.0kW |
Minimum Fuse (C Type MCB) |
10A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
20-28dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
510mm x 510mm x 690mm |
Weight |
35Kg |
Nominal flow |
3.2m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
13.27kW |
Power Input A26/W26 |
0.167~1.93kW |
COP A26/W26 |
6.84~15.15 |
Max. Heating Capacity A15/W26 |
9.83kW |
Power Input A15/W26 |
0.26-2.00kW |
COP A15/W26 |
4.92~7.61 |
Max. Power Input |
2.8kW |
Minimum Fuse (C Type MCB) |
16A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
20-28dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
510mm x 510mm x 690mm |
Weight |
40Kg |
Nominal flow |
4m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
16.53kW |
Power Input A26/W26 |
0.206~2.38kW |
COP A26/W26 |
6.93~15.34 |
Max. Heating Capacity A15/W26 |
12.62kW |
Power Input A15/W26 |
0.32-2.6kW |
COP A15/W26 |
4.85~7.52 |
Max. Power Input |
3.3kW |
Minimum Fuse (C Type MCB) |
16A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
23-31dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
575mm x 575mm x 780mm |
Weight |
47Kg |
Nominal flow |
5m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
21.2kW |
Power Input A26/W26 |
0.26~3.09kW |
COP A26/W26 |
6.86~15.17 |
Max. Heating Capacity A15/W26 |
15.83kW |
Power Input A15/W26 |
0.42-3.28kW |
COP A15/W26 |
4.82~7.54 |
Max. Power Input |
4.8kW |
Minimum Fuse (C Type MCB) |
25A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
24-32dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
575mm x 575mm x 780mm |
Weight |
52Kg |
Nominal flow |
6.7m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
26.82kW |
Power Input A26/W26 |
0.37~4.17kW |
COP A26/W26 |
6.43~14.86 |
Max. Heating Capacity A15/W26 |
20.03kW |
Power Input A15/W26 |
0.56-4.42kW |
COP A15/W26 |
4.52~7.35 |
Max. Power Input |
5.8kW |
Minimum Fuse (C Type MCB) |
32A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
28-37dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
575mm x 575mm x 780mm |
Weight |
100Kg |
Nominal flow |
8.5m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
32.63kW |
Power Input A26/W26 |
0.41~4.82kW |
COP A26/W26 |
6.76~15.32 |
Max. Heating Capacity A15/W26 |
24.22kW |
Power Input A15/W26 |
0.72-5.00kW |
COP A15/W26 |
4.84~7.52 |
Max. Power Input |
6.5kW |
Minimum Fuse (C Type MCB) |
32A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
29-38dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
660mm x 660mm x 1030mm |
Weight |
104Kg |
Nominal flow |
10.5m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
21.2kW |
Power Input A26/W26 |
0.26~3.09kW |
COP A26/W26 |
6.86~15.23 |
Max. Heating Capacity A15/W26 |
15.83kW |
Power Input A15/W26 |
0.42-3.28kW |
COP A15/W26 |
4.82~7.54 |
Max. Power Input |
4.8kW |
Minimum Fuse (C Type MCB) |
10A |
Voltage |
380V |
Refrigerant |
R32 |
Noise Level (10m) |
24-32dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
575mm x 575mm x 780mm |
Weight |
52Kg |
Nominal flow |
6.7m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
26.86kW |
Power Input A26/W26 |
0.34~4.16kW |
COP A26/W26 |
6.44~14.9 |
Max. Heating Capacity A15/W26 |
20.06kW |
Power Input A15/W26 |
0.564-4.41kW |
COP A15/W26 |
4.54~7.36 |
Max. Power Input |
5.8kW |
Minimum Fuse (C Type MCB) |
16A |
Voltage |
380V |
Refrigerant |
R32 |
Noise Level (10m) |
29-38dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
575mm x 575mm x 780mm |
Weight |
104Kg |
Nominal flow |
8.5m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
32.66kW |
Power Input A26/W26 |
0.41~4.81kW |
COP A26/W26 |
6.78~15.35 |
Max. Heating Capacity A15/W26 |
24.24kW |
Power Input A15/W26 |
0.709-4.99kW |
COP A15/W26 |
4.85~7.55 |
Max. Power Input |
6.5kW |
Minimum Fuse (C Type MCB) |
16A |
Voltage |
380V |
Refrigerant |
R32 |
Noise Level (10m) |
29-38dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
660mm x 660mm x 1030mm |
Weight |
104Kg |
Nominal flow |
10.5m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
40.3kW |
Power Input A26/W26 |
0.507~5.97kW |
COP A26/W26 |
6.75~15.36 |
Max. Heating Capacity A15/W26 |
30.06kW |
Power Input A15/W26 |
0.839-6.24kW |
COP A15/W26 |
4.81~7.52 |
Max. Power Input |
8.2kW |
Minimum Fuse (C Type MCB) |
16A |
Voltage |
380V |
Refrigerant |
R32 |
Noise Level (10m) |
30-39dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
660mm x 660mm x 1030mm |
Weight |
120Kg |
Nominal flow |
13m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Max. Heating Capacity A26/W26 |
45.05kW |
Power Input A26/W26 |
0.51~6.81kW |
COP A26/W26 |
7.09~15.22 |
Max. Heating Capacity A15/W26 |
35.02kW |
Power Input A15/W26 |
0.98-7.4kW |
COP A15/W26 |
4.73~7.48 |
Max. Power Input |
9kW |
Minimum Fuse (C Type MCB) |
20A |
Voltage |
380V |
Refrigerant |
R32 |
Noise Level (10m) |
30-39dba |
Fan Direction |
Vertical |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
660mm x 660mm x 1030mm |
Weight |
120Kg |
Nominal flow |
15m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
What is COP?
COP stands for Coefficient of Performance
COP is quoted as a number, such as 16.60
For each kW of energy input, 16.60 x kW would be output
The higher the output, the lower the running costs
Installation
If you are thinking of heating your pool you should cover the pool when not in use as 80% of heat loss occurs through surface evaporation, a separate solar or bubble cover is a worthwhile investment if you don’t have an existing cover.
With an above ground pool it is especially important to keep it covered as these pools are not well insulated against heat loss – additional insulation around the sides and bottom of an above-ground pool can help to retain valuable heat – in fact properly insulating your pool can extend your season or even reduce the size of heat pump required.
All heat pumps in the range will require electrical installation by a qualified electrician, the use of a separate MCB (Miniature Circuit Breaker, slow type, C or D curve) is recommended. Full installation guidelines can be found in the user manual including the required fuse rating and cable size.
The electrical connection marked water pump should not to be used for connecting your pump if using a sand filter as flow protection on the heat pump will switch the power off preventing backwash operation (flow is reversed during backwashing).
Water inlet and outlet connections are 1½ inch / 50mm across the range, adaptors for both pipework sizes are included.
If the flow rate through your heat pump is too high it can take longer to heat your pool or you may struggle to achieve your desired temperature, our bypass kit for above ground pools optimises the flow rate to maximise the heat transfer to your pool water. A bypass kit also allows the circulation and filtering of pool water without heating and for winterising your heat pump.
The Vertigo Fi features built-in Wi-Fi connectivity as standard (requires Wi-Fi network with suitable signal strength) and can be controlled from your smartphone. The ‘Smart Life’ App is available for both iOS and Android smartphones.
The App can be used to view the current pool water temperature, adjust the desired temperature, switch between heating and cooling modes, set the timer and turn the heat pump on and off remotely.
Your Poolex Vertigo Fi swimming pool heat pump should always be installed outside, the ABS case provides necessary protection from the weather, thanks to the vertical design of the Vertigo, the upward ventilation requires a small discharge area, meaning these heat pumps can be installed in a confined space.
The manufacturer literature may state that the heat pump should be positioned above the waterline, the assumption being that pools are in-ground, therefore the heat pump would sit at ground level.
If you have an above-ground pool please position your heat pump at ground level (therefore below the waterline), there is no need to elevate the heat pump.
