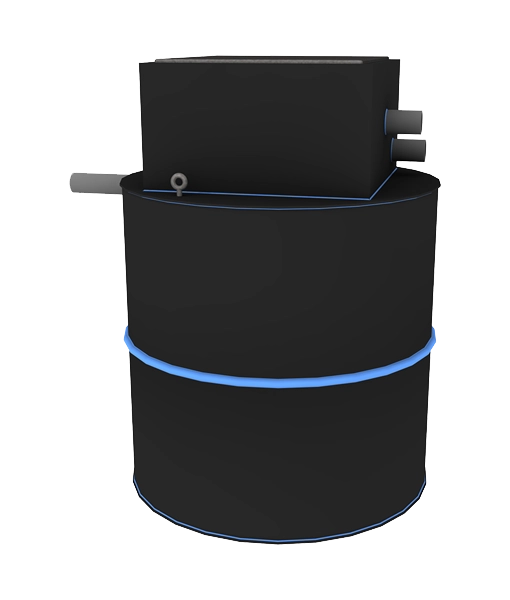

Micro Sewage Treatment Plant
Product code: 9246 Category: Tag:

Overview

The Micro sewage treatment plant provides a safe, efficient, reliable and cost-effective solution to sewage disposal where there is no access to a main sewer, the Micro is available with gravity or pumped discharge, installation is quick, simple and cost effective.

Once installed there is little visual impact, the supplied flat cover finishes flush with ground level and is rated for pedestrian use, Micro treatment plants can be upgraded at an extra cost for installation in trafficked areas.

Details

The Micro sewage treatment system is a three-stage biological process contained within a single tank structure, based on the principles of a submerged bed reactor and designed in accordance with the requirements of BS6297.

Careful configuration of the internal flow path and the inclusion of non-mechanical recirculation systems ensures optimal process performance as demonstrated by the exceptional results obtained from the independent testing, providing complete peace of mind for the end user.

The Micro sewage treatment system is designed to achieve the minimum required effluent quality standard of 20mg/litre Biochemical Oxygen Demand (BOD) : 30mg/litre Suspended Solids (SS) : 20mg/litre Ammoniacal Nitrogen (NH4), which in European Standard performance testing relates to an efficiency of better than 94%.

The certified performance of the Micro system is that it produces an average final effluent quality of 11mg/litre Biochemical Oxygen Demand (BOD) : 16mg/litre Suspended Solids (SS) and 7mg/litre Ammoniacal Nitrogen.

This relates to an average efficiency ratio of 96.2%, better than most other manufacturers, with individual test efficiency results being as high as 98.8%. As part of the test procedure the Micro system was proven to have one of the lowest operating costs.

If a more stringent standard of final effluent quality is required by the Environment Agency, Micro can design systems to achieve this.

The Micro sewage treatment plant is fully tested and CE certified to BS EN 12566-3, achieving industry leading test results in both process and structural efficiency.

All Micro systems are complete with failure alarms as standard (as required by BS EN 12566-3), there are no electrical or mechanical components within the treatment plant, ensuring that any maintenance requirements are kept to an absolute minimum, the externally mounted air blower will require a power supply.

Highlights

Robust Polypropylene single tank construction for easy and cost effective installation, no visual intrusion, flat, flush ground level pedestrian rated covers

Available in sizes with storage capacities to suit accommodations from six to 18 persons

Externally mounted air blower with 10m connecting pipe (blower requires a power supply), no mechanical or electrical parts within non-pumped version, low running and maintenance costs

Pumped versions have single integral pump based on 3m lift and 100m discharge

Standard inlet invert (600mm), deep inlet inverts available to avoid pumping crude sewage to plant

Failure alarm system supplied as standard, GSM telemetry dial out alarm units available at small additional cost

Delivered direct to site, suitable unloading equipment must be available on site

Specifications

Population
 6
BOD Load
 0.36 Kg/Day
Design Flowrate
 1,200 L/Day
Weight
 250 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 2.1m x 1.5m x 1.5m

Documents

Micro 6POP G – Diagram (.pdf)

Micro 6POP G – Process (.pdf)

Population
 6
BOD Load
 0.36 Kg/Day
Design Flowrate
 1,200 L/Day
Weight
 250 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 2.1m x 1.5m x 1.5m

Documents

Micro 6POP P – Diagram (.pdf)

Population
 9
BOD Load
 0.54 Kg/Day
Design Flowrate
 1,800 L/Day
Weight
 300 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 2.1m x 1.7m x 1.7m

Documents

Micro 9POP G – Diagram (.pdf)

Micro 9POP G – Process (.pdf)

Population
 9
BOD Load
 0.54 Kg/Day
Design Flowrate
 1,800 L/Day
Weight
 300 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 2.1m x 1.7m x 1.7m

Documents

Micro 9POP P – Diagram (.pdf)

Population
 12
BOD Load
 0.72 Kg/Day
Design Flowrate
 2,400 L/Day
Weight
 350 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 2.1m x 1.9m x 1.9m

Documents

Micro 12POP G – Diagram (.pdf)

Micro 12POP G – Process (.pdf)

Population
 12
BOD Load
 0.72 Kg/Day
Design Flowrate
 2,400 L/Day
Weight
 350 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 2.1m x 1.9m x 1.9m

Documents

Micro 12POP P – Diagram (.pdf)

Population
 18
BOD Load
 1.08 Kg/Day
Design Flowrate
 2,700 L/Day
Weight
 400 Kg
Consent Standard: BOD / Suspended Solids / Ammonia
 20 / 30 / 20 mg/L
Tank Dimensions (H x W x L)
 1.96m x 2.2m x 2.2m

Documents

Micro 18POP – Diagram (.pdf)
