Product code: 8522 Category: Tag:

Overview

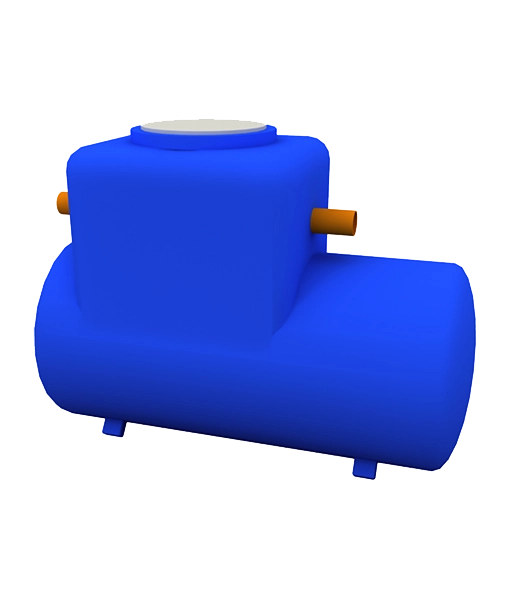

The class 1 Euroceptor bypass oil separator and was designed to comply with the requirements of BSEN858 and appears on the Environment Agency list of compliant products for PPG3.

Inside the Euroceptor a carefully designed and constructed system of pipes, weirs and filters allows the first 10% of any water run-off to enter the main separation chamber where any light liquids (oil and petrol) or sediment (silt) is separated and retained, whilst the clean water is allowed to pass through without restriction.

After the initial filtering, the rest of the water run-off entering the Euroceptor is deemed to be ‘clean’, and is allowed to bypass the main chamber and pass through to the downstream drainage system unhindered.

The Euroceptor is designed for use in large impermeable areas such as car parks, truck parks or airport aprons, where there is no additional storage or transfer of oil or fuel and therefore the possibility of significant spillages of pollutants is unlikely.

For areas where there is the storage of, or unloading of, large volumes of hydrocarbon or other possible pollutants, full retention separators such as the SUPERCEPTOR should be considered

The Euroceptor allows the first 10% of any rain storm to enter the main separation chamber where any hydrocarbon (oil) or sediment is separated and retained, whilst the clean water is allowed to pass through without restriction.

Any flow of more than the first 10% deemed to be ‘clean’ is allowed to bypass the main chamber and pass through to the downstream drainage system unhindered.

Key features

Class 1 bypass oil separator complies with BS EN 858 and EA compliant for PPG3

Designed for use in large impermeable areas such as car parks, lorry parks and airport aprons

Area drained up to 16,660m²

Silt capacity up to 3,000L

Oil capacity up to 450L

Handles up to 30 L/s

Larger separators available on request

Downloads

Specifications

Area drained
833m²
Length
1,744mm
Silk capacity
150L
Diameter
1,000mm
Height
1,755mm
Turret diameter
600mm
Oil capacity
22.5L
Area drained
1,666m²
Length
1,800mm
Silk capacity
300L
Diameter
1,000mm
Height
1,755mm
Turret diameter
600mm
Oil capacity
45L
Area drained
2,499m²
Length
2,381mm
Silk capacity
450L
Diameter
1,000mm
Height
1,850mm
Turret diameter
600mm
Oil capacity
67.5L
Area drained
3,332m²
Length
2,711mm
Silk capacity
600L
Diameter
1,000mm
Height
1,850mm
Turret diameter
600mm
Oil capacity
90L
Area drained
5,553m²
Length
2,689mm
Silk capacity
1,000L
Diameter
1,200mm
Height
2,245mm
Turret diameter
600mm
Oil capacity
150L
Area drained
8,330m²
Length
2,925mm
Silk capacity
1,500L
Diameter
1,800mm
Height
2,635mm
Turret diameter
600mm
Oil capacity
225L
Area drained
11,106m²
Length
3,088mm
Silk capacity
2,000L
Diameter
1,800mm
Height
2,635mm
Turret diameter
750mm
Oil capacity
300L
Area drained
13,883m²
Length
4,562mm
Silk capacity
2,500L
Diameter
1,800mm
Height
2,869mm
Turret diameter
750mm
Oil capacity
375L
Area drained
16,660m²
Length
4,569mm
Silk capacity
3,000L
Diameter
1,800mm
Height
2,869mm
Turret diameter
750mm
Oil capacity
450L
