Designed and engineered with specialised functions for complete pool maintenance, AquaSense 2 delivers unparalleled professional cleaning that's just not possible with standard cleaners.

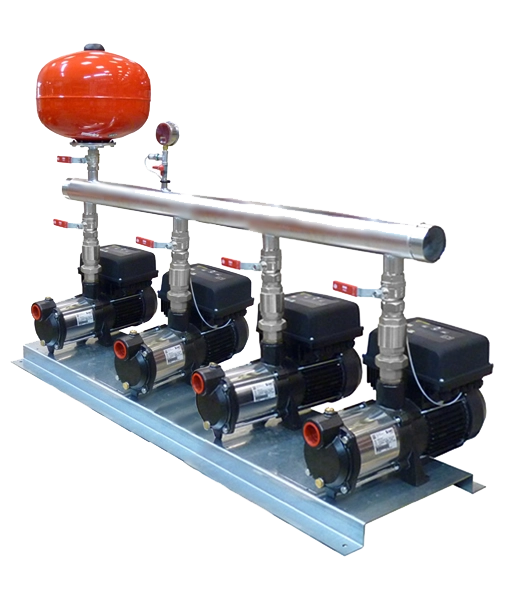

The Saci E-Motion Sigma quadruple cold water booster set guarantees considerable energy savings, constant water pressure, silent operation, safety and reliability.
The E-Motion control system features a frequency inverter that provides fixed pressure (the motor speed of the pump is increased or decreased to maintain pressure dependent on the flow required), energy savings and silent working. Set up is very simple, the user just needs to select the desired pressure and the rotation of the pump.
When the working pressure falls due to water consumption the pump automatically comes into operation, as the demand increases the E-Motion unit increases the frequency of the pump to maintain the desired pressure until the pump reaches its maximum speed.
The unit will automatically stop if the working pressure exceeds the value set by the user, similarly, the unit will not start until the set starting pressure is reached. If there is a lack of water in the supply the E-Motion will detect it immediately and stop the pump to avoid damage to the unit.
Key features
Fixed pressure regardless of flow required
Considerable energy savings
Silent working
Full connectivity (up to eight pumps with auto recognition)
LCD display indicates current and reference points for parameters
Protection against dry running, over current, over pressure and input voltage fluctuations
Start up process requires just pressure and rotation of pump
Max Flow: 350 litres per minute (21 m³/h)
Max Head: 90m (25 litres per minute)
Full Load Current: 14 amps (maximum)
Fine settings blocked by password, failures and incidents history
The Saci Sigma multistage pump with stainless steel impellers is a horizontal pump with high output and extremely quiet operation making it ideal for domestic and industrial pressurising systems.
The Sigma pump housing and impellers are constructed from stainless steel AISI 304, with the shaft in stainless steel AISI 420 and diffusers injected with fibreglass.
The inlet and outlet body is in cast iron GG-20 with internal and external rust proofing paint. The mechanical seal is graphite ceramic and stainless steel AISI 304.
The motor on the Sigma is a standard asynchronous motor, sealed from external ventilation and suitable for continuous operation. The motor has IP 55 protection and class F isolation.
The motor on the Sigma is suitable to work through frequency inverters.
The Saci E-Motion Sigma quadruple cold water booster set guarantees considerable energy savings, constant water pressure, silent operation, safety and reliability.
The E-Motion control system features a frequency inverter that provides fixed pressure (the motor speed of the pump is increased or decreased to maintain pressure dependent on the flow required), energy savings and silent working. Set up is very simple, the user just needs to select the desired pressure and the rotation of the pump.
When the working pressure falls due to water consumption the pump automatically comes into operation, as the demand increases the E-Motion unit increases the frequency of the pump to maintain the desired pressure until the pump reaches its maximum speed.
The unit will automatically stop if the working pressure exceeds the value set by the user, similarly, the unit will not start until the set starting pressure is reached. If there is a lack of water in the supply the E-Motion will detect it immediately and stop the pump to avoid damage to the unit.
Key features
Fixed pressure regardless of flow required
Considerable energy savings
Silent working
Full connectivity (up to eight pumps with auto recognition)
LCD display indicates current and reference points for parameters
Protection against dry running, over current, over pressure and input voltage fluctuations
Start up process requires just pressure and rotation of pump
Max Flow: 350 litres per minute (21 m³/h)
Max Head: 90m (25 litres per minute)
Full Load Current: 14 amps (maximum)
Fine settings blocked by password, failures and incidents history
The Saci Sigma multistage pump with stainless steel impellers is a horizontal pump with high output and extremely quiet operation making it ideal for domestic and industrial pressurising systems.
The Sigma pump housing and impellers are constructed from stainless steel AISI 304, with the shaft in stainless steel AISI 420 and diffusers injected with fibreglass.
The inlet and outlet body is in cast iron GG-20 with internal and external rust proofing paint. The mechanical seal is graphite ceramic and stainless steel AISI 304.
The motor on the Sigma is a standard asynchronous motor, sealed from external ventilation and suitable for continuous operation. The motor has IP 55 protection and class F isolation.
The motor on the Sigma is suitable to work through frequency inverters.
If you would like more information on our range of Poolstar products, including Poolex Spawer heat pumps, Holl's saunas, NetSpa ice baths and Formidra showers, you can talk to our team on 01284 658770 or send us an email.
We are proud to be the official UK & Ireland Poolstar distribution partner.
The Saci E-Motion Sigma quadruple cold water booster set guarantees considerable energy savings, constant water pressure, silent operation, safety and reliability.
The E-Motion control system features a frequency inverter that provides fixed pressure (the motor speed of the pump is increased or decreased to maintain pressure dependent on the flow required), energy savings and silent working. Set up is very simple, the user just needs to select the desired pressure and the rotation of the pump.
When the working pressure falls due to water consumption the pump automatically comes into operation, as the demand increases the E-Motion unit increases the frequency of the pump to maintain the desired pressure until the pump reaches its maximum speed.
The unit will automatically stop if the working pressure exceeds the value set by the user, similarly, the unit will not start until the set starting pressure is reached. If there is a lack of water in the supply the E-Motion will detect it immediately and stop the pump to avoid damage to the unit.
Key features
Fixed pressure regardless of flow required
Considerable energy savings
Silent working
Full connectivity (up to eight pumps with auto recognition)
LCD display indicates current and reference points for parameters
Protection against dry running, over current, over pressure and input voltage fluctuations
Start up process requires just pressure and rotation of pump
Max Flow: 350 litres per minute (21 m³/h)
Max Head: 90m (25 litres per minute)
Full Load Current: 14 amps (maximum)
Fine settings blocked by password, failures and incidents history
The Saci Sigma multistage pump with stainless steel impellers is a horizontal pump with high output and extremely quiet operation making it ideal for domestic and industrial pressurising systems.
The Sigma pump housing and impellers are constructed from stainless steel AISI 304, with the shaft in stainless steel AISI 420 and diffusers injected with fibreglass.
The inlet and outlet body is in cast iron GG-20 with internal and external rust proofing paint. The mechanical seal is graphite ceramic and stainless steel AISI 304.
The motor on the Sigma is a standard asynchronous motor, sealed from external ventilation and suitable for continuous operation. The motor has IP 55 protection and class F isolation.
The motor on the Sigma is suitable to work through frequency inverters.
