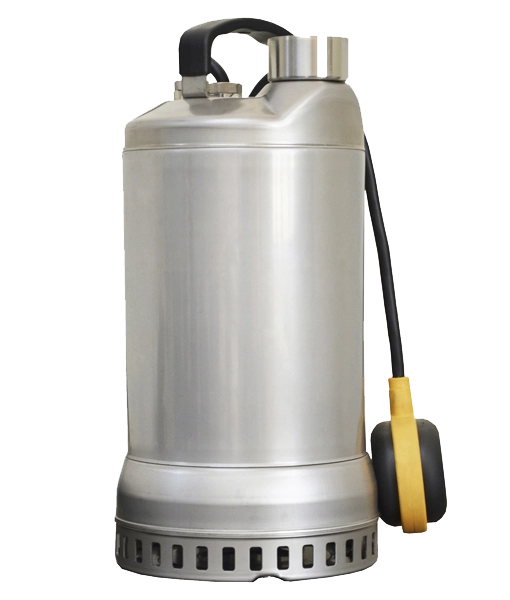

The Saci DRX is a full stainless steel submersible drainage pump which is ideal for the drainage of dirty and sandy water containing solids no larger than 8mm in diameter.
The pump body, impeller, filter, base, handle, shaft and casing are constructed from Stainless Steel AISI 304. The pump features a double mechanical seal with intermediate oil chamber.
All Saci pumps come with a two-year warranty.
Full stainless steel pump body and impeller
Dirty and sandy water containing small particles up to 8mm
Single phase (M) automatic operation, three phase (T) manual operation
Maximum flow rate 400 litres per minute, maximum head 20m
1½ inch discharge, 10m mains cable, optional hose tail
Operation |
Automatic |
Float Start Height |
437mm |
Float Stop Height |
85mm |
Flowrate Max. |
250 L/min |
Head Max. |
10m |
Impeller Type |
Vortex |
Horse Power |
0.75 HP |
Power |
0.55 kW |
Voltage |
230V |
Water Level Max. |
10m |
Discharge Size |
1½ Inch |
Free Passage |
8mm |
Pumped Medium |
Dirty and sandy water |
Cable Length |
10m |
Construction |
Stainless Steel AISI 304 |
Weight |
12 Kg |
Dimensions (H x W) |
357mm x 178mm |
Operation |
Automatic (1~) / manual (3~) |
Float Start Height |
497mm |
Float Stop Height |
85mm |
Flowrate Max. |
333 L/min |
Head Max. |
12m |
Impeller Type |
Vortex |
Horse Power |
1.0 HP |
Power |
0.75 kW |
Voltage |
230V / 400V |
Water Level Max. |
10m |
Discharge Size |
1½ Inch |
Free Passage |
8mm |
Pumped Medium |
Dirty and sandy water |
Cable Length |
10m |
Construction |
Stainless Steel AISI 304 |
Weight |
15 Kg |
Dimensions (H x W) |
407mm x 178mm |
Operation |
Automatic (1~) / manual (3~) |
Float Start Height |
497mm |
Float Stop Height |
85mm |
Flowrate Max. |
383 L/min |
Head Max. |
14m |
Impeller Type |
Vortex |
Horse Power |
1.5 HP |
Power |
1.1 kW |
Voltage |
230V / 400V |
Water Level Max. |
10m |
Discharge Size |
1½ Inch |
Free Passage |
8mm |
Pumped Medium |
Dirty and sandy water |
Cable Length |
10m |
Construction |
Stainless Steel AISI 304 |
Weight |
17 Kg |
Dimensions (H x W) |
407mm x 178mm |
Operation |
Manual |
Float Start Height |
497mm |
Float Stop Height |
85mm |
Flowrate Max. |
400 L/min |
Head Max. |
20m |
Impeller Type |
Vortex |
Horse Power |
2.0 HP |
Power |
1.5 kW |
Voltage |
400V |
Water Level Max. |
10m |
Discharge Size |
1½ Inch |
Free Passage |
8mm |
Pumped Medium |
Dirty and sandy water |
Cable Length |
10m |
Construction |
Stainless Steel AISI 304 |
Weight |
17 Kg |
Dimensions (H x W) |
407mm x 178mm |
Pump body, impeller, filter, base, handle, shaft and casing in stainless steel 304
Double mechanical seal with intermediate oil chamber
Asynchronous closed motor, F type isolation, IP68 protection
Motor is cooled by surrounding liquid, maximum immersion depth 10m
