Not sure what size heat pump you need? Use our sizing guide or request a free quote
Videos
Introduction to Remora heat pumps
Key features
Wi-Fi connectivity built-in – requires iOS / Android ‘Smart Life’ App
Plug and play convenience – 6kW, 8kW and 10kW models now come fitted with 2.8m cable and UK RCD plug
Three year parts and labour, seven years on the compressor and heat exchanger (parts only after year three)
High efficiency performance, up to 7.81kW of heat for every kW used
Extended season model works down to -15°C
Black ABS corrosion resistant cabinet
Wide range of set points from 5°C to 40°C (auto mode)
Heating mode, cooling mode and auto mode – the selectable range for temperature is 5°C to 40°C – please note that the unit is preset at 28°C, this is regarded as a comfortable swimming temperature, if you are looking to heat your pool above 28°C please speak to us about correctly sizing your heat pump
Easy digital temperature control with LCD display
Differential can be set to one degree (two degree swing), standard differential is two degrees (four degree swing) – allows more accurate temperature control
10m extension cable on Wi-Fi module for improved connectivity to home Wi-Fi networks
Remote input for external third party thermostatic management, for example RS PRO On/Off Temperature Controller
Extremely quiet running with low noise rotary compressor (scroll compressor on f23) and low noise horizonal fan
R32 gas for environmentally friendly operation (R410A on f23)
Water connections 1½ inch
Automatic defrost cycle
Spiral Titanium heat exchanger resistant to salt and chlorine
Flow switch prevents damage to the unit in event of no or low flow
UK based spares and service
Winter cover included as standard
Downloads
Specifications (.pdf)
Manual (.pdf)
Wi-Fi cable removal guide (.pdf)
Case Study: Heating a large volume swimming pool using heat pumps (.pdf)
Specifications
Heating Capacity A24/W26 |
6.12 kW |
Power Input A24/W26 |
0.85 kW |
Current A24/W26 |
3.9A |
COP A24/W26 |
7.22 |
Heating Capacity A15/W26 |
4.7 kW |
Power Input A15/W26 |
0.87 kW |
Current A15/W26 |
4.01A |
COP A15/W26 |
5.40 |
Cooling Capacity A35/W29 |
5.04 kW |
Power Input A35/W29 |
1.09 kW |
Current A35/W29 |
5.12A |
EER A35/W29 |
4.63 kW |
Max. Heating Capacity |
20,882 BTU/hr |
Max. Input Power (Above A35/W29) |
1.6 kW |
Max. Current (Above A35/W29) |
7.27A |
Minimum Fuse (C Type MCB) |
2.8m cable, RCD and UK plug fitted – needs 10A MCB if hardwired |
Voltage |
230V |
Compressor |
GMCC (Midea/Toshiba) |
Refrigerant |
R32 |
Noise Level (10m) |
28db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
826mm x 379mm x 552mm |
Weight |
44Kg |
Nominal flow |
2.63 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Heating Capacity A24/W26 |
8.79 kW |
Power Input A24/W26 |
1.21 kW |
Current A24/W26 |
5.36A |
COP A24/W26 |
7.27 |
Heating Capacity A15/W26 |
6.7 kW |
Power Input A15/W26 |
1.23 kW |
Current A15/W26 |
5.46A |
COP A15/W26 |
5.45 |
Cooling Capacity A35/W29 |
7.19 kW |
Power Input A35/W29 |
1.59 kW |
Current A35/W29 |
7.23A |
EER A35/W29 |
4.51 kW |
Max. Heating Capacity |
29,993 BTU/hr |
Max. Input Power (Above A35/W29) |
2.1 kW |
Max. Current (Above A35/W29) |
9.58A |
Minimum Fuse (C Type MCB) |
2.8m cable, RCD and UK plug fitted – needs 16A MCB if hardwired |
Voltage |
230V |
Compressor |
GMCC (Midea/Toshiba) |
Refrigerant |
R32 |
Noise Level (10m) |
29db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
933mm x 401mm x 657mm |
Weight |
54Kg |
Nominal flow |
3.78 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Heating Capacity A24/W26 |
10.49 kW |
Power Input A24/W26 |
1.38 kW |
Current A24/W26 |
6.26A |
COP A24/W26 |
7.59 |
Heating Capacity A15/W26 |
8.12 kW |
Power Input A15/W26 |
1.41 kW |
Current A15/W26 |
6.41A |
COP A15/W26 |
5.74 |
Cooling Capacity A35/W29 |
8.29 kW |
Power Input A35/W29 |
1.88 kW |
Current A35/W29 |
8.69A |
EER A35/W29 |
4.42 kW |
Max. Heating Capacity |
35,793 BTU/hr |
Max. Input Power (Above A35/W29) |
2.51 kW |
Max. Current (Above A35/W29) |
11.43A |
Minimum Fuse (C Type MCB) |
2.8m cable, RCD and UK plug fitted – needs 16A MCB if hardwired |
Voltage |
230V |
Compressor |
GMCC (Midea/Toshiba) |
Refrigerant |
R32 |
Noise Level (10m) |
29db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
933mm x 401mm x 657mm |
Weight |
58Kg |
Nominal flow |
4.51 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Heating Capacity A24/W26 |
12.08 kW |
Power Input A24/W26 |
1.67 kW |
Current A24/W26 |
7.75A |
COP A24/W26 |
7.25 |
Heating Capacity A15/W26 |
9.48 kW |
Power Input A15/W26 |
1.71 kW |
Current A15/W26 |
7.91A |
COP A15/W26 |
5.55 |
Cooling Capacity A35/W29 |
9.13 kW |
Power Input A35/W29 |
2.12 kW |
Current A35/W29 |
10.31A |
EER A35/W29 |
4.3 kW |
Max. Heating Capacity |
41,219 BTU/hr |
Max. Input Power (Above A35/W29) |
3.15 kW |
Max. Current (Above A35/W29) |
14.37A |
Minimum Fuse (C Type MCB) |
20A |
Voltage |
230V |
Compressor |
GMCC (Midea/Toshiba) |
Refrigerant |
R32 |
Noise Level (10m) |
30db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
933mm x 401mm x 657mm |
Weight |
72Kg |
Nominal flow |
5.19 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Heating Capacity A24/W26 |
15.83 kW |
Power Input A24/W26 |
2.03 kW |
Current A24/W26 |
9.42A |
COP A24/W26 |
7.81 |
Heating Capacity A15/W26 |
12.74 kW |
Power Input A15/W26 |
2.08 kW |
Current A15/W26 |
9.65A |
COP A15/W26 |
6.13 |
Cooling Capacity A35/W29 |
12.38 kW |
Power Input A35/W29 |
2.75 kW |
Current A35/W29 |
12.93A |
EER A35/W29 |
4.51 kW |
Max. Heating Capacity |
54,014 BTU/hr |
Max. Input Power (Above A35/W29) |
3.93 kW |
Max. Current (Above A35/W29) |
17.86A |
Minimum Fuse (C Type MCB) |
25A |
Voltage |
230V |
Compressor |
Mitsubishi |
Refrigerant |
R32 |
Noise Level (10m) |
30db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
1125mm x 470mm x 707mm |
Weight |
75Kg |
Nominal flow |
6.81 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Heating Capacity A24/W26 |
20.14 kW |
Power Input A24/W26 |
2.71 kW |
Current A24/W26 |
12.13A |
COP A24/W26 |
7.42 |
Heating Capacity A15/W26 |
16.55 kW |
Power Input A15/W26 |
2.74 kW |
Current A15/W26 |
12.38A |
COP A15/W26 |
6.04 |
Cooling Capacity A35/W29 |
13.25 kW |
Power Input A35/W29 |
3.31 kW |
Current A35/W29 |
15.91A |
EER A35/W29 |
4.01 kW |
Max. Heating Capacity |
68,720 BTU/hr |
Max. Input Power (Above A35/W29) |
5.82 kW |
Max. Current (Above A35/W29) |
25.3A |
Minimum Fuse (C Type MCB) |
32A |
Voltage |
230V |
Compressor |
GMCC (Midea/Toshiba) |
Refrigerant |
R32 |
Noise Level (10m) |
30db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
1125mm x 470mm x 707mm |
Weight |
78Kg |
Nominal flow |
8.8 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
Heating Capacity A24/W26 |
23.32 kW |
Power Input A24/W26 |
3.74 kW |
Current A24/W26 |
17.01A |
COP A24/W26 |
6.23 |
Heating Capacity A15/W26 |
18.02 kW |
Power Input A15/W26 |
3.49 kW |
Current A15/W26 |
15.86A |
COP A15/W26 |
5.16 |
Cooling Capacity A35/W29 |
14.35 kW |
Power Input A35/W29 |
4.61 kW |
Current A35/W29 |
23.06A |
EER A35/W29 |
3.11 kW |
Max. Heating Capacity |
79,571 BTU/hr |
Max. Input Power (Above A35/W29) |
5.74 kW |
Max. Current (Above A35/W29) |
27.4A |
Minimum Fuse (C Type MCB) |
32A |
Voltage |
230V |
Compressor |
Panasonic |
Refrigerant |
R32 |
Noise Level (10m) |
30db |
Fan Direction |
Horizontal |
Water Connections |
1½ inch |
Dimensions (L x W x H) |
1125mm x 470mm x 707mm |
Weight |
94Kg |
Nominal flow |
10.03 m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
What is COP?
COP stands for Coefficient of Performance
COP is quoted as a number, such as 5.6
For each kW of energy input, 5.6 x kW would be output
The higher the output, the lower the running costs
Installation
If you are thinking of heating your pool you should cover the pool when not in use as 80% of heat loss occurs through surface evaporation, a separate solar or bubble cover is a worthwhile investment if you don’t have an existing cover.
With an above ground pool it is especially important to keep it covered as these pools are not well insulated against heat loss – additional insulation around the sides and bottom of an above-ground pool can help to retain valuable heat – in fact properly insulating your pool can extend your season or even reduce the size of heat pump required.
The 6kW, 8kW and 10kW models come fitted with a 2.8m mains cable, RCD and plug as standard, making them suitable for outdoor sockets, this cable can be removed and the unit can be hardwired if required.
The other heat pumps in the range will require electrical installation by a qualified electrician, the use of a separate MCB (Miniature Circuit Breaker, slow type, C or D curve) is recommended due to increased full load current when the compressor starts up. Full installation guidelines can be found in the user manual including the required fuse rating and cable size.
The electrical connection marked water pump should not to be used for connecting your pump if using a sand filter as flow protection on the heat pump will switch the power off preventing backwash operation (flow is reversed during backwashing).
Water inlet and outlet connections are 1½ inch across the range, the supplied glue socket unions can be easily replaced with optional hose tails for connecting 32mm or 38mm flexible hose.
If the flow rate through your heat pump is too high it can take longer to heat your pool or you may struggle to achieve your desired temperature, our bypass kit for above ground pools optimises the flow rate to maximise the heat transfer to your pool water. A bypass kit also allows the circulation and filtering of pool water without heating and for winterising your heat pump.
The Remora On/Off swimming pool heat pump features built-in Wi-Fi connectivity as standard (requires Wi-Fi network with suitable signal strength) and can be controlled from your smartphone. The ‘Smart Life’ App is available for both iOS and Android smartphones.
Watch our Wi-Fi setup video
The App can be used to view the current pool water temperature, adjust the desired temperature, switch between heating and cooling modes, set the timer and turn the heat pump on and off remotely.
Watch our Wi-Fi extension cable removal video
*Your Remora heat pump will arrive with the Wi-Fi module installed on a 10m extension cable external to the unit, this allows easy setup of the Wi-Fi and also provides the option to place the Wi-Fi module away from the unit if the signal strength is poor. Once the Wi-Fi setup has been completed the module can be placed inside the unit, this is easily achieved by removing the top of the unit and removing the extension cables, please ask us for details – takes less than five minutes to re-position.

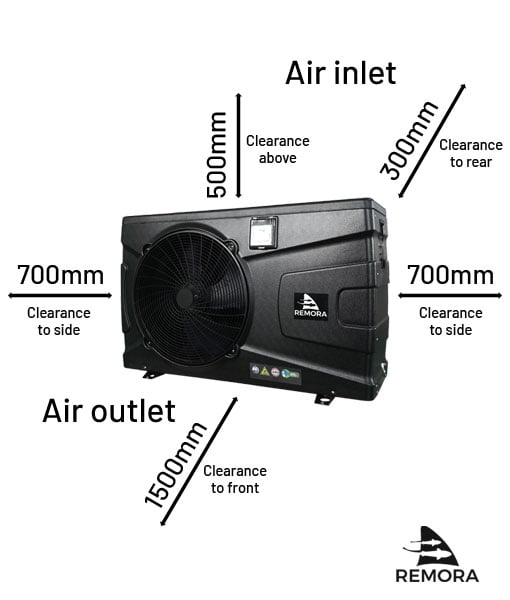

Your Remora On/Off swimming pool heat pump should always be installed outside, restrictions on air flow around a heat pump such as dense vegetation or solid surfaces such as sheds, fences or walls will lead to a drop in efficiency and heating ability, it especially important that cooled air can be properly dispersed away from the unit.
Remora heat pumps are designed to be outside and the ABS case provides protection from the weather, when not in use the supplied winter cover should be used to stop leaves and debris entering the heat pump.
The manufacturer literature may state that the heat pump should be positioned above the waterline, the assumption being that pools are in-ground, therefore the heat pump would sit at ground level.
If you have an above-ground pool please position your heat pump at ground level (therefore below the waterline), there is no need to elevate the heat pump.
Three year parts and labour
Seven years on the compressor and heat exchanger (parts only after year three)
Parts and labour is UK mainland only (Highlands and offshore parts only)
Remora brand is exclusive to Automated Environmental Systems
