Not sure what size heat pump you need? Use our sizing guide or request a free quote
Key features
Full Inverter technology
Ultra silent design, noise is reduced by directing air backwards
Sleek contemporary design
Maximum COP of 16.5 (A26/W26), varies according to model, see individual specifications
Wi-Fi for easy remote control via the dedicated Poolex app, available for both iOS and Android smartphones
Heats and Cools, running modes include Boost mode for fastest heating or cooling, Silent mode for quietest running and Auto mode for day to day maintaining of your set temperature
Warranty 3 years, Compressor 7 years (parts only after year 3) and Titanium coil (corrosion resistance) 15 years (parts only after year 3)
Heating range from 20-40°C / cooling range from 8-28°C
Works down to -7 degrees, suitable for all year round use
R32 Refrigerant
High quality Toshiba compressors
DC Inverter motor with infinitely variable speed
DC inverter fan motor
Twisted Tech Titanium heat exchanger, chlorine and salt resistant
1½ inch female thread / 50mm glue union water connections
Supplied with water connectors, winter cover, condensate hose and rubber isolating feet
Downloads
Specifications (.pdf)
Manual (.pdf)
Case Study: Heating a large volume pool
Product specifications
Max. Heating Capacity A26/W26 |
27kW |
Power Input A26/W26 |
0.27~4.3kW |
COP A26/W26 |
6.3~16.5 |
Max. Heating Capacity A15/W26 |
20.5kW |
Power Input A15/W26 |
0.27-4.3kW |
COP A15/W26 |
4.7~7.8 |
Max. Power Input |
5.3kW |
Minimum Fuse (C Type MCB) |
23A |
Voltage |
230V |
Refrigerant |
R32 |
Noise Level (10m) |
<35dba |
Fan Direction |
Horizontal Rear |
Water Connections |
50mm / 1½ inch fittings |
Dimensions (L x W x H) |
1060mm x 436mm x 822mm |
Weight |
92Kg |
Nominal flow |
9-11m³/h |
Wi-Fi Connectivity |
Built-in* (Requires Smartphone App) |
What is COP?
COP stands for Coefficient of Performance
COP is quoted as a number, such as 16.5
For each kW of energy input, 16.5 x kW would be output
The higher the output, the lower the running costs
Installation
If you are thinking of heating your pool you should cover the pool when not in use as 80% of heat loss occurs through surface evaporation, a separate solar or bubble cover is a worthwhile investment if you don’t have an existing cover.
With an above ground pool it is especially important to keep it covered as these pools are not well insulated against heat loss – additional insulation around the sides and bottom of an above-ground pool can help to retain valuable heat – in fact properly insulating your pool can extend your season or even reduce the size of heat pump required.
All heat pumps in the range will require electrical installation by a qualified electrician, the use of a separate MCB (Miniature Circuit Breaker, slow type, C or D curve) is recommended. Full installation guidelines can be found in the user manual including the required fuse rating and cable size.
The electrical connection marked water pump should not to be used for connecting your pump if using a sand filter as flow protection on the heat pump will switch the power off preventing backwash operation (flow is reversed during backwashing).
Water inlet and outlet connections are 1½ inch / 50mm across the range.
If the flow rate through your heat pump is too high it can take longer to heat your pool or you may struggle to achieve your desired temperature, our bypass kit for above ground pools optimises the flow rate to maximise the heat transfer to your pool water. A bypass kit also allows the circulation and filtering of pool water without heating and for winterising your heat pump.
The SilentJet Fi features built-in Wi-Fi connectivity as standard (requires Wi-Fi network with suitable signal strength) and can be controlled from your smartphone. The ‘Poolex’ App is available for both iOS and Android smartphones.
The App can be used to view the current pool water temperature, adjust the desired temperature, switch between heating and cooling modes, set the timer and turn the heat pump on and off remotely.

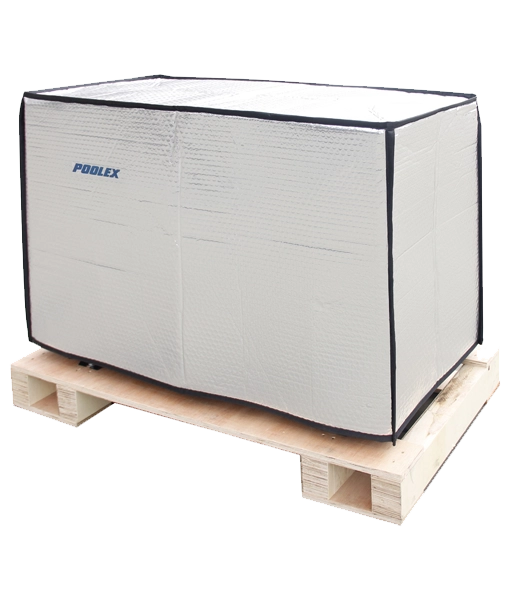

Your SilentJet Fi swimming pool heat pump should always be installed outside, the aluminium case provides necessary protection from the weather, the provided isothermal winter cover can be used to cover the unit when not in use.
The manufacturer literature may state that the heat pump should be positioned above the waterline, the assumption being that pools are in-ground, therefore the heat pump would sit at ground level.
If you have an above-ground pool please position your heat pump at ground level (therefore below the waterline), there is no need to elevate the heat pump.
