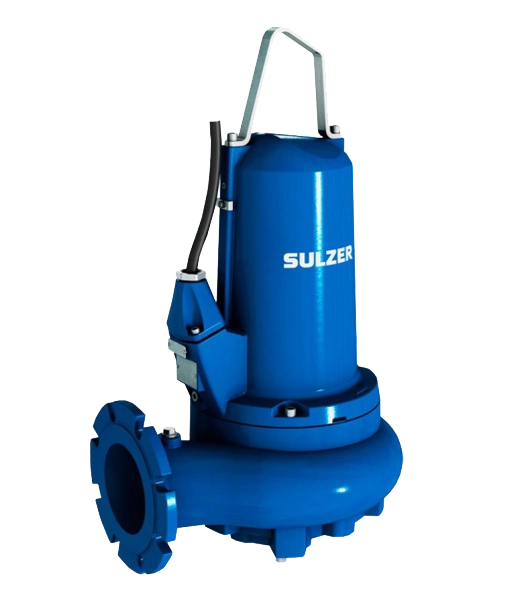

To ensure lower energy consumption, the highly efficient submersible sewage pump type ABS XFP DN80 range of submersible sewage pumps is the perfect choice for standard and network wastewater pumping stations.
Premium Efficiency IE3 motor comes as standard and with the versatile range of vortex impellers, which are designed for maximum solids handling, the submersible pumps vouch for lower energy and maintenance costs. The submersible XFP pumps can be installed submersed or in dry installation.
The ABS XFP DN80 is ATEX explosion-proof as standard, in accordance with international standard ATEX II 2G Ex db IIB T4 Gb.
Standard design in ATEX
Standard IE3 Premium Efficiency motor
Standard NEMA Class A motor temperature rise
Standard motor includes internal cooling
Standard pump can be operated with medium level above volute i.e. no need to submerge motor
Continuous operation also in dry installation
Adjustable bottom plate with intercepted slotting for significant energy savings while maintaining efficient rag handling
Clean water and wastewater
Sewage containing solids and fibrous material
Sewage with sludge and high rag content
Industrial raw water
Premium Efficiency motors in accordance with IEC 60034-30 (IE3)
Water pressure tight, encapsulated, flood-proof motor and the pump section form a compact, robust, modular construction
Continuously rated motor in submerged and non-submerged applications
Anti-wicking cable plug solution (80C-150E), or water-pressure-sealed connection chamber (100G-201G)
Vortex impellers for maximum solids handling
Solid passage min. 75 mm and greater
Explosion-proof version (ATEX, FM and CSA)
Closed cooling system (PE1-2)
Class H (140°C) insulation
Temperature rise according to NEMA Class A
Stainless steel shaft. Designed with high safety factor to prevent fatigue fracture
Maximum allowable temperature of the medium for continuous operation is 40°C
Double silicon carbide (SiC/SiC) mechanical seal
Seal protection against spinning fibres
50,000 hours bearing life on PE1-2 and 100,000 hours on PE3
Lifting hoop
e.g. XFP80C-VX.7-PE15/4-D01*10
XFP – Product range
8 – Discharge outlet DN (cm)
0 – Hydraulic type
C – Volute opening (dia. mm)
VX – Impeller type: CB = Contrablock, VX = vortex
7 – Impeller size
PE – Premium Efficiency
15 – Motor power P2 kW x 10
4 – Number of poles
D01 – Power: D01 = Three phase 400V
*10 – Cable length (m)
