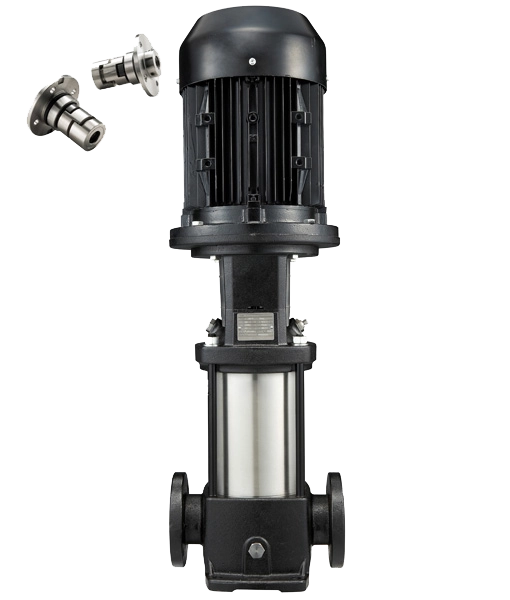

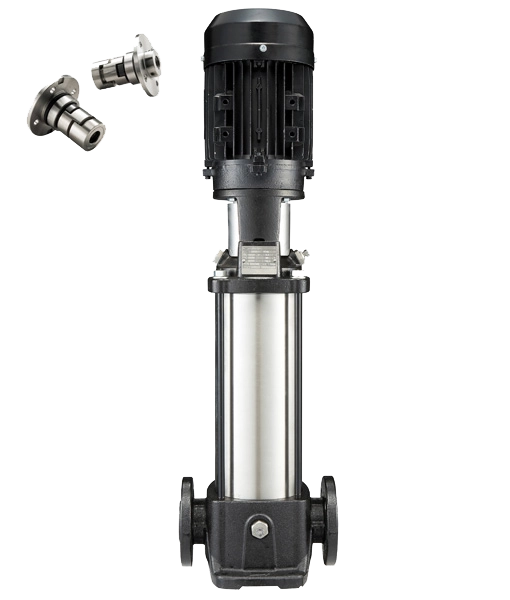

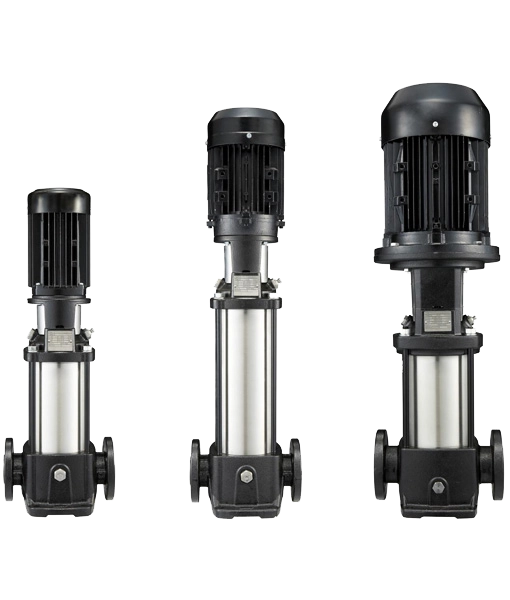

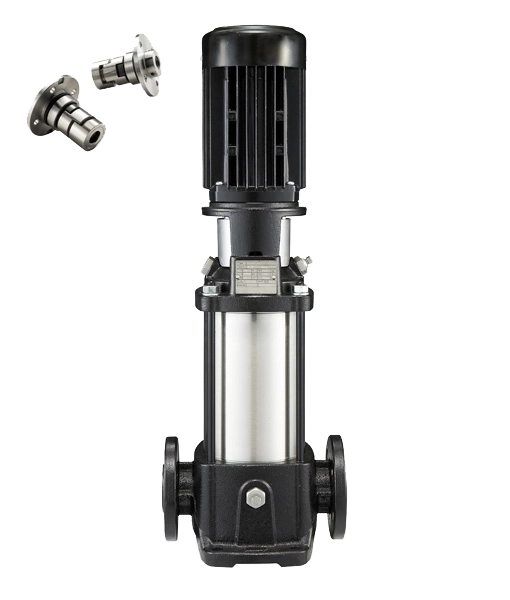

The Saci XV-F 5-20 vertical multi-stage pump is non-self-priming with the suction and drive in line, their high output makes them ideal for use in pressure equipment, industrial installations and applications requiring high pressure with moderate flow.

The XV-F impellers, diffusers, shaft, external cladding and intermediate chambers are entirely in stainless steel AISI 304. The suction drive base and upper body in high strength cast iron. Silicon carbide/EPDM mechanical seal and EPDM rubber (or Teflon) O’Rings. The mechanical seal comes in a new easy to replace cartridge, meaning that the seals can be swapped quickly and easily without having to dismantle the pump.

The motor on the SSV-F is a sealed asynchronous with external ventilation and suitable for continuous operation. The motor has IP 55 protection and class F insulation at 2850 rpm. Single phase versions at 230v include a thermal protector and permanent capacitor.
