Key features
The power of Full Inverter & EVI efficiency right down to -25°C
Up to 7kW of heat output at air temperature of 26°C and water temperature of 26°C
Up to 4.7kW of heat output at air temperature of 15°C, water temperature of 38°C
Up to 3.3kW of heat output at air temperature of -10°C, water temperature of 38°C
Can be installed on any type of spa, hot tub, swim spa or Nordic bath (size dependent)
Operates down to -25°C, automatic de-icing
Reversible hot/cold for ultimate flexibility, can be used to heat or cool
Heating range from 15 – 40°C, cooling range from 4 – 35°C
Wi-Fi for easy remote control via the dedicated Poolex app, available for both iOS and Android smartphones
Plug and play, comes with 4m mains cable and RCD plug (please note RCD plug will not fit outdoor sockets with covers)
32/38mm hose tail water connections, pipes and/or other fittings not supplied
Integrated control of the spa / hot tub heater and/or auxiliary heat pump (relay/s optional)
R32 Refrigerant
Supplied with RCD mains cable, anti-vibration pads, 32/38mm hose tails, 2 x hose clips and winter cover
Three year parts warranty, seven year parts (total) on compressor and 15 year corrosion (total) on Titanium coil
Downloads
Specifications (.pdf)
Spa Brochure (.pdf)
Manual (.pdf)
Specifications
Heating Capacity A26/W26 |
3.3~7kW |
Power consumption |
0.28~1.4kW |
COP |
5~11.9 |
Heating Capacity A15/W38 |
2.8~4.7kW |
Power consumption |
0.67~1.3kW |
COP |
3.7~4.2 |
Heating Capacity A-10/W38 |
2.2~3.3kW |
Power consumption |
1.2~1.5kW |
COP |
1.8~2.1 |
Maximum Power |
1.7kW |
Voltage |
230v |
Noise Level (10m) |
<28dB(A) |
Refrigerant |
R32 |
Water Connections |
1″ male / 32-38mm |
Nominal Flow |
3m³/h |

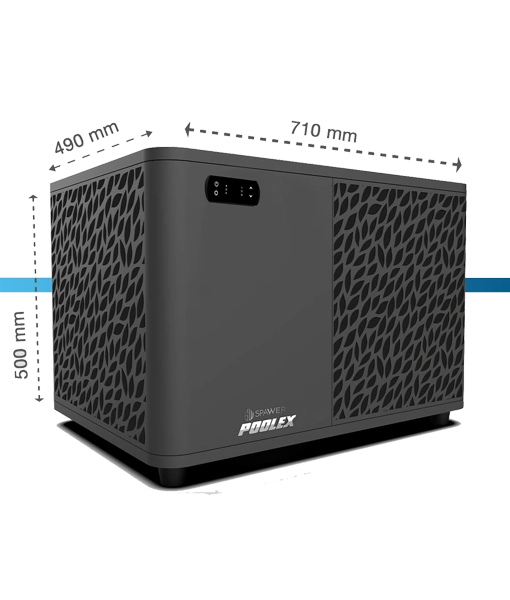

Dimensions (L x W x H) |
710mm x 490mm x 500mm |
What is COP?
COP stands for Coefficient of Performance
COP is quoted as a number, such as 7
For each kW of energy input, 7 x kW would be output
The higher the output, the lower the running costs
Installation
All models are fitted with a 4m mains cable and RCD plug as standard (please note RCD plug will not fit outdoor sockets with covers).
Water inlet and outlet connections are 1 inch / 32-38mm, two hose tails are supplied as standard, however you may require additional hose and fittings to connect to your spa or hot tub. The IceSpa should be connected after your spa’s circulation pump and heater, the use of a bypass kit (normally made up of 2 x T-pieces and 3 x ball valves) is recommended.
Supplied with RCD mains cable, anti-vibration pads, 2 x 1″ / 32-38mm hose tails, 2 x hose clips and winter cover
Your Poolex IceSpa heat pump should always be installed outside, restrictions on air flow around a heat pump such as dense vegetation or solid surfaces such as sheds, fences or walls will lead to a drop in efficiency and heating ability, it especially important that cooled air can be properly dispersed away from the unit.
While the casing provides protection from the weather, the IceSpa should be disconnected and stored in a shed or garage if not in use for extended periods.
