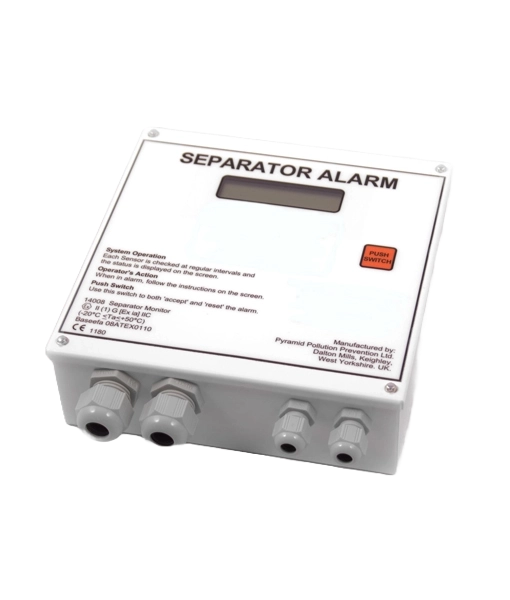

Our mains powered separator alarm can be used to monitor the oil level in oil separators, the control unit is capable of monitoring up to three probe units, displaying their current status via a 2 x 16 display.

The output relay enables this status to be signalled to a remote location or activate a beacon if required.

The Control Unit monitors the condition of the connected probe units by checking their condition every 30 minutes, their current status is displayed on the display located on the front of the unit.

If an alarm condition is detected, a warning message is displayed followed by notification of the alarm condition detected, e.g. *HAZARD ALERT* High Oil Alarm, the output relay becomes de-energised and the internal buzzer is audible.

The unit then gives the option, via the display, to accept/acknowledge the alarm. On doing so, the output relay energises, the buzzer is muted and the display instructs the user to take the appropriate action, e.g. empty the separator.

After the separator has been emptied and refilled with water, the control unit re-scans the probe sensors attached and presuming no alarm condition is detected, ‘All Correct’ will be displayed.

If the push button is pressed before the separator has been emptied, or it has been emptied but not refilled with water, then the control simply scans the probe sensor(s) and reverts to the alarm condition.

Please note the output relay is de-energised on detection of any alarm condition or mains failure.
