Key features

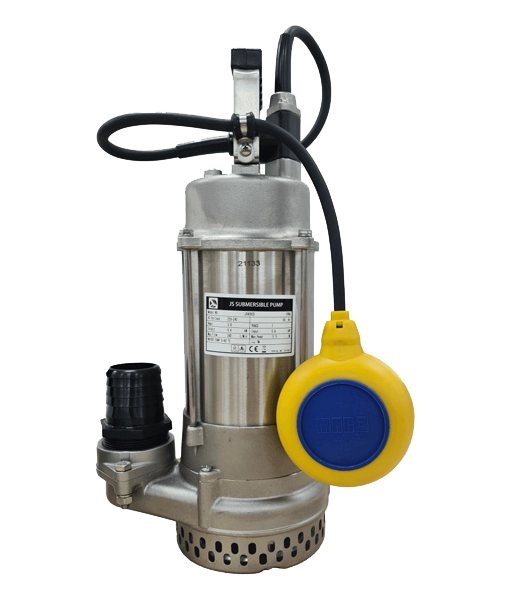

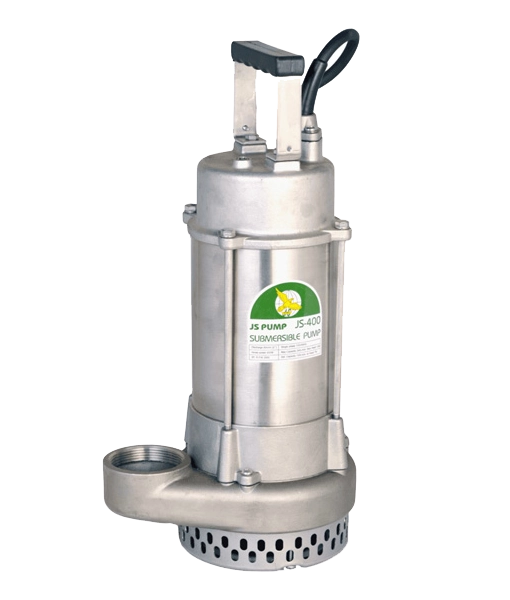

Corrosion resistant 316 stainless steel wastewater/dewatering pumps
All wet parts are made of 316 stainless steel
Elastomers and O-rings are made of FKM
Maximum head 11m, maximum flow rate 250 litres per min
JS-250SS has 1½ inch discharge, JS-400SS has 2 inch discharge
6mm solids handling
Stainless steel guide rail kit available as option
Downloads
Specifications (.pdf)
Product specifications
Model |
JS-250SS |
Operation |
Manual / Auto |
Flowrate Max. |
200 L/min |
Head Max. |
9m |
Impeller Type |
Stainless steel |
Power |
0.25 kW |
Voltage |
230V |
Solids handling |
6mm |
Motor Speed |
3000 RPM |
Discharge Size |
1½ inch |
Pumped Medium |
Clean & waste water, seawater, some chemicals |
Cable Length |
10m |
Construction |
Stainless steel |
Weight |
9 Kg |
Dimensions (H x W x L) |
338mm x 148mm x 200mm |
Model |
JS-400SS |
Operation |
Manual / Auto |
Flowrate Max. |
250 L/min |
Head Max. |
11m |
Impeller Type |
Stainless steel |
Power |
0.4 kW |
Voltage |
230V |
Solids handling |
6mm |
Motor Speed |
3000 RPM |
Discharge Size |
2 inch |
Pumped Medium |
Clean & waste water, seawater, some chemicals |
Cable Length |
10m |
Construction |
Stainless steel |
Weight |
10 Kg |
Dimensions (H x W x L) |
383mm x 148mm x 215mm |
Construction data
Double mechanical seals
Class F motor insulation
Shaft sleeve saves on shaft wear due to abrasives and corrosion
Additional lip seal protection keeps impurities and abrasives away from the mechanical seals
Thermal overload protection guards against high amperage and high temperature
Enhanced cable entry sealing system
