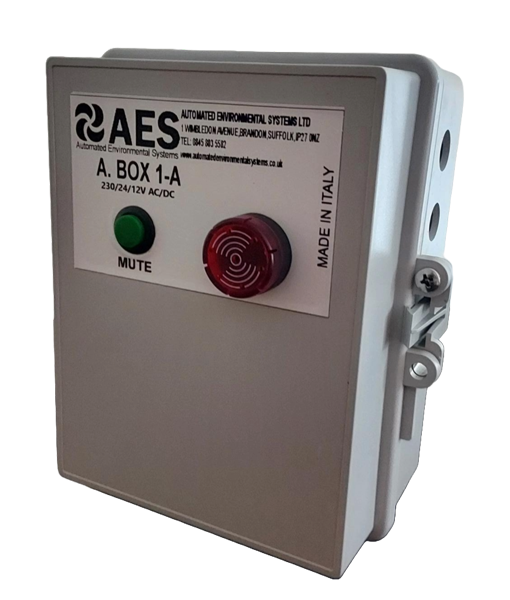

Our high level pump alarm with battery backup connects to a float switch (10m, 20m or 30m BR float switch included) situated in a pumping station, such as our Mini Drain or Mini Foul, and monitors the liquid level.

The high level pump alarm is ideal for installations where there is somebody on site to investigate why the levels have risen and resolve the issue. Applications include packaged pumping stations, sewage treatment plants and septic tanks.

Once the liquid reaches the high level (determined by the position of the float switch) the buzzer and LED warning light in the alarm are triggered (any external beacon or sounder will also activate).

The internal buzzer can be muted in order to stop the noise from the panel causing a disturbance, however, the LED will remain lit until the alarm has cleared.

If an external sounder is connected this will also be muted, however, an external beacon (if connected) will remain lit until the alarm fault is cleared. The alarm panel resets once the fluid level drops.

The internal 12v battery will provide up to 24 hours of backup in the event of a power failure.

The test button tests the internal sounder and LED and any external beacon and sounder if connected.
