Product description
The Evak Hippo submersible sewage pump is a 2-inch full free passage pump with a recessed vortex impeller designed for heavy-duty applications with soiled biological waste waters, sewage and rainwater, for either domestic or commercial use.
The Hippo Series has 2-inch (50mm) pump volute offering solids free-passage and a 2-inch female BSP threaded discharge, flanged connection on the horizontal model to allow the pumps to be fitted with a claw for use on guide rail systems and hose tail connection on the vertical model for free standing use.
The motor housing is made from Stainless Steel and features an EKK Eagle Burgmann double mechanical seal and thermal protection (single phase).
The Hippo Series are available as manual or automatic (with float switch), either 230v or 415v (“T” version) and come complete with a 10-metre mains cable and 2-inch hose tail.

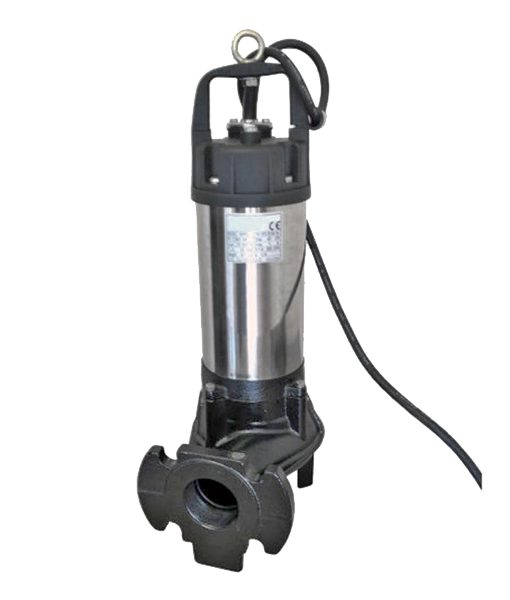

Q identifies the pumps with horizontal flanged outlet and manual operation

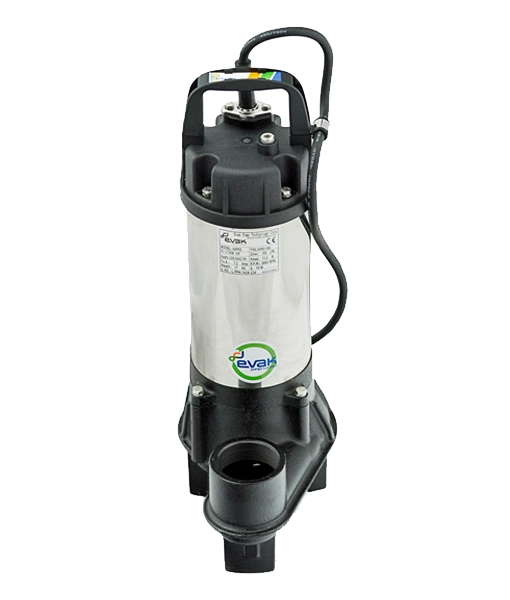

A identifies the pumps with vertical threaded outlet and automatic operation
T identifies the pumps with 3ph / 415v

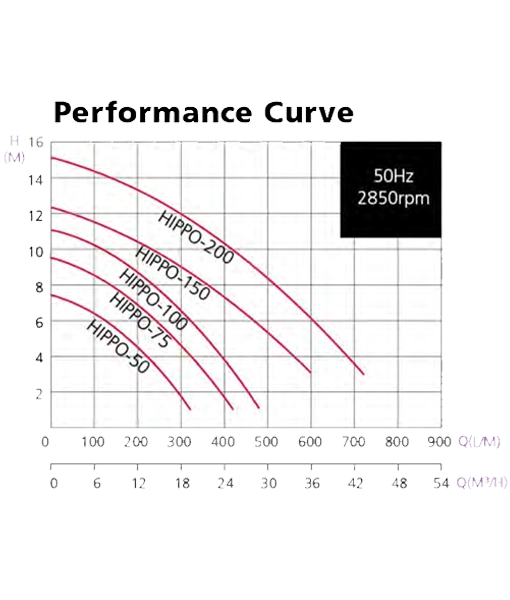

Maximum flow rate 720 litres per minute, maximum head 15.5 metres

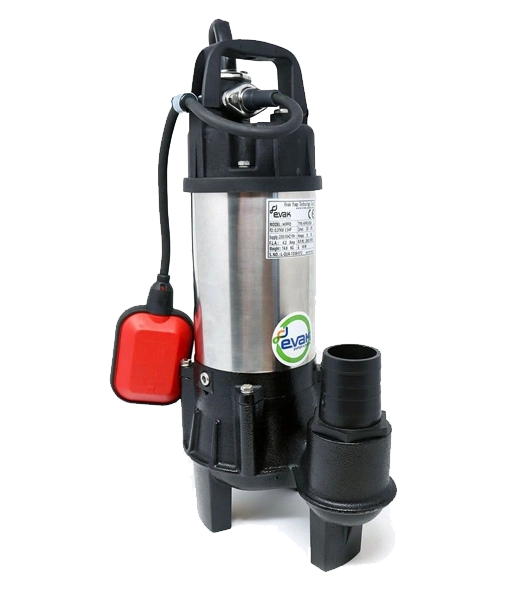

Single phase models available with float switch for automatic operation
For heavy-duty applications with soiled biological waste waters, sewage and rainwater
For both domestic and professional use
Recessed vortex impeller with 50mm solids full free passage
Standard version features a vertical, threaded outlet pump body, horizontal flanged outlet is available on request
Flowrate Max. |
320 L/min |
Head Max. |
7.6m |
Power |
0.37 kW / 0.5 HP |
Voltage |
230v |
Speed |
2850 RPM |
Construction |
Stainless Steel / Cast Iron |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
15.5 Kg |
Dimensions (H x W x L) |
466mm x 164mm x 244mm |
Flowrate Max. |
420 L/min |
Head Max. |
9.7m |
Power |
0.55 kW / 0.75 HP |
Voltage |
230v |
Speed |
2850 RPM |
Construction |
Stainless Steel / Cast Iron |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
16.5 Kg |
Dimensions (H x W x L) |
466mm x 164mm x 244mm |
Flowrate Max. |
480 L/min |
Head Max. |
11.3m |
Power |
0.75 kW / 1.0 HP |
Voltage |
230v |
Speed |
2850 RPM |
Construction |
Stainless Steel / Cast Iron |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
18 Kg |
Dimensions (H x W x L) |
466mm x 164mm x 244mm |
Flowrate Max. |
600 L/min |
Head Max. |
12.5m |
Power |
1.1 kW / 1.5 HP |
Voltage |
230v |
Speed |
2850 RPM |
Construction |
Stainless Steel / Cast Iron |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
26.5 Kg |
Dimensions (H x W x L) |
466mm x 164mm x 244mm |
Flowrate Max. |
720 L/min |
Head Max. |
12.5m |
Power |
1.5 kW / 2.0 HP |
Voltage |
230v |
Speed |
2850 RPM |
Construction |
Stainless Steel / Cast Iron |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
27.5 Kg |
Dimensions (H x W x L) |
466mm x 164mm x 244mm |
Stainless steel motor housing and shaft with rotor
Cast iron impeller and volute
EKK Eagle Burgmann double mechanical seal in Si.Ca
Thermal protector for single phase / overload protector for three phase
Water tight cable gland with epoxy potting
Long life bearings
Liquid temperature 0~40°C
Submersible depth 10m
Motor insulation Class B / protection IP68
