Product description

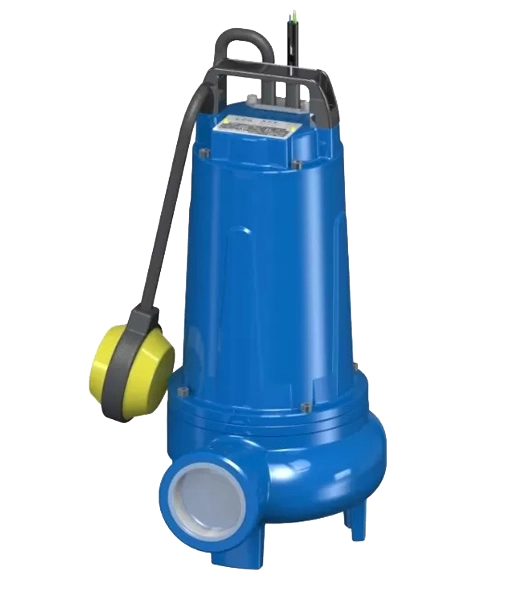

The Energy 6-9 from AF Pumps is a multi-purpose pump that can be used for draining dirty liquids and sewage with suspended solids or fibrous materials up to 50mm. Designed and manufactured in Italy, Energy are hard-wearing and dependable pumps.
The pump can be used for construction sites and for dewatering civil and industrial waste water, emptying out domestic sumps, pumping stations and septic tanks.
Construction throughout is cast iron, the vortex impeller is suitable for handling clear water, waste water and sewage.
The Energy has a maximum flow rate of 700 litres per minute and a maximum head of 17m, the pumps are available in 230v and 400v manual and automatic with attached float switch.
Maximum flow 700 litres per minute, maximum head 17m
Maximum temperature of pumped fluid 40°C
PH of pumped fluid 6-10
1¼ inch to 2 inch discharge
Vortex impeller
Free passage up to 50mm
230v and 400v manual and automatic with attached float switch versions
Optional kit for mounting on guide rail systems
Flowrate Max. |
400 L/min |
Head Max. |
6m |
Impeller Type |
Vortex |
Horse Power |
1.0 HP |
Power |
0.75 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
40mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
15 Kg |
Dimensions (H x W x L) |
345mm x 170mm x 210mm |
Flowrate Max. |
520 L/min |
Head Max. |
12m |
Impeller Type |
Vortex |
Horse Power |
1.5 HP |
Power |
1.1 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
40mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
20 Kg |
Dimensions (H x W x L) |
391mm x 170mm x 210mm |
Flowrate Max. |
600 L/min |
Head Max. |
15m |
Impeller Type |
Vortex |
Horse Power |
2.0 HP |
Power |
1.5 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
40mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
22 Kg |
Dimensions (H x W x L) |
391mm x 170mm x 210mm |
Flowrate Max. |
455 L/min |
Head Max. |
10m |
Impeller Type |
Vortex |
Horse Power |
1.5 HP |
Power |
1.1 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
20 Kg |
Dimensions (H x W x L) |
391mm x 170mm x 210mm |
Flowrate Max. |
540 L/min |
Head Max. |
11m |
Impeller Type |
Vortex |
Horse Power |
2.0 HP |
Power |
1.5 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
22 Kg |
Dimensions (H x W x L) |
391mm x 170mm x 210mm |
Flowrate Max. |
700 L/min |
Head Max. |
17m |
Impeller Type |
Vortex |
Horse Power |
3.0 HP |
Power |
2.2 kW |
Voltage |
400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (T) or Automatic with float (TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
50mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
26 Kg |
Dimensions (H x W x L) |
445mm x 184mm x 232mm |
Motor housing Cast iron GG 25
Shaft stainless steel AISI 420
Electric cable neoprene H07RN8-F oil resistant
Bolt A2 class AISI 304
O’ring and lip seal nitrile
Mechanical seal on silicon carbide + allumina
Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath
Protection IP 68 and insulation class F
