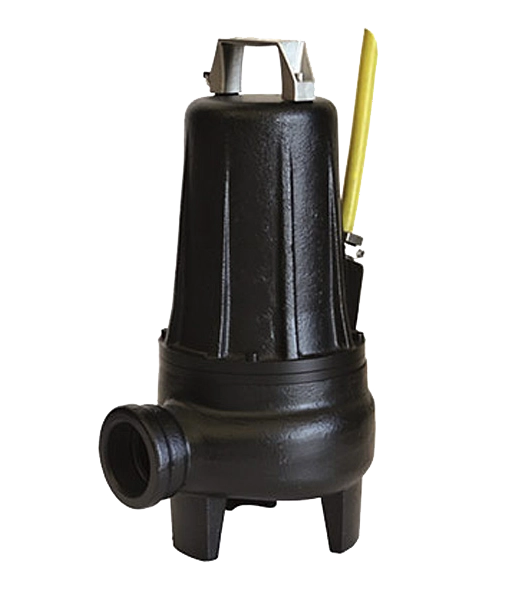

The Dreno Compatta PRO-EX Series submersible vortex pump is an explosion proof 2 inch residential sewage pump with compact size and mechanical characteristics.
The Compatta PRO-EX can be used in potentially explosive environments, thanks to its ATEX approval, II 2 G EX db k IIB T4 X 0°C ≤ Ta ≤ 40°C.
The main components are fabricated in cast iron GG20, a lip seal is fitted to the motor side, and a mechanical seal to the impeller side.
The cable gland is made of stainless steel AISI 316 and certified according to ATEX EN 60079-0, EN 60079-1.
The vortex impeller allows full free passage of solids up to 50mm in diameter.
Key features
The Compatta PRO Series is ideal to pump residential sewage thanks to it’s small size and mechanical characteristics
These ATEX rated pumps can be used in potentially explosive environments
Maximum litres per minute: 660
Maximum head: 17 metres
The cooling of the motor is ensured by the liquid where the pump is submerged
The cable gland is made of stainless steel AISI 316 and certified according to the norm ATEX EN 60079-0, EN 60079-1
The Dreno Compatta PRO-EX Series submersible vortex pump is an explosion proof 2 inch residential sewage pump with compact size and mechanical characteristics.
The Compatta PRO-EX can be used in potentially explosive environments, thanks to its ATEX approval, II 2 G EX db k IIB T4 X 0°C ≤ Ta ≤ 40°C.
The main components are fabricated in cast iron GG20, a lip seal is fitted to the motor side, and a mechanical seal to the impeller side.
The cable gland is made of stainless steel AISI 316 and certified according to ATEX EN 60079-0, EN 60079-1.
The vortex impeller allows full free passage of solids up to 50mm in diameter.
The Dreno Compatta PRO-EX Series submersible vortex pump is an explosion proof 2 inch residential sewage pump with compact size and mechanical characteristics.
The Compatta PRO-EX can be used in potentially explosive environments, thanks to its ATEX approval, II 2 G EX db k IIB T4 X 0°C ≤ Ta ≤ 40°C.
The main components are fabricated in cast iron GG20, a lip seal is fitted to the motor side, and a mechanical seal to the impeller side.
The cable gland is made of stainless steel AISI 316 and certified according to ATEX EN 60079-0, EN 60079-1.
The vortex impeller allows full free passage of solids up to 50mm in diameter.
Key features
The Compatta PRO Series is ideal to pump residential sewage thanks to it’s small size and mechanical characteristics
These ATEX rated pumps can be used in potentially explosive environments
Maximum litres per minute: 660
Maximum head: 17 metres
The cooling of the motor is ensured by the liquid where the pump is submerged
The cable gland is made of stainless steel AISI 316 and certified according to the norm ATEX EN 60079-0, EN 60079-1
