Key features

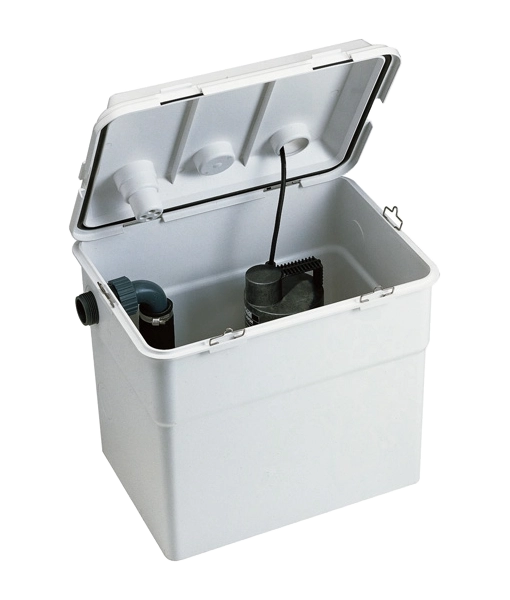

Lifting station designed for baths, sinks, showers and washing machines – wastewater only, not sewage
30 litre technopolymer tank

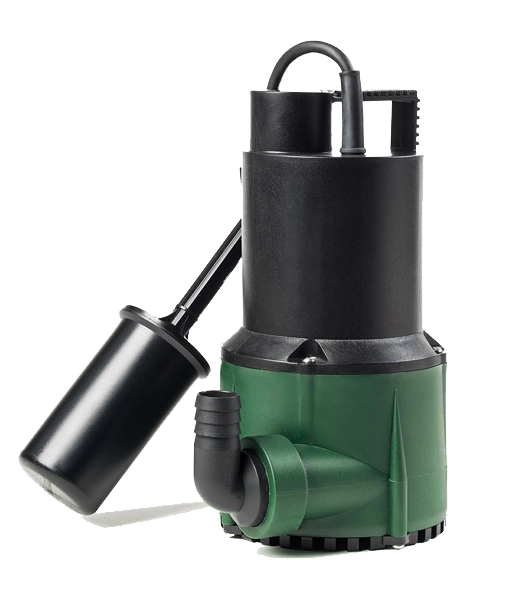

NOVA 300 pump with technopolymer casing and integrated float switch
Max pumping height 6.9 metres, maximum flow rate 7.2m³/h
Maximum temperature of pumped liquid 50°C
Four inputs (30-40mm), discharge (32mm) and venting (30-40mm)
Supplied ready for installation with NOVA 300 pump with fittings with non-return valve and connection kit, shower float kit and 5m mains cable
Please remember, wipes and sanitary items block pipes and pumps – please bin them
Downloads
Specifications
Model
|
NOVA 300 |
Operation
|
Automatic (integral float) |
Flowrate Max.
|
7.2 m³/h |
Head Max.
|
6.9m |
Horse Power
|
0.3 HP |
Power
|
0.22 kW |
Voltage
|
230V |
Water Level Min.
|
13mm |
Water Temp Max.
|
50°C |
Discharge Size
|
1¼ inch |
Free Passage
|
10mm |
Pumped Medium
|
Water & small particles up to 10mm |
Cable Length
|
5m |
Construction
|
Technopolymer |
Weight
|
9.2 Kg |
Dimensions (H x W x L)
|
360mm x 409mm x 311mm |
Technical data
Operating range: from 1 to 7.2 m³/h with head up to 6.9 metres
Liquid temperature range: + 50°C / + 90°C for a maximum time of 3 minutes
Pumped liquid: wastewater without solid and/or fibrous matter (not sewage)
Protection class of the motor and the pump: IP68
Motor isolation rating: F
