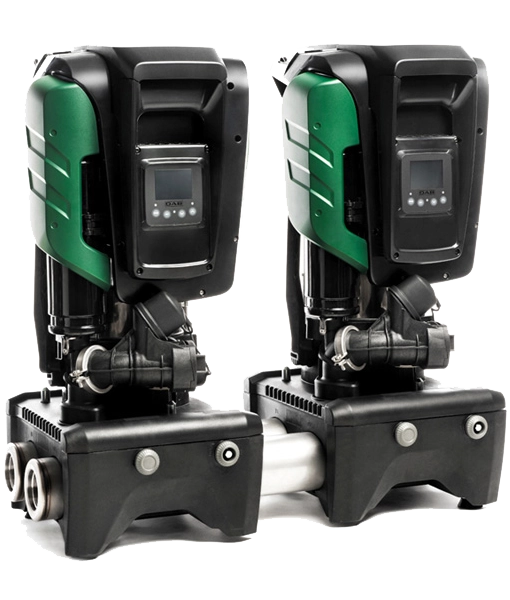

The ESYBOX MAX Twin is a modular, compact and integrated WRAS approved solution for water pressure boosting in commercial and multi-apartment applications, with a maximum head of 113m and a maximum combined flow rate of 580 litres per minute.
The ESYBOX MAX Twin consists of two self-priming multi-stage pumps with Inverter driven water cooled permanent magnet motor, electronics for control and management, pressure and flow sensors, a high-resolution LCD display, non-return valve and an integrated two-litre expansion vessel.

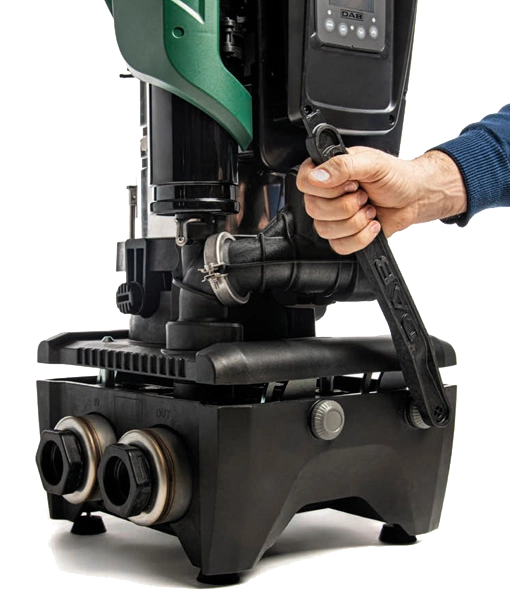

The included ESYDOCK MAX Twin dock, with 2 inch water connections, allows fast and easy installation of the pumps, also included are a pillar and a single or three phase control panel. Please note: the ESYBOX MAX Twin is supplied as separate components designed for assembly on site.
COMPLETE SET includes: 2 x ESYBOX MAX + TWIN ESYDOCK + PILLAR + CONTROL PANEL
The variable speed motor automatically adjusts the flow according to the demand providing constant water pressure and maximising running efficiency without surges, the new permanent magnet motor is 20% more energy efficient than the standard ESYBOX.
The ESYBOX MAX offers quiet operation compared to traditional booster sets thanks to the water-cooled motor, protective casings in sound-deadening ABS, vibration-damping feet and the inverter electronics that modulate the motor revolutions according to the set pressure (set point) and the flow requested.

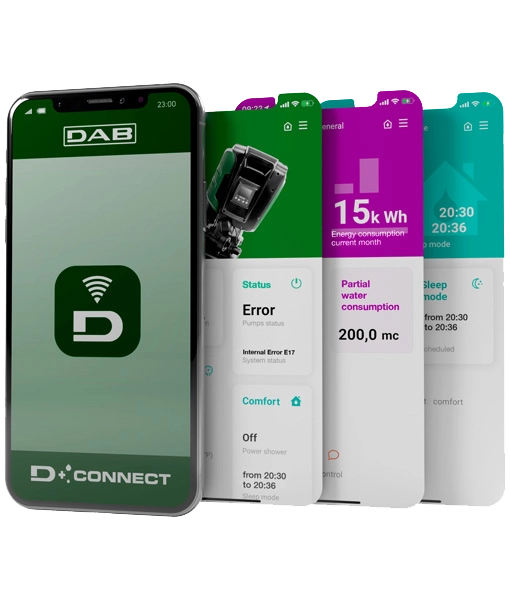

Built-in Wi-Fi module and DConnect makes monitoring DAB products easy and intuitive. You can use your smartphone to connect directly with the pump using the simple interface. It will automatically detect the language, time and unit of measurement at the installation site, which will save you time during the first set up of the system. All adjustments are possible remotely allowing total control (requires subscription).
Please note: the ESYBOX MAX cannot be connected directly to the mains water supply, it must be connected to a suitable break tank.
Key features
Easy selection – select from two different hydraulic models depending on the height of the building
The ESYBOX MAX Twin comes supplied with the ESYDOCK MAX Twin – install the ESYDOCK MAX Twin into your pipework system and simply plug your pumps in
Easy to move and install – on-site assembly, if you have narrow stairways and corridors you can choose to assemble your booster on-site which will only require moving smaller lighter boxes into the location
DConnect – use your smartphone to connect directly with the pump using the simple interface. It will automatically detect the language, time and unit of measurement at the installation site, which will save you time during the first set up of the system
Easy to maintain – connect to the pumps from anywhere, just log on through your PC or smartphone to the DConnect app. All you need to do is check the stored data and change any setting with just one click (requires subscription)
Energy saving – the integrated inverter optimises performance, and the DConnect app allows you to manage the pressure required at any given moment
Optional ESY I/O – allows ESYBOX MAX to interface with external input/output devices (eg: float switch, pressure switch, remote alarm) and with BMS (Building Management System)
Optional Control Panel – Electrical connection panels for two or three pumps complete with magnetothermic switches for powering multi-pump units, can be installed on the wall or directly to ESYBOX MAX units using the dedicated pillar kit
*Please note that the minimum equipment needed for each configuration is the required number of ESYBOX MAX pumps, corresponding ESYDOCK MAX dock, pillar and control box – either single phase (M) or three phase (T) – joint kit is supplied with quad pump setup. **Optional, dependent on the installation or connectivity requirements.
Thanks to DConnect, DAB’s cloud service (subscription required), you can predict problems remotely and act quickly, without having to go to the installation site. Once critical issues have been identified, the ESYDOCK MAX base allows for quick on-site pump replacement.
Constant pressure range: 1-12 bar (3 bar by default)
Motor protection range: IPX5
Motor insulation class: F
Impeller material: Technopolymer
Single phase power input: 208-240V 50/60Hz
Three phase power input: 380-480V 50/60Hz
Type of installation: Fixed in vertical position
Type of pumped liquid: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Certification: WRAS, ACS, NSF61 ( are pending approval )
Break tanks
Break tanks are used to ensure that the necessary amount of water is available to supply a system during periods of normal use and peak demand.
UK water regulations limit the water flow drawn from the mains supply to a maximum of 12 litres per minute, therefore you are not permitted to install a booster sets or other pump directly onto an incoming mains water supply if the flow will exceed 12 litres per minute.
Break tanks are therefore a necessity in all DAB ESYBOX MAX installations.
Product Description
The ESYBOX MAX Twin is a modular, compact and integrated WRAS approved solution for water pressure boosting in commercial and multi-apartment applications, with a maximum head of 113m and a maximum combined flow rate of 580 litres per minute.
The ESYBOX MAX Twin consists of two self-priming multi-stage pumps with Inverter driven water cooled permanent magnet motor, electronics for control and management, pressure and flow sensors, a high-resolution LCD display, non-return valve and an integrated two-litre expansion vessel.
The included ESYDOCK MAX Twin dock, with 2 inch water connections, allows fast and easy installation of the pumps, also included are a pillar and a single or three phase control panel. Please note: the ESYBOX MAX Twin is supplied as separate components designed for assembly on site.
COMPLETE SET includes: 2 x ESYBOX MAX + TWIN ESYDOCK + PILLAR + CONTROL PANEL
The variable speed motor automatically adjusts the flow according to the demand providing constant water pressure and maximising running efficiency without surges, the new permanent magnet motor is 20% more energy efficient than the standard ESYBOX.
The ESYBOX MAX offers quiet operation compared to traditional booster sets thanks to the water-cooled motor, protective casings in sound-deadening ABS, vibration-damping feet and the inverter electronics that modulate the motor revolutions according to the set pressure (set point) and the flow requested.
Built-in Wi-Fi module and DConnect makes monitoring DAB products easy and intuitive. You can use your smartphone to connect directly with the pump using the simple interface. It will automatically detect the language, time and unit of measurement at the installation site, which will save you time during the first set up of the system. All adjustments are possible remotely allowing total control (requires subscription).
Please note: the ESYBOX MAX cannot be connected directly to the mains water supply, it must be connected to a suitable break tank.
DAB ESYBOX MAX Twin Electronic Cold Water Booster Set
Product description
The ESYBOX MAX Twin is a modular, compact and integrated WRAS approved solution for water pressure boosting in commercial and multi-apartment applications, with a maximum head of 113m and a maximum combined flow rate of 580 litres per minute.
The ESYBOX MAX Twin consists of two self-priming multi-stage pumps with Inverter driven water cooled permanent magnet motor, electronics for control and management, pressure and flow sensors, a high-resolution LCD display, non-return valve and an integrated two-litre expansion vessel.
The included ESYDOCK MAX Twin dock, with 2 inch water connections, allows fast and easy installation of the pumps, also included are a pillar and a single or three phase control panel. Please note: the ESYBOX MAX Twin is supplied as separate components designed for assembly on site.
COMPLETE SET includes: 2 x ESYBOX MAX + TWIN ESYDOCK + PILLAR + CONTROL PANEL
The variable speed motor automatically adjusts the flow according to the demand providing constant water pressure and maximising running efficiency without surges, the new permanent magnet motor is 20% more energy efficient than the standard ESYBOX.
The ESYBOX MAX offers quiet operation compared to traditional booster sets thanks to the water-cooled motor, protective casings in sound-deadening ABS, vibration-damping feet and the inverter electronics that modulate the motor revolutions according to the set pressure (set point) and the flow requested.
Built-in Wi-Fi module and DConnect makes monitoring DAB products easy and intuitive. You can use your smartphone to connect directly with the pump using the simple interface. It will automatically detect the language, time and unit of measurement at the installation site, which will save you time during the first set up of the system. All adjustments are possible remotely allowing total control (requires subscription).
Please note: the ESYBOX MAX cannot be connected directly to the mains water supply, it must be connected to a suitable break tank.
Key features
Easy selection – select from two different hydraulic models depending on the height of the building
The ESYBOX MAX Twin comes supplied with the ESYDOCK MAX Twin – install the ESYDOCK MAX Twin into your pipework system and simply plug your pumps in
Easy to move and install – on-site assembly, if you have narrow stairways and corridors you can choose to assemble your booster on-site which will only require moving smaller lighter boxes into the location
DConnect – use your smartphone to connect directly with the pump using the simple interface. It will automatically detect the language, time and unit of measurement at the installation site, which will save you time during the first set up of the system
Easy to maintain – connect to the pumps from anywhere, just log on through your PC or smartphone to the DConnect app. All you need to do is check the stored data and change any setting with just one click (requires subscription)
Energy saving – the integrated inverter optimises performance, and the DConnect app allows you to manage the pressure required at any given moment
Optional ESY I/O – allows ESYBOX MAX to interface with external input/output devices (eg: float switch, pressure switch, remote alarm) and with BMS (Building Management System)
Optional Control Panel – Electrical connection panels for two or three pumps complete with magnetothermic switches for powering multi-pump units, can be installed on the wall or directly to ESYBOX MAX units using the dedicated pillar kit
*Please note that the minimum equipment needed for each configuration is the required number of ESYBOX MAX pumps, corresponding ESYDOCK MAX dock, pillar and control box – either single phase (M) or three phase (T) – joint kit is supplied with quad pump setup. **Optional, dependent on the installation or connectivity requirements.
Thanks to DConnect, DAB’s cloud service (subscription required), you can predict problems remotely and act quickly, without having to go to the installation site. Once critical issues have been identified, the ESYDOCK MAX base allows for quick on-site pump replacement.
Constant pressure range: 1-12 bar (3 bar by default)
Motor protection range: IPX5
Motor insulation class: F
Impeller material: Technopolymer
Single phase power input: 208-240V 50/60Hz
Three phase power input: 380-480V 50/60Hz
Type of installation: Fixed in vertical position
Type of pumped liquid: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Certification: WRAS, ACS, NSF61 ( are pending approval )
Break tanks
Break tanks are used to ensure that the necessary amount of water is available to supply a system during periods of normal use and peak demand.
UK water regulations limit the water flow drawn from the mains supply to a maximum of 12 litres per minute, therefore you are not permitted to install a booster sets or other pump directly onto an incoming mains water supply if the flow will exceed 12 litres per minute.
Break tanks are therefore a necessity in all DAB ESYBOX MAX installations.
