Key features
Easy installation, the single phase version has an internal capacitor and thermal motor-protection so it is not necessary to connect the pump to a control panel
Double mechanical seal separated by an oil chamber for maximum motor protection
Heavy duty over size motor shaft
Stainless steel water proof capsule to protect the motor
Motor cooling by pumped liquid
Discharge outlet 1¼ inch
Maximum immersion depth 20m
Maximum allowable amount of sand 50 gr/m³
Maximum solids size up to 2mm
Liquid temperature range -5°C to 40°C
Downloads
Specifications (.pdf)
Specifications

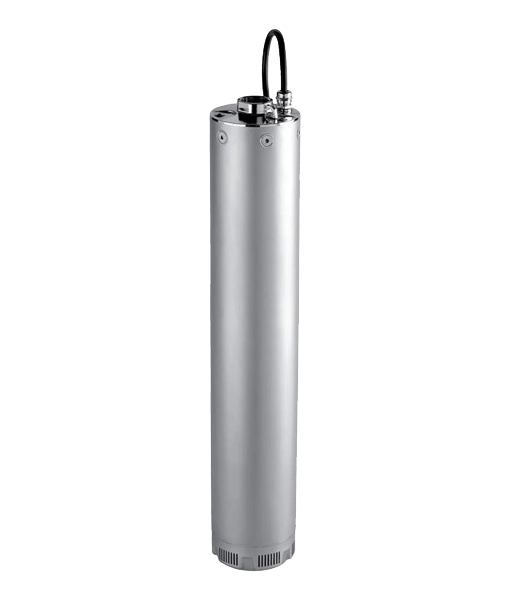

Model |
9/3 |
Operation |
Manual / Auto |
Flowrate Max. |
233 L/min |
Head Max. |
31.5m |
Impeller Type |
Multistage (3) |
Power (P2 nominal) |
1.1 kW |
Voltage |
230V / 400V |
Water Depth Max. |
20m |
Discharge Size |
1¼ inch |
Pumped Medium |
Clean water |
Construction |
Stainless steel |
Weight |
18.5 Kg |
Dimensions (L) |
504mm |

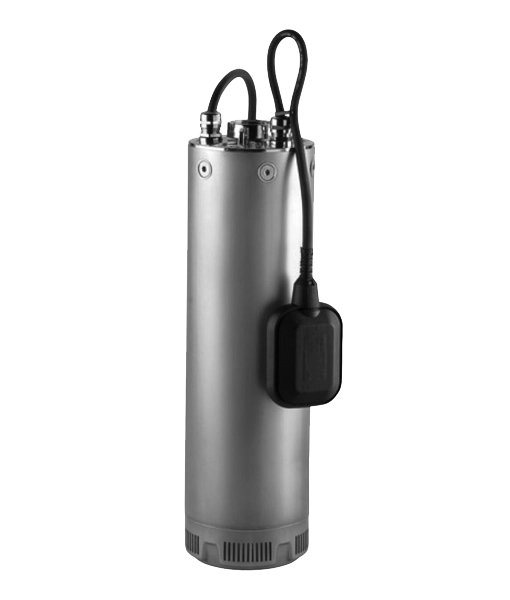

Model |
9/5 |
Operation |
Auto |
Flowrate Max. |
233 L/min |
Head Max. |
52.5m |
Impeller Type |
Multistage (5) |
Power (P2 nominal) |
2.2 kW |
Voltage |
230V |
Water Depth Max. |
20m |
Discharge Size |
1¼ inch |
Pumped Medium |
Clean water |
Construction |
Stainless steel |
Weight |
23.5 Kg |
Dimensions (L) |
614mm |
Construction data
Discharge head: Nickel plated pressed brass alloy
Outer case: Stainless steel
Suction strainer: Stainless steel
Motor housing: Stainless steel
Covers/flanges motor casing: Stainless steel
Pump shaft: Stainless steel
Diffuser/s: Stainless steel
Impeller/s with spacers: Stainless steel
Upper mechanical seal: Ceramic/Carbon/NBR
Lower mechanical seal: Ceramic/Carbon/NBR
Screws and washers: Stainless steel
