Key features
Ultra compact plug and play heat pumps that are designed for use with Spas and hot tubs
Up to 3kW of heat output at air temperature of 26°C and water temperature of 26°C
Up to 1.8kW of heat output at air temperature of 15°C, water temperature of 38°C
Up to 0.9kW of output at air temperature of 15°C, water temperature of 5°C (chiller function)
Can be installed on any spa, hot tub, or Nordic bath
Operates down to -7°C, automatic de-icing
Reversible hot/cold for ultimate flexibility, can be used to heat, cool, or chill
Heating range from 10 – 40°C, cooling range from 8 – 28°C (new Chiller function will reduce the temperature by up to an additional 3°C)
Wi-Fi for easy remote control via the dedicated Poolex app, available for both iOS and Android smartphones
Plug and play – comes with mains cable and RCD plug
32/38mm hose tail water connections, pipes, and other fittings not supplied
Integrated control of the spa / hot tub heater (relay provided)
R32 Refrigerant

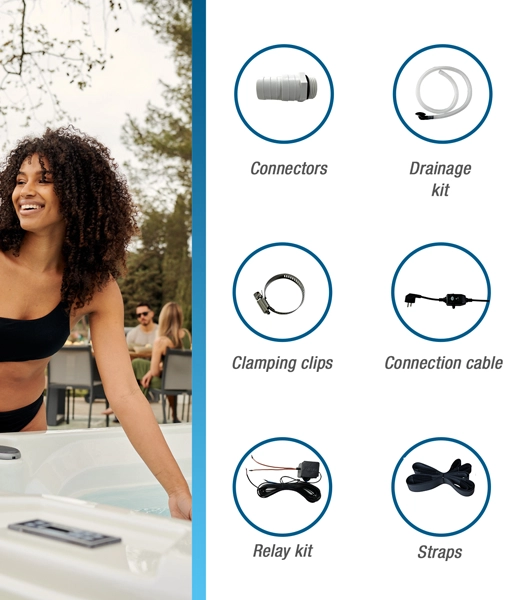

Supplied with RCD mains cable, anti-vibration pads, 32/38mm hose tails, 2 x hose clips and 230v relay
Two-year parts warranty, five-year parts (total) on compressor, and 10-year corrosion (total) on Titanium coil
Downloads
Specifications (.pdf)
Spa Brochure (.pdf)
Manual (.pdf)
Specifications
Heating Capacity A26/W26 |
3kW |
COP |
5.15 |
Heating Capacity A15/W38 |
1.8kW |
COP |
2.77 |
Heating Capacity A15/W5 |
0.9kW |
COP |
1.9 |
Input Power (max.) |
0.7kW |
Input Current |
3.11A |
Voltage |
230v |
Noise Level (10m) |
<30dB(A) |
Refrigerant |
R32 |
Water Connections |
32/38mm |
Nominal Flow |
1.3 m³/h |
Dimensions (L x W x H) |
440mm x 350mm x 430mm |
Weight |
26Kg |
What is COP?
COP stands for Coefficient of Performance
COP is quoted as a number, such as 5
For each kW of energy input, 5 x kW would be output
The higher the output, the lower the running costs
Installation
All models are fitted with a mains cable and a European two-pin RCD plug as standard.
Water inlet and outlet connections are 32/38mm, two 32/38mm hose tails are supplied as standard, however you may require additional hose and fittings to connect to your spa or hot tub. The O’Spa should be connected after your spa’s circulation pump and heater, the use of a bypass kit (normally made up of 2 x T-pieces and 3 x ball valves) is recommended to connect the O’Spa.
Supplied with RCD mains cable, anti-vibration pads, 2 x 32/38mm hose tails, 2 x hose clips and 230v relay

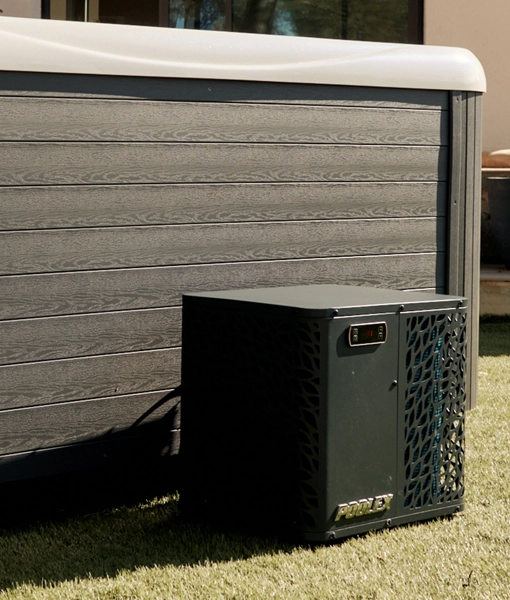

Your Poolex O’Spa heat pump should always be installed outside, restrictions on air flow around a heat pump such as dense vegetation or solid surfaces such as sheds, fences or walls will lead to a drop in efficiency and heating ability, it especially important that cooled air can be properly dispersed away from the unit.
While the casing provides protection from the weather, the O’Spa should be disconnected and stored in a shed or garage if not in use for extended periods.
