Product description

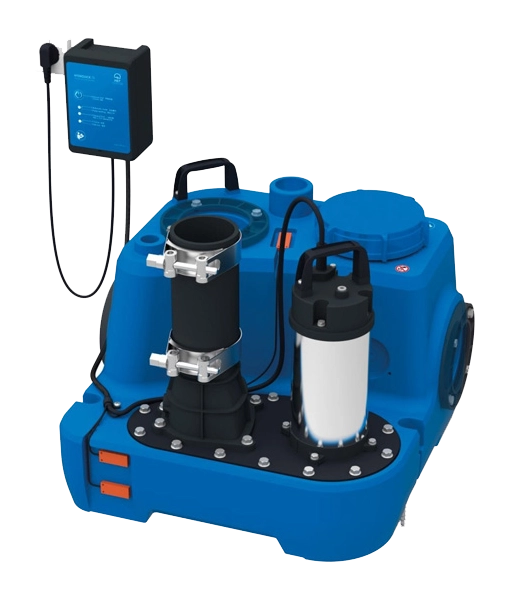

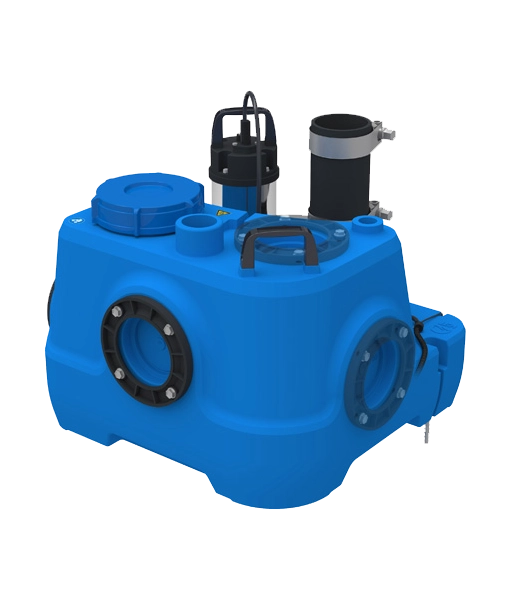

The Hydrojack 75 is an automatic lifting station, this compact unit offers ‘plug and play’ installation, all the tools required for connection come provided with the unit.

Suitable for use where the removal of wastewater is required below the backwash level such as bathrooms or kitchens at basement level, the Hydrojack 75 can safely collect and pump away up to 75 litres of domestic wastewater without odours or the risk of flooding.

Connection to existing pipework is simplified with the provision of four DN100 inlets (reducers down to DN40 included), the Hydrojack 75 also features DN65 venting and a front mounted vertical DN80 discharge.

The Hydrojack 75 is constructed from high-quality components, the development and production is based in Germany in full compliance with the DIN EN 12050-1.

Key features

Hygienic collection and pumping of domestic wastewater from kitchens, bathrooms and cellars

Suitable for wastewater and sewage

Flood proof, with built-in non return valve

Unit is ready for ‘Plug and Play’ all tools needed for installation are supplied with the unit

Connection options for a range of inlets and quick connection to the discharge line

Automatic and manual emptying

External sensors do not have contact with wastewater for reliable and problem free automatic emptying

Odour and flood proof

High quality construction in full compliance with standard DIN EN 12050-1

Adaptor for inlet sizes from DN40 to DN100 supplied with the unit

Four metre mains cable with control unit

Attractive design which suits installation where the unit is visible

Downloads

Specifications

Volume of tank
 75L
Inflow height horizontal
 2 x 180mm | 1 x 225mm
Inflow height vertical
 1 x 385mm
Solid passage
 50mm
Venting
 DN65 – 75mm
Dimension of inlet
 DN100 – 110mm
Discharge
 DN80 – 90mm
Mains connection
 230V 50Hz
Motor power
 P2 Approx. 750W
Nominal speed
 2850 RPM
Maximum current
 6.7A
Power cable length
 4.0m
Control unit cable length
 4.0m
Tank Use
 Above Ground
Unit dimensions (HxWxL)
 495mm x 550mm x 550mm

Technical data

PE tank with long operating life and resistant to chemicals

A Minimum of residues formation thanks to a floor form designed for efficient emptying

Can also be placed on uneven surfaces

Resistant to floating and easy installation by use of anchor bolts

Ergonomic transport and fitted with lifting handles for easy manoeuvrability

Optimised tank dimensions for tight locations and for easy transport and installation

Useful volume up to 75 litres

Sewage pump with vortex impeller of solid cast iron

Free solids passage 50 mm

Can be run dry

Mechanical seal with oil reservoir which can be checked for correct functioning

Stainless steel motor housing

Robust bearings

Product Description

The Hydrojack 75 is an automatic lifting station, this compact unit offers ‘plug and play’ installation, all the tools required for connection come provided with the unit.

Suitable for use where the removal of wastewater is required below the backwash level such as bathrooms or kitchens at basement level, the Hydrojack 75 can safely collect and pump away up to 75 litres of domestic wastewater without odours or the risk of flooding.

Connection to existing pipework is simplified with the provision of four DN100 inlets (reducers down to DN40 included), the Hydrojack 75 also features DN65 venting and a front mounted vertical DN80 discharge.

The Hydrojack 75 is constructed from high-quality components, the development and production is based in Germany in full compliance with the DIN EN 12050-1.

We Are Rated Excellent on TrustPilot
Hydrojack 75 Sewage Lifting Station
Hydrojack 75 Sewage Lifting Station
Hydrojack 75 Sewage Lifting Station
Hydrojack 75 Sewage Lifting Station

Hydrojack 75 Sewage Lifting Station

Hydrojack 75 Sewage Lifting Station
Hydrojack 75 Sewage Lifting Station
Hydrojack 75 Sewage Lifting Station
Hydrojack 75 Sewage Lifting Station

Product description

The Hydrojack 75 is an automatic lifting station, this compact unit offers ‘plug and play’ installation, all the tools required for connection come provided with the unit.

Suitable for use where the removal of wastewater is required below the backwash level such as bathrooms or kitchens at basement level, the Hydrojack 75 can safely collect and pump away up to 75 litres of domestic wastewater without odours or the risk of flooding.

Connection to existing pipework is simplified with the provision of four DN100 inlets (reducers down to DN40 included), the Hydrojack 75 also features DN65 venting and a front mounted vertical DN80 discharge.

The Hydrojack 75 is constructed from high-quality components, the development and production is based in Germany in full compliance with the DIN EN 12050-1.

Key features

Hygienic collection and pumping of domestic wastewater from kitchens, bathrooms and cellars

Suitable for wastewater and sewage

Flood proof, with built-in non return valve

Unit is ready for ‘Plug and Play’ all tools needed for installation are supplied with the unit

Connection options for a range of inlets and quick connection to the discharge line

Automatic and manual emptying

External sensors do not have contact with wastewater for reliable and problem free automatic emptying

Odour and flood proof

High quality construction in full compliance with standard DIN EN 12050-1

Adaptor for inlet sizes from DN40 to DN100 supplied with the unit

Four metre mains cable with control unit

Attractive design which suits installation where the unit is visible

Downloads

Specifications

Volume of tank
 75L
Inflow height horizontal
 2 x 180mm | 1 x 225mm
Inflow height vertical
 1 x 385mm
Solid passage
 50mm
Venting
 DN65 – 75mm
Dimension of inlet
 DN100 – 110mm
Discharge
 DN80 – 90mm
Mains connection
 230V 50Hz
Motor power
 P2 Approx. 750W
Nominal speed
 2850 RPM
Maximum current
 6.7A
Power cable length
 4.0m
Control unit cable length
 4.0m
Tank Use
 Above Ground
Unit dimensions (HxWxL)
 495mm x 550mm x 550mm

Technical data

PE tank with long operating life and resistant to chemicals

A Minimum of residues formation thanks to a floor form designed for efficient emptying

Can also be placed on uneven surfaces

Resistant to floating and easy installation by use of anchor bolts

Ergonomic transport and fitted with lifting handles for easy manoeuvrability

Optimised tank dimensions for tight locations and for easy transport and installation

Useful volume up to 75 litres

Sewage pump with vortex impeller of solid cast iron

Free solids passage 50 mm

Can be run dry

Mechanical seal with oil reservoir which can be checked for correct functioning

Stainless steel motor housing

Robust bearings

Hydrojack 75 Sewage Lifting Station

We Are Rated Excellent on TrustPilot

Hydrojack 75 Sewage Lifting Station

£2,040 £1,700 + vat

Not in stock Please contact us for lead time
