Product description

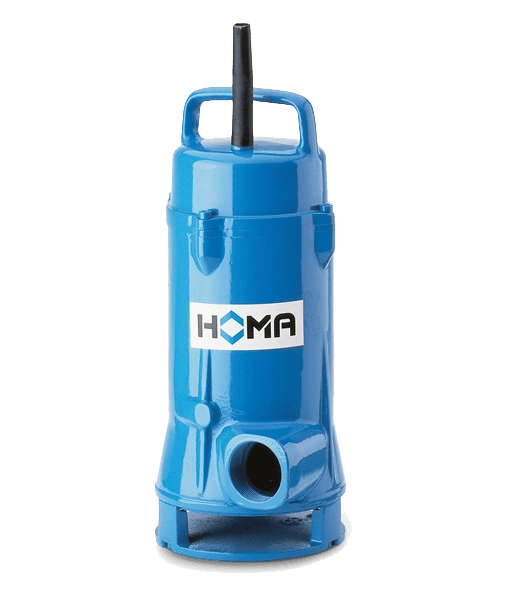

The Homa high temperature submersible pump is suitable for pumping clear water or drainage water with high temperatures.
With the advantage of thick wall casting for dissipation of heat and Viton seals, they are the ideal solution to pump condensate, clear water or drainage water up to 90°C. The installation can be permanent or the pumps are transportable.
Models 307 and 313 have an open multi-channel impeller and are suitable for pumping clear water or drainage water with up to 10mm spherical clearance, model 328V has a vortex impeller and provides up to 28mm spherical clearance, making these ideal pumps for laundries, car washes, food industries and many other applications.
The H300 series are single stage centrifugal pumps with a female threaded BSP 1½ inch horizontal discharge , available with float switches for automatic operation and either as single-phase 230v (W) or three-phase 400v (D).
Ideal solution to pump condensate, clear water or drainage water up to 90°C.
Thick wall casting for dissipation of heat and viton seals
H307 and H313 up to 10mm spherical clearance, H328V with vortex impeller (V) up to 28mm spherical clearance
Suitable for laundries, car washes, food industries and many other applications
DIN EN 12050-2: Conformity and design approved and controlled by LGA, certificate No. 0220119
Models with float switch (A) control for automatic pump operation
Flowrate Max. |
330 L/min |
Head Max. |
10m |
Power output |
0.5 kW |
Voltage |
230v (W) / 400v (D) |
Speed |
2900 RPM |
Construction |
Cast iron |
Discharge Size |
1½ inch |
Cable |
10m (5m auto versions) |
Pumped Medium |
Clean & Waste Water |
Free Passage |
10mm |
Weight |
18 Kg |
Dimensions (H x W x L) |
352mm x 151mm x 155mm |
Flowrate Max. |
390 L/min (W) / 420 L/min (D) |
Head Max. |
12.5m |
Power output |
0.7 kW (W) / 0.9 kW (D) |
Voltage |
230v (W) / 400v (D) |
Speed |
2900 RPM |
Construction |
Cast iron |
Discharge Size |
1½ inch |
Cable |
10m (5m auto versions) |
Pumped Medium |
Clean & Waste Water |
Free Passage |
10mm |
Weight |
20 Kg |
Dimensions (H x W x L) |
352mm x 151mm x 155mm |
Flowrate Max. |
390 L/min |
Head Max. |
10m |
Power output |
0.9 kW |
Voltage |
230v (W) / 400v (D) |
Speed |
2900 RPM |
Construction |
Cast iron |
Discharge Size |
1½ inch |
Cable |
10m (5m auto versions) |
Pumped Medium |
Clean & Waste Water |
Free Passage |
28mm |
Weight |
20 Kg |
Dimensions (H x W x L) |
355mm x 150mm x 155mm |
Fully submersible, pressure tight electric motor, oil filled
Insulation class F
Degree of protection IP 68
H307, H313: open multichannel impeller, H328V: vortex impeller
Cable: 5 or 10 metres of BI HF-J 4 x 1,5 (Model WA: BI HF-J 5 x 1,5)
Shaft/Bearing: Large diameter stainless steel rotor shaft, pre-lubricated bearings
Seals: Combination of mechanical seal (silicon-carbide) and lip-seal (Viton)
