Key features
Single brush scrubs away dirt and bacteria
Cleans floor, walls and waterline
Suitable for small in-ground and framed above ground pools (not splasher style) up to 10m in length
Lightweight and easy to handle
Effective, easy-to-use ultra fine filtration system
Filter basket with four panels – dual level filtration 110 microns and 30 microns
Efficient dirt collection – Collects fine and rough debris

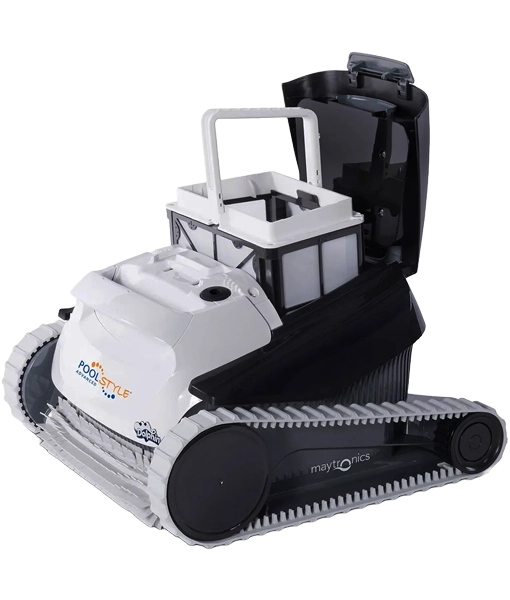

Top-access filtration system – easy to remove and clean

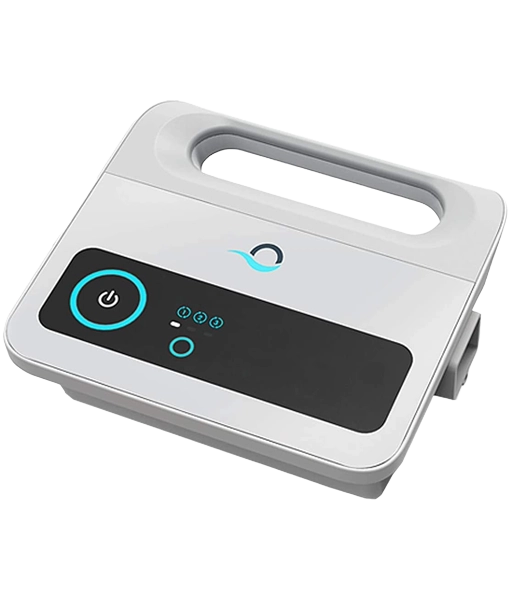

Weekly timer function on the power supply (fast mode and delayed operation buttons do not apply to this model)
Fast, debris-free water release
24 months warranty on all parts (excluding brushes & filters)
Important: the power supply includes buttons for fast mode and delayed operation, these features are NOT enabled for the Poolstyle Advanced and the buttons will not function, the supplied documentation refers to these features, however they are marked as ‘optional’ and are enabled according to the individual model specifications
Downloads
Specifications
Pool Size
|
Up to 10m length |
Surfaces
|
Floor, walls & waterline
|
Cycle Time
|
2 hours |
Cable
|
15 metres |
Brushes
|
1 x PVC |
Weight
|
6.6Kg |
Motor Voltage
|
24VDC |
Filtration
|
Easy-clean net canister |
Power Supply
|
30VDC, IP54 |
Suction Rate
|
16m³ per hour |
Warranty
|
2 years |
A note about algae
Robot pool cleaners will not fully remove algae from your pool
Cleaners may not climb algae covered surfaces
Algae should always be treated and removed manually before using a robot cleaner
Used regularly a robot cleaner can help to prevent the regrowth of algae alongside filtration and correct water chemistry
Will the Poolstyle Advanced work in my pool?
Maximum pool length
|
10m |
In-ground pools
|
Yes |
Above-ground framed pools
|
Yes |
Wooden pools
|
Yes |
Liner pools
|
Yes |
Rough tiled pools
|
Yes |
Fibreglass pools
|
Yes |
Coated concrete pools
|
Yes |
Stainless steel pools
|
No |
Smooth tiled pools
|
No |
Technical data
Low voltage 24v motor (transformer included) – low energy consumption
Automatic shut off at end of cycle time
Motor protection mechanism in case of over load and out of water
Motor protection IP68
Chlorine Max 4 ppm / NaCI Max 5000 ppm
pH 7.0 – 7.8
Temperature 6 – 34°C
Minimum depth 0.8m / Maximum depth 5.0m
