Product description

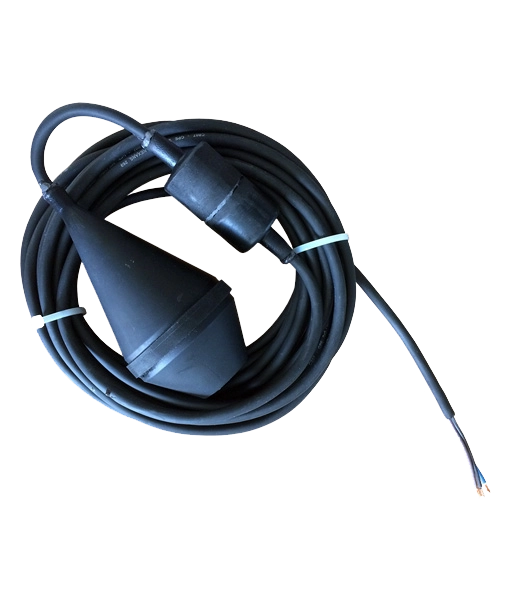

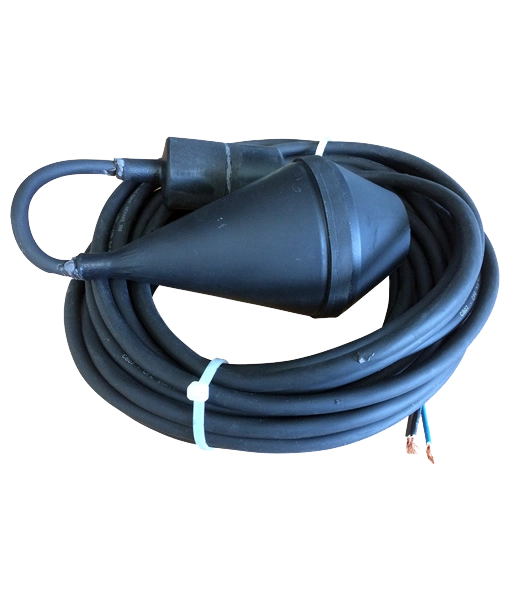

Our IWF float switch, coated in synthetic rubber for superior chemical resistance, is designed for long-lasting, trouble-free operation in demanding environments. The internally weighted design ensures simple installation and reliable performance.
The float switch is a non-mercury version suitable for eco-friendly applications, a micro-switch and rolling ball arrangement eliminates all heavy metals.

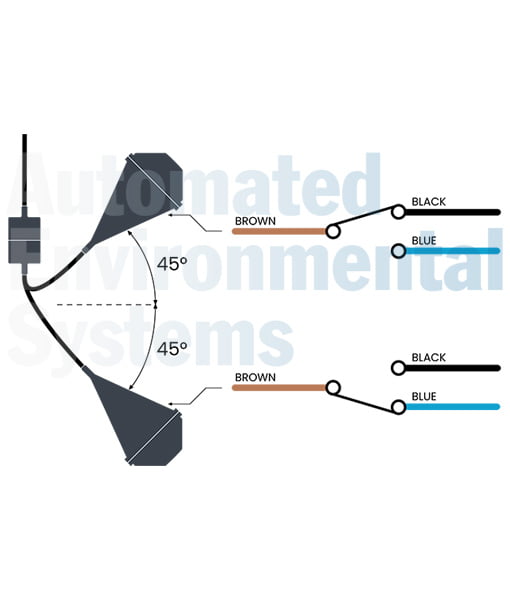

The float chamber is totally sealed within closed cell polyurethane foam, with a single pole double throw action. The outer walls of the chamber are coated in Hypalon* CSP Synthetic rubber.
The 10m, 20m, 30m or 50m three-core cable is sheathed in CPE synthetic rubber, and the cable weight (fixed approximately 120mm from the float chamber) is also coated in Hypalon*.
*Hypalon Du Pont de Nemours, Wilmington, Delaware
Key features
High chemical resistance – Hypalon* CSP Synthetic rubber coating
10, 20, 30 or 50 metre cable – CPE synthetic rubber

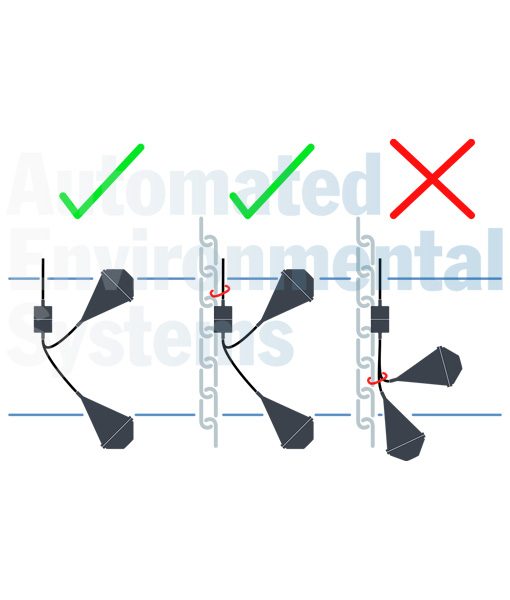

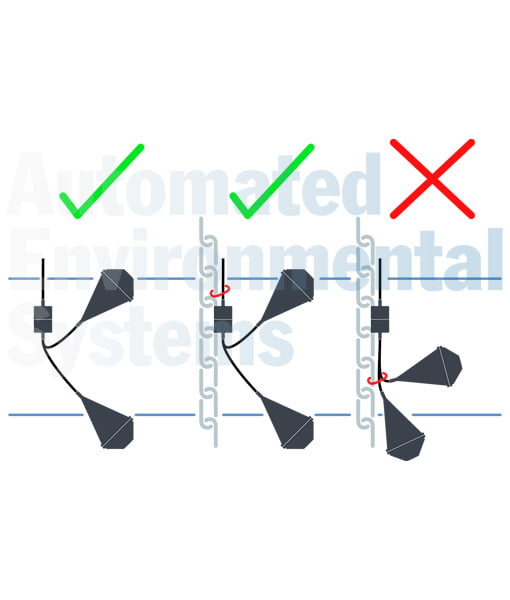

45° operating angle
330mm minimum operating depth, 280mm minimum swing distance
Maximum depth of 20m
Maximum working temperature 70°C
Can be used on single and three-phase systems
