Contrablock Plus
The ABS XFP features a Contrablock Plus impeller that has been specially engineered to handle tough requirements, such as reduced water consumption and higher rag and solid content.
The Contrablock Plus is a highly reliable and efficient impeller design with single-vane models to ensure exceptional blockage resistance.
Optimum design on impeller efficiency and solids handling, based on extensive Computational Fluid Dynamics (CFD) research and testing, which has led to market leading efficiency, without compromising on solid size and rag handling.
Key features

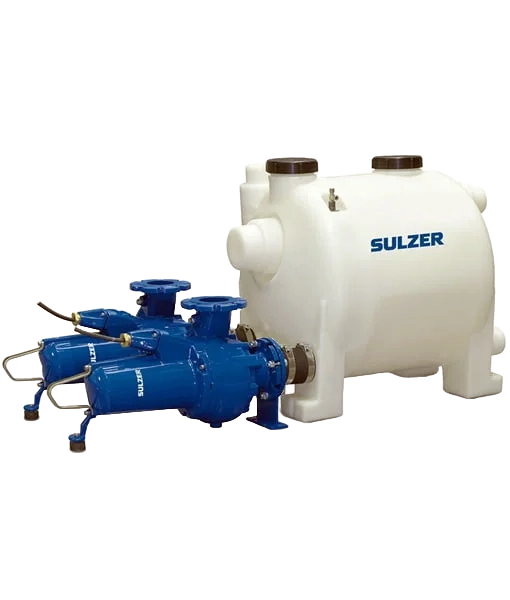

Compact, robust, synthetic (PE) collection tank, capacity 348 litres
Easily transported and installed with compact dimensions that allow passage through a standard door opening
Problem-free pumping of sewage and wastewater containing fecal matter from areas below the sewer level
Pneumatic level control pipe for automatic level control
Includes two XFP pumps designed for continuous running (S1) without additional cooling, and featuring a Premium Efficiency motor
Pumps feature blockage-free Contrablock Plus impellers, seal monitoring, and temperature control
Supplied as standard with pumps, mounting kits, control panel and pneumatic level control pipe
Downloads
Construction data
Pump discharge DN 80 or DN 100 with flange connection
Four outflow port options (DN 100) for fitting with two selected pumps from the XFP range
Six inflow port options: four horizontal (1 x DN 100, 2 x DN 150, 1 x DN 200) and two vertical (1 x DN 100, 1 x DN 150)
Also features one connection (DN 70) for a vent pipe and two connections (Ø 50 mm) for connection of a hand membrane pump)
Control panel featuring bubble compressor and mains-independent alarm with built-in backup battery
Maximum allowable temperature of medium is 40°C, or up to 60°C intermittent (max. 5 minutes).
Corrosion-resistant, gas and odour-tight polyethylene tank, in accordance with EN 12050-1
Maximum capacity 45m³/h
Maximum head 18m
