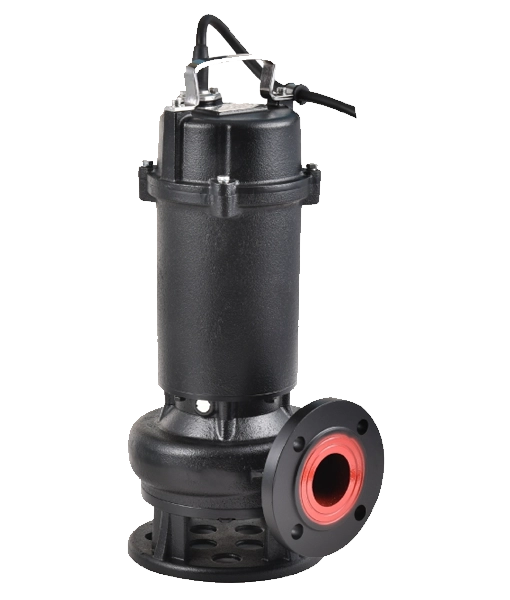

Highlights
High Temperature: Safely handles hot liquids up to 80°C, doubling the 40°C threshold of standard models
Non-clogging: Uniquely shaped double-helix impeller pumps solids and sewage without jamming or clogging
Corrosion Resistant: Chrome-plated shaft provides exceptional durability against abrasive wear and chemical corrosion in harsh environments
Heavy-Duty: Cast iron construction with enhanced motor insulation, heat-resistant rubber seals, upgraded bearings, and advanced lubrication
Flexible Installation: Highly adaptable to any site, supporting temporary flexible hoses, permanent rigid pipelines, or convenient guide rail couplings
Documents
80B25 Specifications (.pdf)
B-HT Range (.pdf)
Specifications
Flowrate Max. |
1466 L/min |
Head Max. |
28m |
Rated Flowrate |
750 L/min |
Rated Head |
20m |
Impeller Type |
Double-Helix |
Power P2 |
5.5kW |
Voltage |
380V |
Immersion Depth Max. |
10m |
Operation |
Manual |
Motor Speed |
3000 RPM |
Discharge Size |
DN80 PN6 |
Free Passage |
80mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
8m |
Weight |
77.5Kg |
Dimensions (H x W x L) |
687mm x 253mm x 305mm |
Max operating temperature 80°C
pH of liquid 6 to 10
Density of liquid 1.05g/cm³
Max immersion depth 10m
Insulation Class H
Protection Class IP68
Cabtyre cable – Chloroprene rubber
Elastomeres – FPM(FKM)
Mechanical seal – Carbon-Ceramic / SiC-SiC
Lubricant – Turbine oil, ISO VG46
Bearing – Grease for high temperature use
Drive shaft & bolts – AISI 304
Housing & impeller – cast iron
