Product code: 52091 Category: Tag: View more products from...

About this product

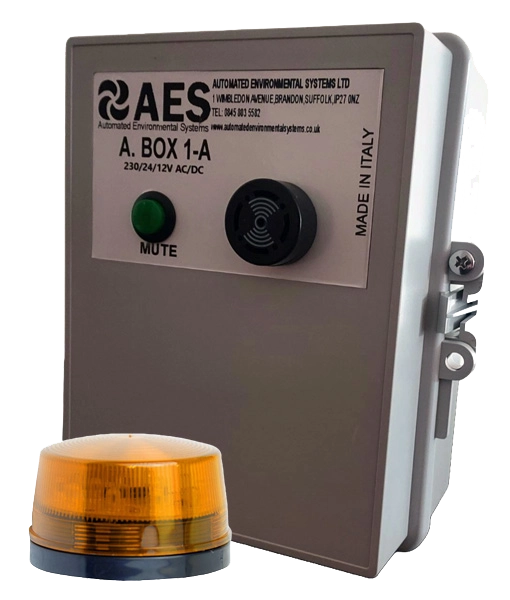

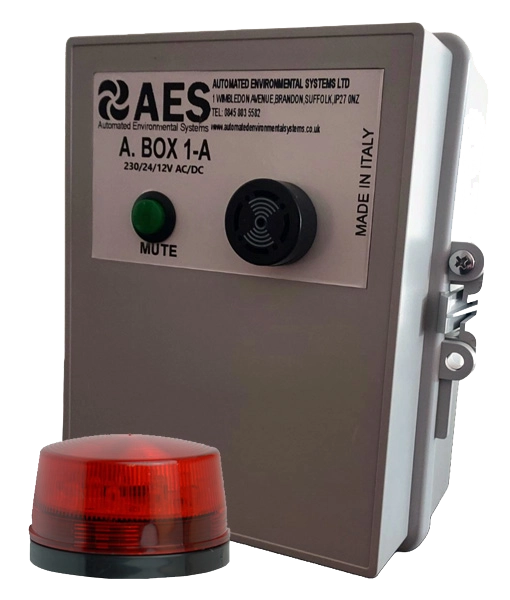

Our high level pump alarm with external beacon (Red or Amber) connects to the supplied float switch (10m, 20m or 30m BR float switch) situated in a pumping station, such as our Mini Drain or Mini Foul, and monitors the liquid level.

A high level pump alarm is ideal for installations where there is somebody on site to investigate why the levels have risen and resolve the issue. Applications include packaged pumping stations, sewage treatment plants and septic tanks.

Once the liquid reaches the high level (determined by the position of the float switch) the sounder and flashing LED warning light in the alarm are triggered (the external beacon will also activate).

The internal sounder can be muted in order to stop the noise from the panel causing a disturbance, however, the flashing LED will remain lit until the alarm has cleared. The supplied red LED external beacon will remain lit until the alarm fault is cleared.

The alarm panel resets once the fluid level drops, the mute button can be used to reset the alarm with a second press. The high level alarm comes complete with a 10m, 20m or 30m BR type float switch.

The alarm box features pre-drilled holes for connecting mains power, the float switch and an external sounder/beacon if required. Also supplied are three grommets for the cable holes.

Key features

200mm x 155mm x 95mm (L x H x D) box in grey ABS plastic

Supplied with 10m, 20m or 30m float switch

Integral flashing red LED and buzzer

≥80 decibels /10cm / Brightness: 40 ~ 60cd/m²

Connection for float switch, probe, pressure switch or other

Supplied with external red or amber LED beacon (12v)

Input voltage 230v AC / 12v or 24v DC

Downloads
