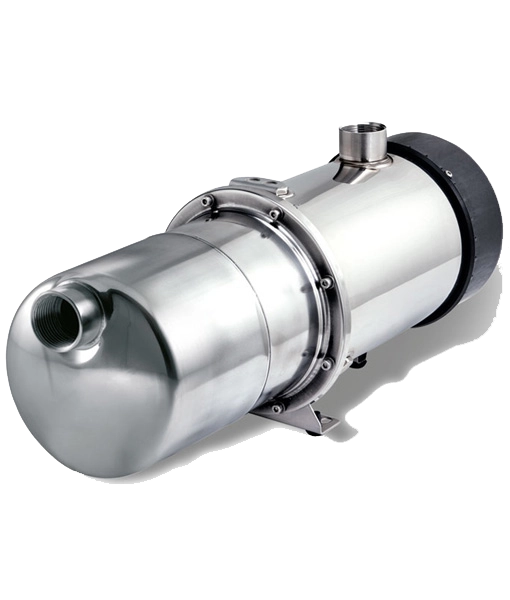

The SteelPumps X-AMO/MO B Series is a self-priming multistage centrifugal jet pump featuring Up/Down technology for submersed, surface or underground installation.
Manual (MO) version without pressure control, and automatic (AMO) version with pressure control, anti-blocking system and dry run protection with automatic restart.
Please note the AMO/MO 80B and 100B are no longer available
Suitable for water boosting and circulation, rainwater harvesting systems, feeding and emptying tanks, garden and domestic use and irrigation and sprinklers
Manual (MO) or automatic (AMO) versions
Surface, or submerged installation
Suitable for clean water, free from solid and abrasive substances
Automatic version (AMO) includes pressure control, anti-blocking system and dry run protection with automatic restart
Maximum depth 5m
10m mains cable with UK three-pin plug
Model |
X-AMO 120 |
Flowrate Max. |
100 L/min |
Head Max. |
52m |
Power (P2 nominal) |
0.9 kW |
Voltage |
230V |
Water Temp Max. |
37°C |
Discharge Size |
1¼ inch |
Pumped Medium |
Clean water |
Weight |
17 Kg |
Dimensions (H x W x L) |
226mm x 200mm x 447mm |
Pump body: stainless steel AISI 304
Motor body: stainless steel AISI 304
Rear cap: Polypropylene
Shaft: stainless steel AISI 420
Diffuser, Impeller and Venturi Jet: Noryl
Mechanical Seal: Silicon Carbide
Mechanical seal lubricated by a special oil chamber
A2 Stainless steel bolts
NBR70 O-ring
Protection class: IP 68
Tropicalised circuit board in compliance with the RoHS directive
Pumped liquid temperature: +2°C to +37°C
