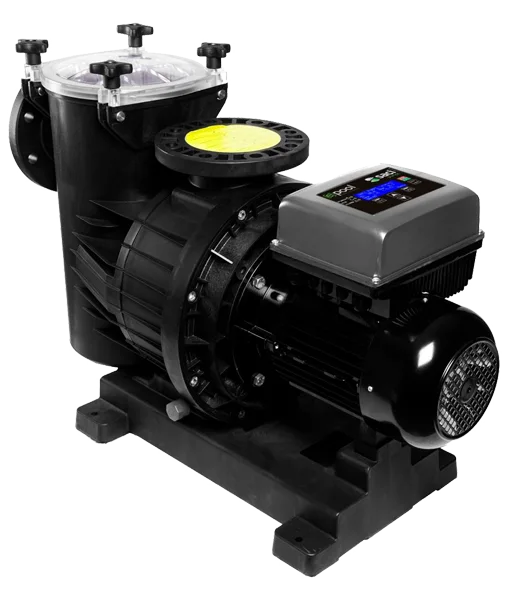

Saci E-Magnus Three Phase Variable Speed Swimming Pool Pump

£3,624
add-on is available

On backorder, call for lead time

Rated Excellent onFive stars
Recommended add-ons
Saci E-Magnus Three Phase Variable Speed Swimming Pool Pump
PVC DN100 Counter-flange Kit for Saci Pumps
This item: Saci E-Magnus Three Phase Variable Speed Swimming Pool Pump Price range: £3,624 through £6,270 Price range: £3,624 through £6,270
PVC DN100 Counter-flange Kit for Saci Pumps£156

On backorder, call for lead time

Need some advice?

Not sure which product you need? Our team can help.

01284 658770

Product overview

The Saci E-Magnus is a three phase commercial pool pump that pairs the high flow Magnus pump with a built-in speed drive and IE4 permanent magnet motor. Filtering the same daily volume at lower speed over longer hours, Saci’s figures for the E-Magnus 550 show energy savings of 37% to 83% against a fixed speed Magnus.

Highlights

Programmable speeds for each filtration cycle. Power use drops sharply as speed falls, so slower, longer cycles cut running costs

IE4 permanent magnet motor, up to 92% efficient, running cooler to extend the life of bearings and mechanical parts

Extremely quiet running, keeping plant noise down in pool halls, changing rooms and guest areas

You can link up to 8 E-Magnus pumps for large installations, the software decides how many pumps run for each programme and alternate to share running hours evenly

Protection against dry running and motor overload, with alerts when the basket or sand filter needs cleaning

Ready to work with saltwater, with a chemical resistant body and a large capacity pre-filter basket

Details

Model
 E-Magnus 550
Flowrate Max.
 2,050 L/min
Head Max.
 14m
Horse Power
 5.5 HP
Power Output
 4.0 kW
Voltage
 400V
Motor Speed
 1450 RPM
Discharge Size
 DN100 flange
Suction Size
 DN100 flange
Model
 E-Magnus 1000
Flowrate Max.
 2,667 L/min
Head Max.
 18m
Horse Power
 10.0 HP
Power Output
 7.5 kW
Voltage
 400V
Motor Speed
 1450 RPM
Discharge Size
 DN100 flange
Suction Size
 DN100 flange

New IPM sensor less brushless motor with permanent magnets, which reduces the engine temperature and extends the life of bearing and mechanical parts

Transparent, polycarbonate lid for inspecting pre-filter basket

Pre-filter body, pump body, volute, counter volute and cover in glass-fibre loaded polypropylene resistant to pool chemicals

Large polythene pre-filter prevents floating debris from damaging the pump or connected equipment

Mechanical seal in ceramic carbon and AISI 316 Stainless Steel (ready to work with seawater)
