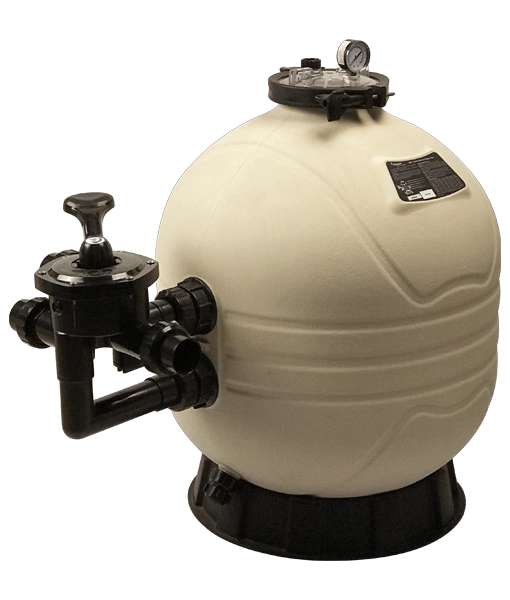

Poolex Ultra Side 20 Pool Sand Filter with Six-Way Valve
Poolex Ultra Side Pool Sand Filter with Six-Way Valve
Poolex Ultra Side Pool Sand Filter with Six-Way Valve
Poolex Ultra Side 20 Pool Sand Filter with Six-Way Valve
Poolex Ultra Side Pool Sand Filter with Six-Way Valve
Poolex Ultra Side Pool Sand Filter with Six-Way Valve
Product code: 114816 Categories: , , , Tag: View more products from...

Overview

With a maximum operating pressure of 2.8 bar (40 PSI), integrated pressure gauge, reinforced design, and recyclable HDPE tank, the Poolex Ultra Side 20 delivers superior performance.

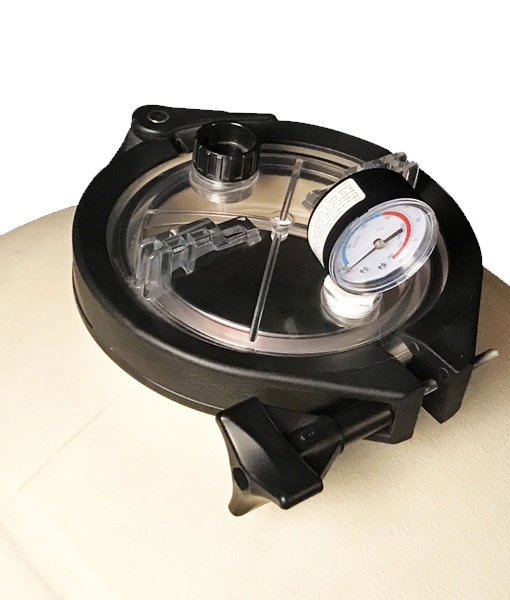

The clamp with screw locking greatly simplifies installation and allows for tool-free maintenance, which is a considerable advantage for users. Additionally, these filters are equipped with a 6-way multiport valve, made of robust Acrylonitrile Butadiene Styrene (ABS) and stainless steel.

With robust construction, these filters withstand high pressures, ensuring exceptional durability even in the most demanding environments. The advanced filtration technology relies on specially designed elements to effectively remove impurities, fine particles, algae, and other contaminants from the water, creating unparalleled purity.

Furthermore, simplified maintenance makes cleaning and element replacement easy, minimizing downtime. These filters are compatible with various filtration pumps, offering easy integration into different existing filtration systems while maximizing energy efficiency to reduce operating costs.

These filters are suitable for a variety of applications, from residential to public pools, offering exceptional filtration, unparalleled longevity, and ease of maintenance, making them the ultimate choice for those demanding superior water quality.

Key features

High-density polyethylene recyclable tank

Models to suit flow rates from 10m³/h to 30.5m³/h

Models to suit pools from 60 to 180m³

Maximum operating pressure 2.8 bar, maximum water temperature 50°C

6-way side mounted valve, clear lid with pressure gauge

50mm/1½ inch (63mm/2 inch for Side 27 – 35) stepped glue socket union adaptors for connection to your pool pipework (please note that for pipe measurement, Imperial = Internal Bore and Metric = Outside Diameter)

Ten year tank, two year valve warranty

Downloads

Replacing your filter

If you are replacing a filter that forms part of an existing system then your replacement should match the size of the existing filter.

For example if you already have a 20 inch filter and 1.0HP pump on a 20m³ pool then you would still need 20 inch filter, alternatively you would need to replace both the pump and filter with a smaller selection as per our sizing guide below.

What size filter?

Pool volume

Filter size
<60m³
 20 inch / 500mm
60-80m³
 24 inch / 600mm
80-105m³
 27 inch / 675mm
105-140m³
 31 inch / 775mm
140-180m³
 35 inch / 875mm

How much media?

We stock sand and glass media for our filter sets, the recommended size of sand is 0.4 to 0.8 mm, sand is supplied in 25Kg bags, our glass media is supplied in 20Kg bags.

Please note the sand required is a specific grade, please do not use builders’ sand or play sand as this may block or damage your filter.

Side 20
70Kg / 55Kg
 3 x 25Kg Sand / 3 x 20Kg Glass
Side 24
125Kg / 100Kg
 5 x 25Kg Bags / 5 x 20Kg Glass
Side 27
185Kg / 150Kg
 8 x 25Kg Bags / 8 x 20Kg Glass
Side 31
320Kg / 255Kg
 13 x 25Kg Bags / 13 x 20Kg Glass
Side 35
430Kg / 345Kg
 18 x 25Kg Bags / 18 x 20Kg Glass

Specifications

Flowrate Max.
 10 m³/h
Size
 20 inch
Sand / Glass Required
 70 / 55 Kg
Bags of Sand / Glass
 3 / 3
Estimated Pool Size
 60m³
Connections
 1½ inch / 50mm
