Product overview

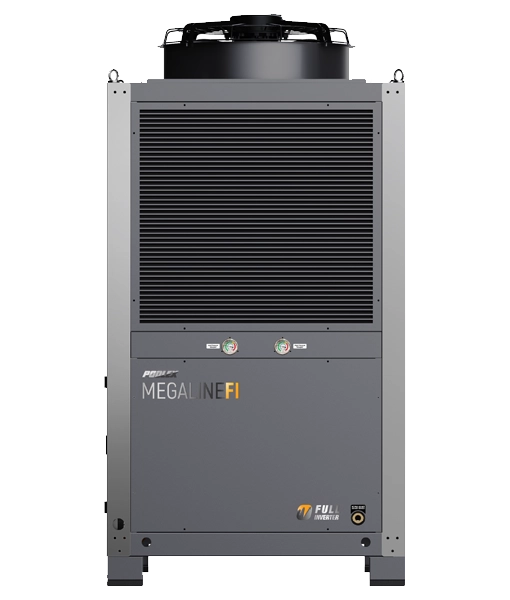

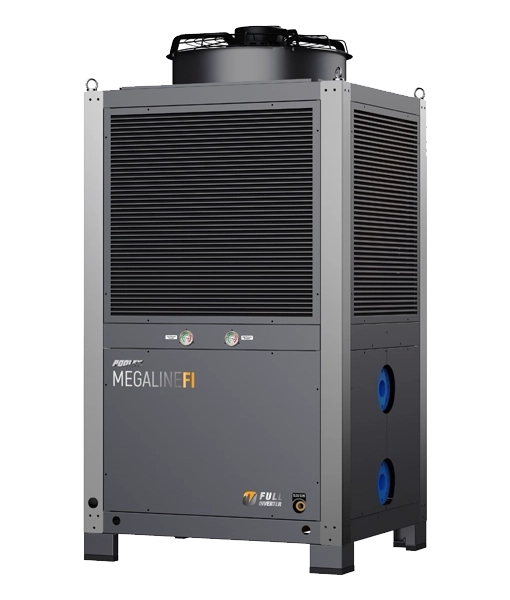

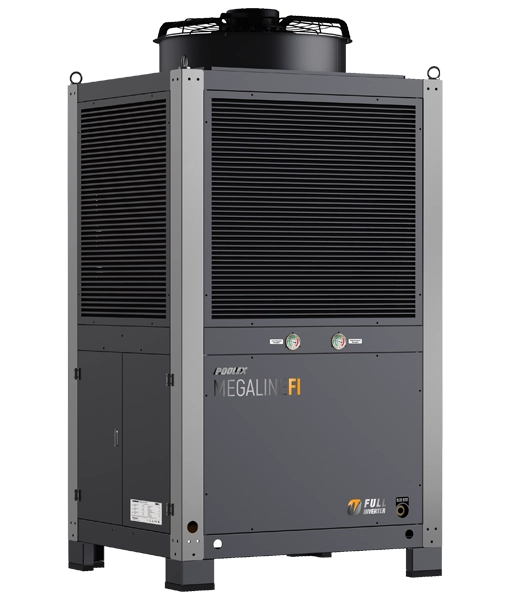

Engineered for large-scale commercial pools, the Poolex Megaline Fi 70 heat pump combines a high-efficiency Mitsubishi multi-frequency rotary inverter compressor with vertical ventilation in a high-quality stainless and powder-coated steel frame. Intelligent electronic management and a twisted titanium heat exchanger deliver powerful, low-noise heating with dependable operation down to -15°C.

Highlights

Advanced step-less DC inverter system automatically modulates compressor and fan speeds to maximise heating efficiency and lower energy consumption

High-quality stainless and powder-coated steel structure provides exceptional strength, durability, and corrosion resistance for demanding commercial environments

Vertical ventilation design reduces acoustic pressure for quiet commercial operation below 53 dB(A) at 10 metres

Built-in Wi-Fi connectivity enables remote monitoring and parameter adjustments through the Smart Life smartphone app

Twisted Tech titanium heat exchanger provides exceptional corrosion resistance and rapid thermal transfer for demanding commercial pool environments

Extended operating range heats and cools pools efficiently in ambient temperatures down to -15°C with automatic hot gas defrosting

Specifications

Max. Heating Capacity A26/W26
89.80kW
Min. Heating Capacity A26/W26
22.62kW
Consumption A26/W26
13.58~1.42 kW
COP A26/W26
15.93~6.61
Max. Heating Capacity A15/W26
70kW
Min. Heating Capacity A15/W26
21.43kW
Consumption A15/W26
13.65~3.05 kW
COP A15/W26
7.65~5.05
Voltage
380/415V Three Phase
Operating Temperature
-15°C~43°C
Heating Temperature
15°C~40°C
Cooling Temperature
8°C~28°C
Max. Power
20kW
Max. Current
35A
Nominal Flow
35m³/h
Refrigerant
R32
Compressor
Rotary Inverter (Mitsubishi)
Noise Level (10m)
<50db
Water Connections
75mm
Dimensions (L x W x H)
1252mm x 1075mm x 2428mm
Weight
448Kg
Wi-Fi Connectivity
Built-in* (Requires Smart Life App)

Parts warranty | Heat Pump: 3 Years / Compressor: 7 Years / Titanium heat exchanger: 15 Years

Warranty covers manufacturing defects only

Important: Damage caused by frost is not covered by the warranty, please make sure you correctly winterise your heat pump and drain all residual water during periods of non-usage
