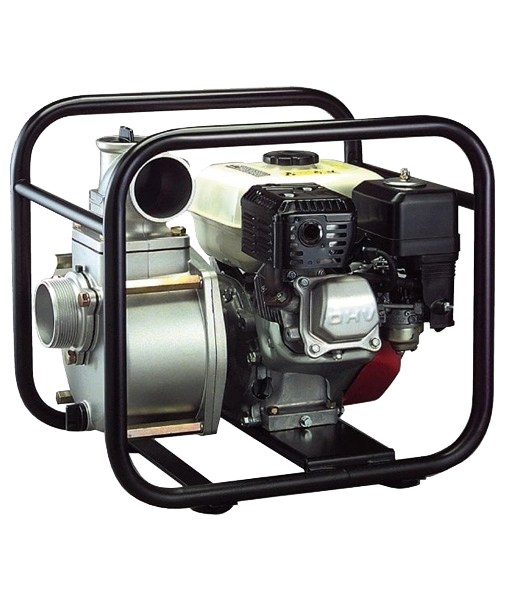

Koshin STH Petrol Semi Trash Water Pump
£870
Documents
Product overview
The Koshin STH petrol semi-trash water pump can be used for the transfer of clean or dirty water and is powered by an air-cooled four-cycle Honda engine, discharge connection is a female threaded BSP.
The STH semi-trash engine pump is multi-purpose and can handle dirty and unrefined water containing mud or sand with suspended solids up to 8mm.
Key features
Powered by a strong and durable Honda GX engine, the strong and lightweight die-cast aluminium pump delivers a high volume of water
Silicon carbide mechanical seal is 4-5 times more durable than standard carbon ceramic mechanical seal
Spheroidal graphite iron casting for impeller and volute casing is 10 times more erosion resistant than standard cast iron
3 or 4 inch suction and discharge
Maximum 900 litres per minute and 30m head
Strainer and wrench supplied as standard
Downloads
Manual (.pdf)
Specifications
STH-50X
Engine Type |
Honda GX120 Forced air cooled 4 stroke engine |
Engine Size |
118cc |
Fuel Tank |
2.5L |
Fuel Type |
Petrol |
Maximum Power @ 3600rpm |
2.6 kW / 3.5 PS |
Starting Method |
Recoil |
Suction |
2 inch / 50mm |
Discharge |
2 inch / 50mm |
Maximum Flow Rate |
600 L/min |
Total Lift |
29m |
Suction Lift |
7m |
Dry Weight |
25 Kg |
Solids Handling |
8mm |
STH-80X
Engine Type |
Honda GX160 Forced air cooled 4 stroke engine |
Engine Size |
163cc |
Fuel Tank |
3.6L |
Fuel Type |
Petrol |
Maximum Power @ 3600rpm |
3.6 kW / 4.9 PS |
Starting Method |
Recoil |
Suction |
3 inch / 80mm |
Discharge |
3 inch / 80mm |
Maximum Flow Rate |
900 L/min |
Total Lift |
26m |
Suction Lift |
7m |
Dry Weight |
35 Kg |
Applications
Field irrigation
Orchard cultivation
Pumping water from wells
Feeding or draining water to/from ponds or troughs
Feeding or draining water on fish farms
Washing cattle, barns or agricultural tools
Feeding water into water reservoirs
