Overview

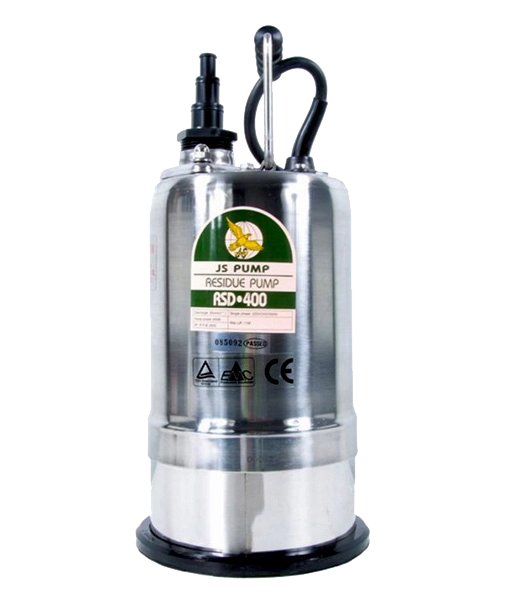

The RSD400 Residue is a low suction drainage pump, also known as a puddle pump, the design of the bottom strainer creates a powerful suction that can pump residual water as low as 2mm from the surface level.

The RSD400 features a special swing check valve and valve sheet at the suction side, once primed the pump will not lose it’s water even when stopped.

The RSD400 can be used to pump out residue water from tanks and pits, construction sites, underpasses, ditches and swimming pools. The bottom plate comes fitted with a cushioned rubber cover that prevents damage to surfaces.

The pump features a stainless steel outer case, motor pack and shaft, and has a cast iron motor lid, pump casing and volute. The mechanical seal is made from durable silicon and a circumferential flow system provides superior cooling for long continuous running.

Key features

Maximum flow 180 litres per minute, maximum head 11m

1¼ inch threaded top outlet, comes with hose tail with 25mm, 19mm and 15mm steps

Lightweight and portable with integral handle

Suitable for long continuous running

Stainless steel casing

Built in swing check valve

Rubber bottom prevents damage to pumping surface

Downloads

Specifications

Model
RSD400
Operation
Manual
Flowrate Max.
180 L/min
Head Max.
11m
Impeller Type
Open
Power
0.4 kW
Voltage
230V | 110V
Water Level Min.
2mm
Discharge Size
1¼ inch
Pumped Medium
Water
Cable Length
10m
Construction
Stainless steel
Weight
9.5 Kg
Dimensions (H x W x L)
370mm x 167mm x 167mm

Technical data

Low energy consumption of 0.4kW

230V 3.8A | 110V 7.6A

10 metre mains cable

Suitable for long continuous running

Available in 230v or 110v
