Product code: 10958 Category: Tag: View more products from...

Overview

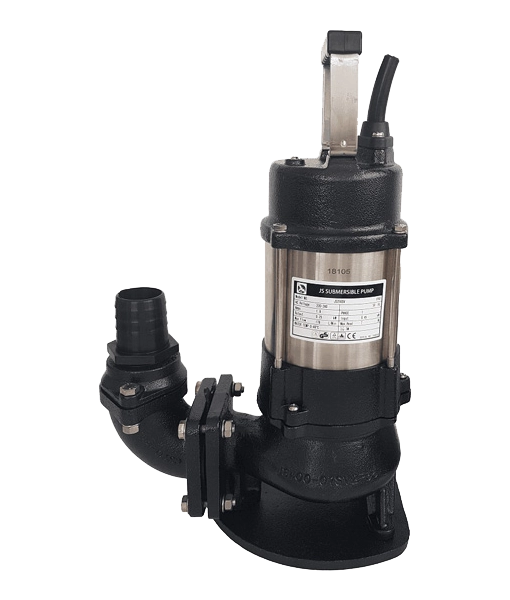

The JS 650SV submersible sewage pump is a heavy duty pump featuring a vortex impeller which is suitable for soft solids handling, allowing mud, sewage, viscous liquids, wood chips and other soft solids (maximum diameter 48mm) to be passed through the pump body to waste.

The 650SV features a stainless steel shaft and motor casing, capable of withstanding sandy water pumping, a cast iron pump body, impeller, lower motor bearing/seal housing and motor top cover with twin carbon ceramic and silicon carbide mechanical seals.

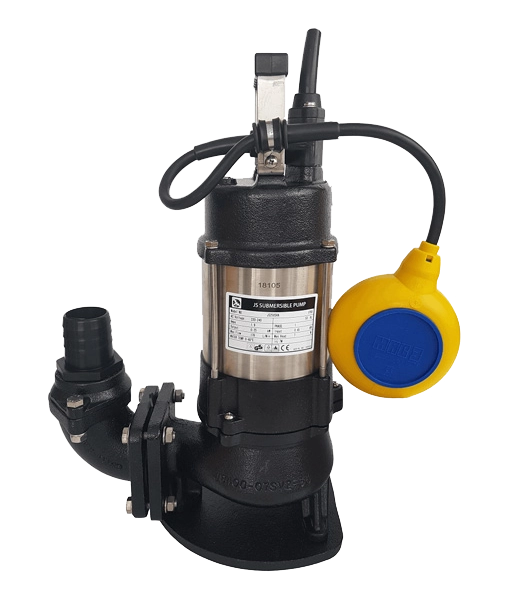

The pumps come complete with a 10-metre mains cable and a hose tail (2-inch discharge). The automatic version features a MAC3 float switch.

Key features

Maximum flow 300 litres per minute, maximum head 8m

2 inch discharge

Vortex impeller

Free passage up to 48mm

230v, manual or automatic versions

Automatic version with Mac3 (wired) float

Downloads

Specifications

Model
650SV
Operation
Manual / Automatic
Flowrate Max.
300 L/min
Head Max.
15m
Impeller Type
Vortex
Power
0.75 kW
Voltage
230V
Water Temp Max.
40°C
Motor Speed
3000 RPM
Discharge Size
2 inch
Free Passage
48mm
Pumped Medium
Sewage & dirty water
Cable Length
10m
Construction
Cast iron
Weight
21 Kg
Dimensions (H x W x L)
480mm x 160mm x 230mm

Technical data

Cast iron pump body, impeller, lower motor bearing/seal housing and motor top cover

Stainless steel shaft and motor casing

Twin mechanical seals, lower seal is silicon carbide and upper seal is carbon ceramic and silicon carbide

Extra lip seal to prevent abrasives entering motor chamber

Complete with a 10-metre mains cable

Internal thermal protection
