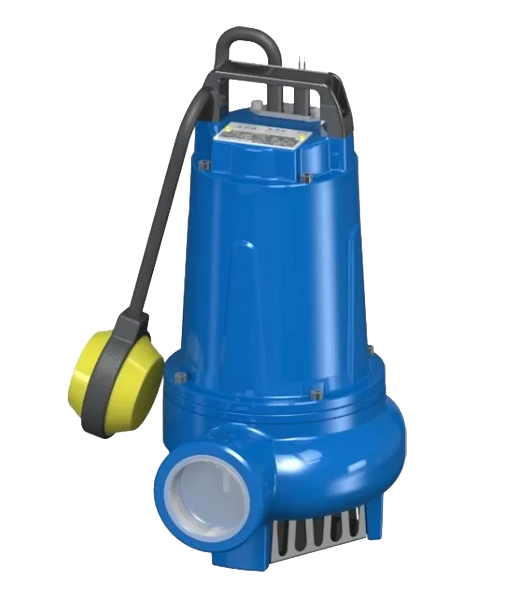

The Hydra 1-5 from AF Pumps is suitable for draining or supplying water and features a strainer at the base to prevent larger solids passing through the pump. Designed and manufactured in Italy, the Hydra are hard-wearing and dependable pumps.
The Hydra can be used for draining sumps, irrigation of orchards and gardens from tanks and recirculating water for fountains.
Construction is cast iron with a stainless steel strainer, the open multi-vane fully submerged impeller is suitable for handling clear and slightly dirty water.
The Hydra has a maximum flow rate of 580 litres per minute and a maximum head of 19m, the pumps are available in 230v and 400v manual and automatic with attached float switch.
Maximum flow 580 litres per minute, maximum head 19m
Suitable for clear or slightly dirty water
Stainless steel strainer, free passage of solids up to 12mm
1¼ inch to 2 inch discharge
Open multi-vane fully submerged impeller
230v and 400v manual and automatic versions
Single phase models feature built-in capacitor motor protection, three-phase models require external capacitor protection (not provided)
Maximum temperature of pumped fluid 40°C
PH of pumped fluid 6-10
Flowrate Max. |
190 L/min |
Head Max. |
8m |
Impeller Type |
Multi-vane |
Horse Power |
0.4 HP |
Power |
0.3 kW |
Voltage |
230V (M)(MG) or 400V (T) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG) |
Motor Speed |
2850 RPM |
Discharge Size |
1¼ Inch |
Free Passage |
7mm |
Pumped Medium |
Clean and slightly dirty water |
Cable Length |
5m |
Construction |
Cast iron |
Weight |
9.5 Kg |
Dimensions (H x W x L) |
263mm x 135mm x 151mm |
Flowrate Max. |
215 L/min |
Head Max. |
9m |
Impeller Type |
Multi-vane |
Horse Power |
0.5 HP |
Power |
0.37 kW |
Voltage |
230V (M)(MG) or 400V (T) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG) |
Motor Speed |
2850 RPM |
Discharge Size |
1¼ Inch |
Free Passage |
7mm |
Pumped Medium |
Clean and slightly dirty water |
Cable Length |
5m |
Construction |
Cast iron |
Weight |
10 Kg |
Dimensions (H x W x L) |
263mm x 135mm x 151mm |
Flowrate Max. |
325 L/min |
Head Max. |
10m |
Impeller Type |
Multi-vane |
Horse Power |
0.8 HP |
Power |
0.6 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
1½ Inch |
Free Passage |
9mm |
Pumped Medium |
Clean and slightly dirty water |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
13.5 Kg |
Dimensions (H x W x L) |
317mm x 164mm x 188mm |
Flowrate Max. |
380 L/min |
Head Max. |
12m |
Impeller Type |
Multi-vane |
Horse Power |
1.0 HP |
Power |
0.75 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
1½ Inch |
Free Passage |
9mm |
Pumped Medium |
Clean and slightly dirty water |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
14.5 Kg |
Dimensions (H x W x L) |
317mm x 164mm x 188mm |
Flowrate Max. |
360 L/min |
Head Max. |
8m |
Impeller Type |
Multi-vane |
Horse Power |
0.8 HP |
Power |
0.6 kW |
Voltage |
230V (M)(MG) or 400V (T)(TG) |
Water Level Max. |
20m |
Operation |
Manual (M)(T) or Automatic with float (MG)(TG) |
Motor Speed |
2850 RPM |
Discharge Size |
2 Inch |
Free Passage |
12mm |
Pumped Medium |
Clean and slightly dirty water |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
14.5 Kg |
Dimensions (H x W x L) |
345mm x 170mm x 210mm |
Motor housing Cast iron GG 25
Strainer stainless steel AISI 316
Shaft stainless steel AISI 420
Electric cable neoprene H07RN8-F oil resistant
Bolt A2 class AISI 304
O’ring and lip seal nitrile
Mechanical seal on silicon carbide + allumina
Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath
Protection IP 68 and insulation class F
