Our Hot Tank lifting station has been specially designed to pump waste water with temperatures up to 90°C, making it ideally suited for removing waste water and condensate from dishwashers, industrial kitchens and laundries.

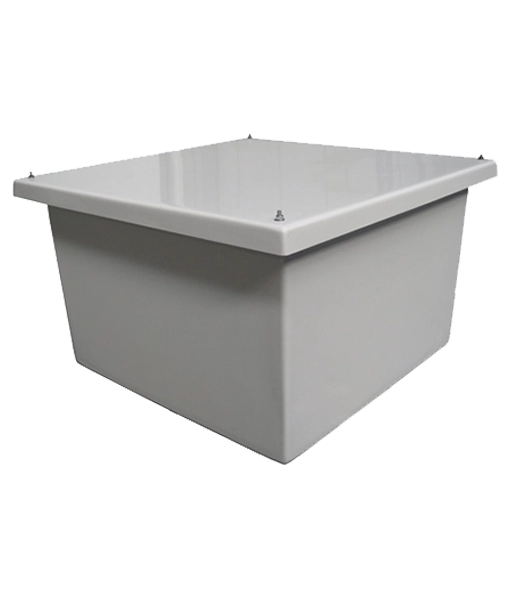

The Hot Tank itself is a compact GRP (glass-reinforced plastic) offering a high strength to weight ratio, additional benefits include excellent resistance to impact, heat and chemicals and a long maintenance-free life. There is a choice of galvanised or stainless steel pipework.
As well as handling high temperatures the pumps are capable of passing small solids that may enter the tank from sinks or dishwashers.
Hot water pumps capable of 330 L/min flowrate and 10m vertical lift
Can handle temperatures up to 90°C, ideal for condensate drainage
10mm solids free passage, suitable for laundries, kitchens and food industries
Compact GRP tank is robust, durable and easy to install in small spaces
Automatic operation with float switches and control panel
Galvanised or stainless steel metal pipework and metal float switch bracket
Tank Material |
GRP |
Flowrate Max. |
330 L/min |
Power |
0.65 kW |
Current |
4A |
Cable on pumps |
10m |
Number of floatswitches |
3 |
Max Head |
10m |
Discharge Size & Type |
1½ inch Male BSP |
Inlets |
To be cut on site |
Pipework Size |
1½ inch |
Pump Model |
H307WA |
Number of pumps |
2 |
Tank Dimensions (H x W) |
550mm x 700mm |
Sump Capacity |
250 L |
Single stage centrifugal pump with horizontal discharge, female BSP 1½ inch
Open multichannel impeller, spherical clearance 10 mm
Fully submersible, pressure tight electric motor, oil filled
Insulation class F. Degree of protection IP 68
10m Cable BI HF-J 4 x 1,5
Large diameter stainless steel rotor shaft, pre-lubricated bearings
Combination of mechanical seal (silicon-carbide) and lip-seal (viton)
