Elecro Quantum UV Steriliser
Elecro Quantum UV Steriliser
Elecro Quantum UV Steriliser
Elecro Quantum UV Steriliser
Product code: 63689 Category: Tag:

Overview

The Elecro Quantum uses ceramic Nano Crystal technology to sterilise your pool water without the use of chemicals.

The Quantum uses a combination of photocatalytic, hydroxyl radical and UV technology to eliminate contaminants in your pool, leaving water looking fresh and clean, which in turn reduces the need for chemicals in your pool.

The Elecro Quantum keeps your family safe from dangerous microorganisms such as cryptosporidium, adenoviruses and naegleria fowleri.

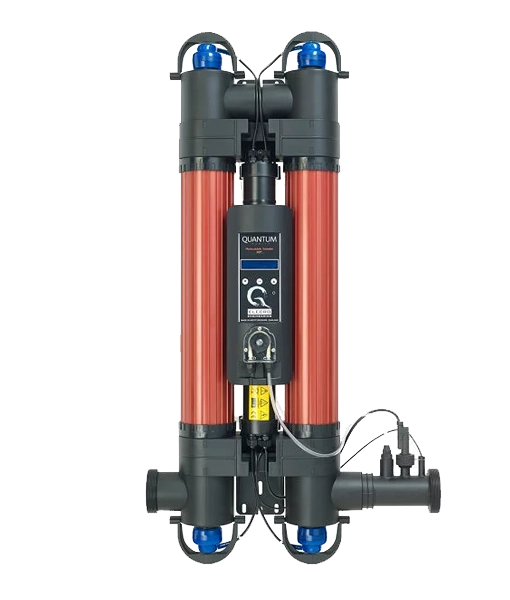

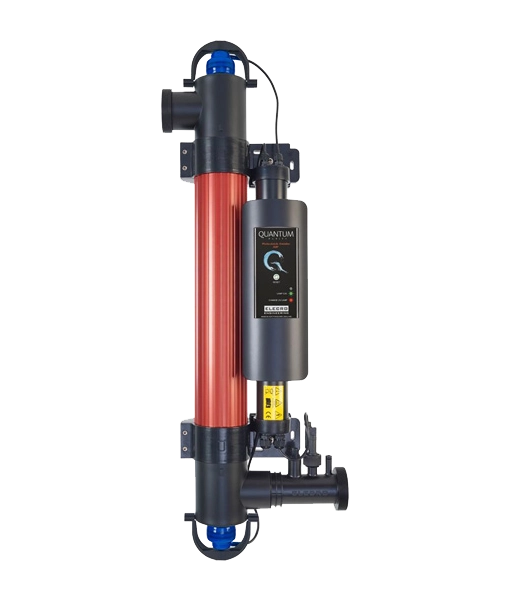

The Quantum is available in single or twin tube configurations with an optional smart peristaltic dosing system for chlorine and hydrogen peroxide.

The Quantum should always be placed after any pumps, filters and heating devices but before any chemical dosing or similar water treatment.

Key features

Photocatalytic Ti02/Mo oxidiser and clarifier

Combined photocatalytic, hydroxyl radical and UV technology

Eliminates contaminants, leaving water looking fresh and clean

Reduces the need for chemicals in the pool

Keeps your family safe from dangerous microorganisms such as cryptosporidium, adenoviruses and naegleria fowleri

Optional smart peristaltic dosing system for chlorine and hydrogen peroxide

Powerful sterilisation and eliminates the smell of chlorine

Average lamp life expectancy: 2 years

Equipped with intelligent lamp life indicator

Salt and sea water compatible

Made in the U.K.

Downloads

Technical data

Power: 100V ~ 240V

Min, flow rate: 4m³/h

Max. flow rate: Single Tube: 14,000 litres per hour; 14 m³/h / Double Tube: 28,000 litres per hour; 28 m³/h

Max. pool size: Single Tube: 65,000 litres; 65m³ / Double Tube: 130,000 litres; 130m³

Max. power consumption: Single Tube: 64W / Double Tube: 128W

Lamp: Low pressure / high output

Lamp life: 14,000 hours

Dosing rate: Exceeds the equivalent of 30mj/cm² at max. flow rate

Protection: IP64

Working pressure: 3 Bar maximum

Water connections: 2 inch / 63mm stepped ABS unions + reducers 1½ inch / 50mm

Salt water: 100% sea water safe

Mounting: Floor or wall mounting

Oxidisation processes: Quantum photocatalytic oxidiser (PCO) & hydroxyl radicals (HO)

Product code: 63689 Category: Tag:
