Key features

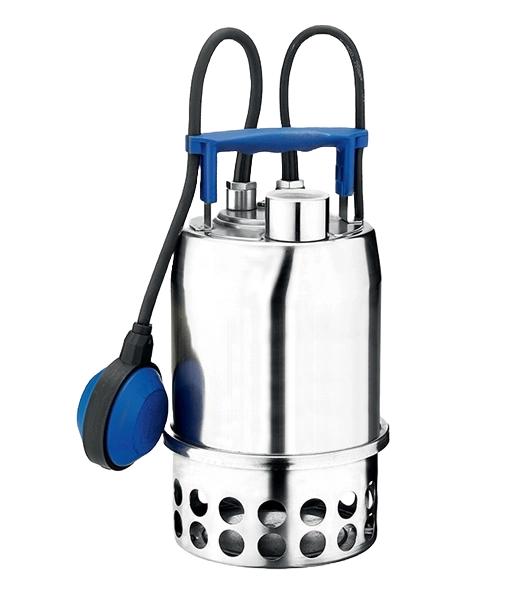

The BEST ONE VOX can be used to drain basements, garages, cellars and areas prone to flooding
Vortex impeller in stainless steel
Suitable for clean water containing small particles up to 20mm
Maximum immersion depth of 5 metres
Maximum temperature handling of 50°C
The BEST ONE (semi-open centrifugal impeller) has 10mm maximum solids passage
Mechanical seal is constructed of Carbon/Ceramic/NBR
Downloads
Specifications (.pdf)
Manual (.pdf)
Product specifications
Operation |
Manual (no float) |
Float Start Height |
n/a |
Float Stop Height |
n/a |
Flowrate Max. |
170 L/min |
Head Max. |
6.5m |
Impeller Type |
Vortex |
Horse Power |
0.33 HP |
Power |
0.25 kW |
Voltage |
230V or 415V |
Water Level Max. |
5m |
Water Temp Max. |
50°C |
Motor Speed |
2800 RPM |
Discharge Size |
1¼ Inch |
Free Passage |
20mm |
Pumped Medium |
Water & small particles up to 20mm |
Cable Length |
5m |
Construction |
Stainless Steel AISI 304 |
Weight |
4.4 Kg / 4.6 Kg |
Dimensions (H x W x L) |
304mm x 167mm x 167mm |
Operation |
Automatic (cable float) |
Float Start Height |
330mm |
Float Stop Height |
110mm |
Flowrate Max. |
170 L/min |
Head Max. |
6.5m |
Impeller Type |
Vortex |
Horse Power |
0.33 HP |
Power |
0.25 kW |
Voltage |
230V |
Water Level Max. |
5m |
Water Temp Max. |
50°C |
Motor Speed |
2800 RPM |
Discharge Size |
1¼ Inch |
Free Passage |
20mm |
Pumped Medium |
Water & small particles up to 20mm |
Cable Length |
5m |
Construction |
Stainless Steel AISI 304 |
Weight |
4.8 Kg |
Dimensions (H x W x L) |
304mm x 167mm x 167mm |
Technical data
Maximum submersion: 5m
Max. fluid temperature: 50°C
Solid dimensions: 10mm / 20mm for the VOX version (Vortex)
Two pole asynchronous motor
Insulation class F
Protection rating IP68
Single phase voltage 230V ±10% 50Hz, three-phase voltage 400V ±10%, 50Hz
Delivery connection: G1¼ (hose tail not provided)
