DAB ESYBOX and TWIN ESYTANK Booster Pump Set
£2,457.65
On backorder, call for lead time
Other customers bought
This item: DAB ESYBOX and TWIN ESYTANK Booster Pump Set
£2,457.65
£2,457.65
On backorder, call for lead time
Optional Accessories
Rated Excellent on Trustpilot
4.9 out of 5 over 1,200 five star reviews
Product overview

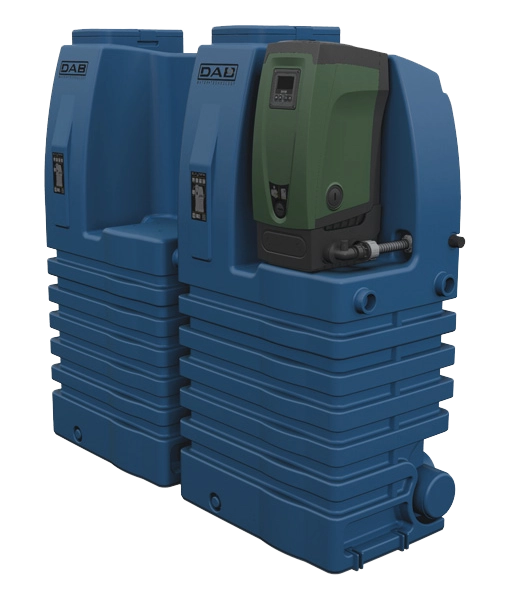

Our best-selling DAB ESYBOX and ESYTANK is a complete cold water pressure system from DAB for water pressure boosting in domestic and residential applications, and can increase pressure to taps, showers, appliances, garden taps and from rainwater harvesting systems.
The ESYBOX is a self-priming variable speed pump that automatically adjusts the flow according to the demand providing constant water pressure and can save you 50% on running costs compared with traditional solutions.
The twin ESYTANKS provide 960 litres of drinking water storage, and can be easily installed in areas such as a utility room or cellar, the integral ESYDOCK allows quick connection of the pump.
The WRAS approved DAB ESYBOX comes with a three year guarantee and the ESYTANK, which complies to EN 1717 (Protection against pollution of drinking water), comes with a one year guarantee.
Key features
Inverter technology means the ESYBOX only draws the energy necessary according to water requirements
Whisper quiet operation, less than 45 dB in standard use
Suitable for drinking water, complies to EN 1717, 480 litre maximum capacity
Air gap, valve and overflow prevents backflow and provides protection against pollution of potable water (BS EN 1717:2000)
Easy to install and maintain, technical compartment allows access to the expansion vessel and maintenance tools
Supplied with one ESYTANK with DOCK and one Auxiliary ESYTANK for additional storage
1662mm (H) 1740mm (W) 595mm (D)
ESYBOX requires 230v mains connection (comes with 3-pin plug), maximum 11A
ESYBOX (only) WRAS Approval Number: 1511054
Three year warranty on ESYBOX, one year warranty on ESYTANK
Downloads
Brochure (.pdf)
ESYBOX Quick Guide (.pdf)
ESYBOX Manual (.pdf)
ESYTANK Specifications (.pdf)
Connection Guide (.pdf)
Technical data
Operating range: maximum flow rate 120 l/min, head up to 65 metres
Pumped fluid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral
Maximum liquid temperature: 40°C
Maximum environment temperature: 50°C
Maximum capacity: 960 litres
Maximum system pressure (c/e.sybox): 8 bar
Supply pressure allowed at mains water inlet: max. 6 bar
Dimensions of mains water inlet pipe: ¾ inch
Dimensions of delivery pipe: 1 inch
Dimensions of overflow pipe connection: DN 50
Dimensions of front discharge (not drilled): DN40
Dimensions of discharge lower discharge (not drilled): DN20
