About this product

The DAB 3 KVC AD is a variable speed pressurisation set with three vertical multistage centrifugal pumps particularly suited for domestic use and
small civil or industrial use systems.

Thanks to the use of the Active Driver Plus inverter, they ensure performance levels capable of automatically adapting to the different system requirements, meeting the need for constant pressure of the modern system technology.

The constant pressure adjustment is a requirement in the most varied sectors: water pipelines, irrigation, industry, hotels, residential building and spas.

Their main features are reliability, simple operation, and minimum maintenance requirements.

The Active Driver inverter provides constant control of the rotation speed of the pump, ensuring constant pressure despite flow rate variations.

The other pumps, also with variable speed, are activated in cascade after the first one has reached maximum speed. Through modulation, they compensate the pressure fluctuations of the system.

For every operating cycle, it is possible to switch the restart to a different pump, therefore ensuring even use of all pumps.

Product code: 105666 Category: View more products from...

DAB 3 KVC AD Triple Pump Booster Set

DAB 3 KVC AD Triple Pump Booster Set
DAB Active Driver Plus
DAB 3 KVC AD Triple Pump Booster Set
DAB 3 KVC AD Triple Pump Booster Set
DAB 3 KVC AD Triple Pump Booster Set
DAB Active Driver Plus
DAB 3 KVC AD Triple Pump Booster Set
DAB 3 KVC AD Triple Pump Booster Set
Product code: 105666 Category: View more products from...

About this product

The DAB 3 KVC AD is a variable speed pressurisation set with three vertical multistage centrifugal pumps particularly suited for domestic use and
small civil or industrial use systems.

Thanks to the use of the Active Driver Plus inverter, they ensure performance levels capable of automatically adapting to the different system requirements, meeting the need for constant pressure of the modern system technology.

The constant pressure adjustment is a requirement in the most varied sectors: water pipelines, irrigation, industry, hotels, residential building and spas.

Their main features are reliability, simple operation, and minimum maintenance requirements.

The Active Driver inverter provides constant control of the rotation speed of the pump, ensuring constant pressure despite flow rate variations.

The other pumps, also with variable speed, are activated in cascade after the first one has reached maximum speed. Through modulation, they compensate the pressure fluctuations of the system.

For every operating cycle, it is possible to switch the restart to a different pump, therefore ensuring even use of all pumps.

Product code: 105666 Category: View more products from...

DAB 3 KVC AD Triple Pump Booster Set

Product code: 105666 Category: View more products from...

DAB 3 KVC AD Triple Pump Booster Set

Payment methods we accept

Next working day delivery availableIn-stock items, order by 2pm Mon to Fri

Wholesale enquiries

If you would like more information on our range of Poolstar products, including Poolex Spawer heat pumps, Holl's saunas, NetSpa ice baths and Formidra showers, you can talk to our team on 01284 658770 or send us an email.

We are proud to be the official UK & Ireland Poolstar distribution partner.

View the Poolstar 2025-2026 Catalogue - pdf (73Mb)
Payment methods we accept

Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri

Wholesale enquiries

If you would like more information on our range of Poolstar products, including Poolex Spawer heat pumps, Holl's saunas, NetSpa ice baths and Formidra showers, you can talk to our team on 01284 658770 or send us an email.

We are proud to be the official UK & Ireland Poolstar distribution partner.

View the Poolstar 2025-2026 Catalogue - pdf (73Mb)

Sales and technical help

Our sales team is more than happy to advise with product selection, wholesale enquiries and provide technical advice.

While our servicing team is on hand to help with servicing and after sales.

01284 658770

Mon to Fri 9am to 5pm /out-of-hours voicemail

Product code: 105666 Category: View more products from...

DAB 3 KVC AD Triple Pump Booster Set

Product code: 105666 Category: View more products from...

DAB 3 KVC AD Triple Pump Booster Set

Payment methods we accept

Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri

Wholesale enquiries

If you would like more information on our range of Poolstar products, including Poolex Spawer heat pumps, Holl's saunas, NetSpa ice baths and Formidra showers, you can talk to our team on 01284 658770 or send us an email.

We are proud to be the official UK & Ireland Poolstar distribution partner.

View the Poolstar 2025-2026 Catalogue - pdf (73Mb)
Payment methods we accept

Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri

Wholesale enquiries

If you would like more information on our range of Poolstar products, including Poolex Spawer heat pumps, Holl's saunas, NetSpa ice baths and Formidra showers, you can talk to our team on 01284 658770 or send us an email.

We are proud to be the official UK & Ireland Poolstar distribution partner.

View the Poolstar 2025-2026 Catalogue - pdf (73Mb)

Sales and technical help

Our sales team is more than happy to advise with product selection, wholesale enquiries and provide technical advice.

While our servicing team is on hand to help with servicing and after sales.

01284 658770

Mon to Fri 9am to 5pm /out-of-hours voicemail

Product code: 105666 Category: View more products from...

About this product

The DAB 3 KVC AD is a variable speed pressurisation set with three vertical multistage centrifugal pumps particularly suited for domestic use and
small civil or industrial use systems.

Thanks to the use of the Active Driver Plus inverter, they ensure performance levels capable of automatically adapting to the different system requirements, meeting the need for constant pressure of the modern system technology.

The constant pressure adjustment is a requirement in the most varied sectors: water pipelines, irrigation, industry, hotels, residential building and spas.

Their main features are reliability, simple operation, and minimum maintenance requirements.

The Active Driver inverter provides constant control of the rotation speed of the pump, ensuring constant pressure despite flow rate variations.

The other pumps, also with variable speed, are activated in cascade after the first one has reached maximum speed. Through modulation, they compensate the pressure fluctuations of the system.

For every operating cycle, it is possible to switch the restart to a different pump, therefore ensuring even use of all pumps.

Active Driver Plus

The Active Driver inverter is a pump control device that includes the connections to the hydraulic system, a pressure sensor, a flow sensor, and an electronic frequency inverter.

Active Driver is applied on the delivery of each electric pump, and regulates the rotation speed of the pump it is connected to, so that the pressure is kept constant in spite of variations in the required flow rate.

The water flowing through the Active Driver Plus connections also contributes to eliminating the heat produced by the internal electric components.

The Active Driver orders the pump to start as soon as it detects a request of water, the speed of the pump is (consistently) regulated at the minimum value that meets the request of the user, this ensures important energy savings. In this set, the second and third pumps are activated in cascade when the first pump reaches the maximum rotation speed.

The pump pressure may be adjusted by using the + and – buttons on Active Driver.

Key features

Fixed pressure regardless of flow required

3 KVC vertical multistage pumps

Galvanized sheet steel base complete with 4 rubber anti-vibration feet

Suction and delivery manifolds in stainless steel

1 x 8-litre expansion vessel per set (18 litres for the 85/120 size)

Check valves both at the suction and the delivery and non-return valve at the delivery included

3 Active Driver Plus inverter

Max Flow: 600 litres per minute (36 m³/h)

Max. pressure: 13 bar

Fine settings blocked by password, failures and incidents history

Protection against pump overload, dry-running, low voltage, maximum pressure exceeded (adjustable) and Active Driver electronics overheating

Two year warranty

Downloads

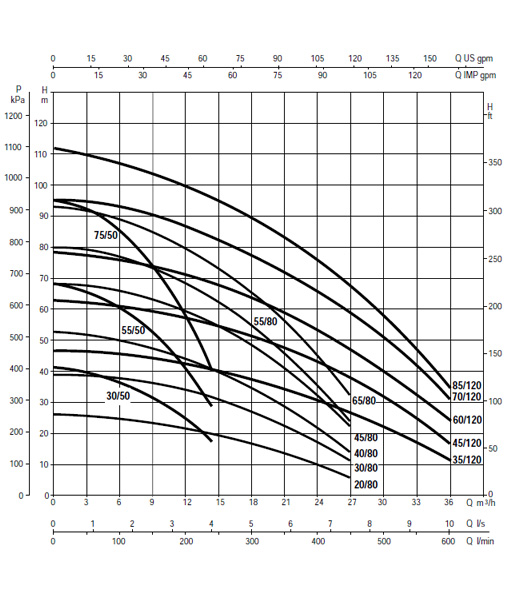

Pump curves


Technical data

Operating range: from 0,5 to 36 m3/h

Pumped liquid: clean, free of solids and abrasives, non viscous, non aggressive, non crystallised and chemically neutral, with properties similar to water

Pumped liquid temperature range: from 0 °C to +40 °C

Maximum ambient temperature: +40 °C

Maximum operating pressure: PN12

Special executions on request: up to 4 pumps

Protection class: IP44

Active Driver Plus

The Active Driver inverter is a pump control device that includes the connections to the hydraulic system, a pressure sensor, a flow sensor, and an electronic frequency inverter.

Active Driver is applied on the delivery of each electric pump, and regulates the rotation speed of the pump it is connected to, so that the pressure is kept constant in spite of variations in the required flow rate.

The water flowing through the Active Driver Plus connections also contributes to eliminating the heat produced by the internal electric components.

The Active Driver orders the pump to start as soon as it detects a request of water, the speed of the pump is (consistently) regulated at the minimum value that meets the request of the user, this ensures important energy savings. In this set, the second and third pumps are activated in cascade when the first pump reaches the maximum rotation speed.

The pump pressure may be adjusted by using the + and – buttons on Active Driver.

Key features

Fixed pressure regardless of flow required

3 KVC vertical multistage pumps

Galvanized sheet steel base complete with 4 rubber anti-vibration feet

Suction and delivery manifolds in stainless steel

1 x 8-litre expansion vessel per set (18 litres for the 85/120 size)

Check valves both at the suction and the delivery and non-return valve at the delivery included

3 Active Driver Plus inverter

Max Flow: 600 litres per minute (36 m³/h)

Max. pressure: 13 bar

Fine settings blocked by password, failures and incidents history

Protection against pump overload, dry-running, low voltage, maximum pressure exceeded (adjustable) and Active Driver electronics overheating

Two year warranty

Downloads

Pump curves


Technical data

Operating range: from 0,5 to 36 m3/h

Pumped liquid: clean, free of solids and abrasives, non viscous, non aggressive, non crystallised and chemically neutral, with properties similar to water

Pumped liquid temperature range: from 0 °C to +40 °C

Maximum ambient temperature: +40 °C

Maximum operating pressure: PN12

Special executions on request: up to 4 pumps

Protection class: IP44
