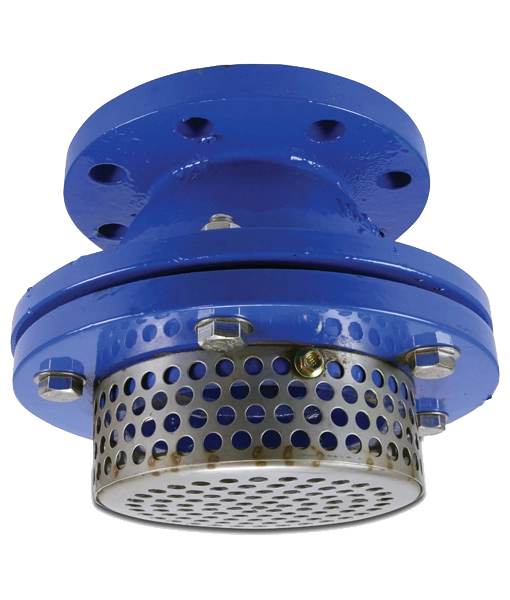

Flanged Foot Valve with Stainless Steel Strainer
Product overview
Flanged foot valve with strainer and DIN PN16/PN10 connections.
Made from GG 25 Cast Iron, these flanged foot valves come with a stainless steel 304 strainer (8mm holes).
The maximum pressure handling is 16 Bar and the usable temperature range is -20°C to 135°C.
Downloads
Specifications (.pdf)
Information
| Flange | PN10/16 |
|---|---|
| Temp. range | -20°C – 135°C |
| Connection | DIN flange |
| Holes | 8mm |
| Material | cast iron GG 25 |
| Pressure | 16 bar |
