Product code: 79353 Category: Tag: View more products from...

Overview

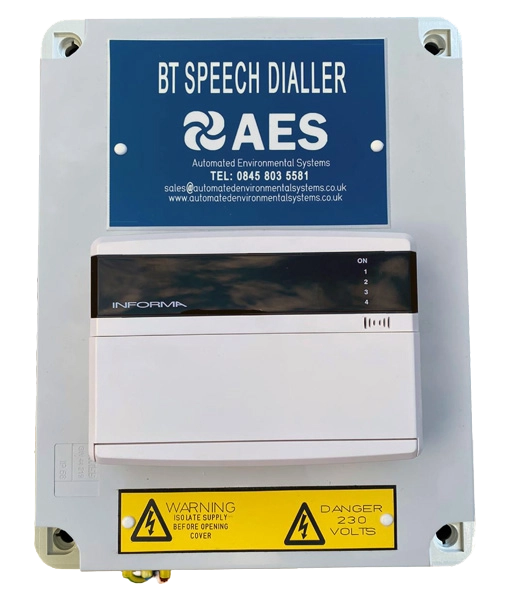

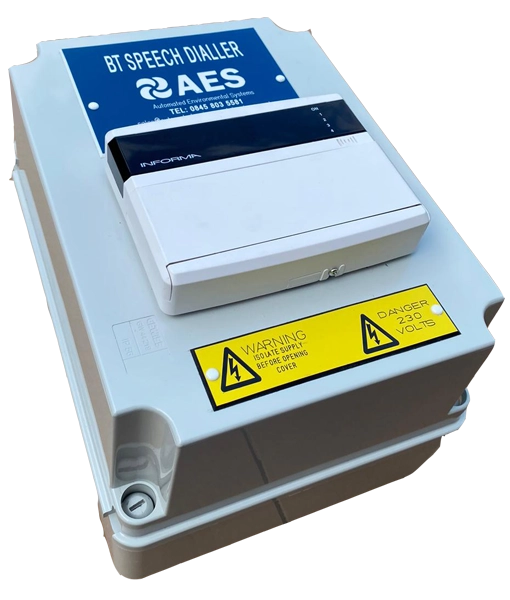

Our GSM pump alarm with BT Dialler uses a standard telephone line to dial a pre-programmed telephone number or numbers, it plays two pre-recorded messages, the location of the site and the status of the connected pump equipment.

The BT Dialler can be used with pumping stations, sewage treatment plants and cold water booster sets to alert users if the liquid in the tank rises or falls beyond the high and low levels, or to notify of running or tripped pumps, providing an early warning of a problem can help prevent flooding of pumping stations.

The BT Dialler comes with a short cable (30cm) for connecting to a BT socket, this cable can be extended using standard phone extension cables.

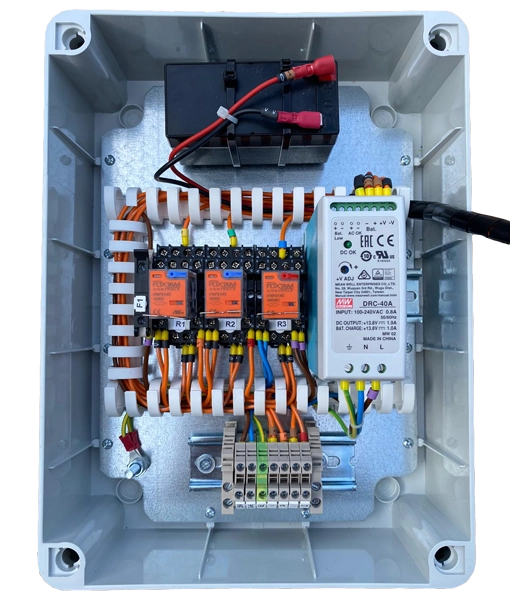

The dialler features battery backup so that alerts can still be sent in the event of a power cut, the recharging relay makes sure that the 12v battery is always fully charged. An optional flashing LED beacon is available separately.

Key features

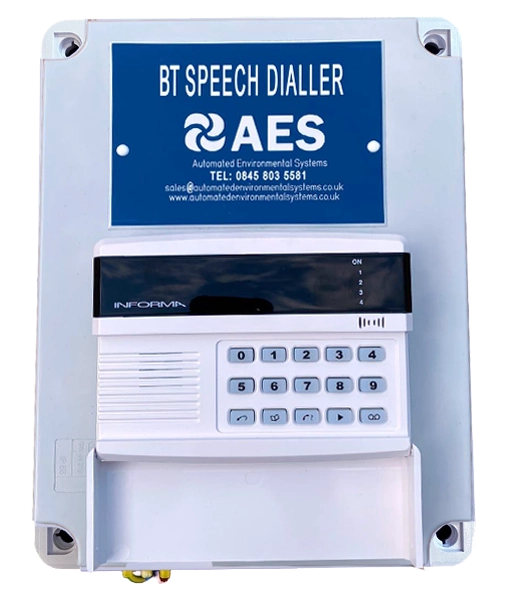

Four messages can be prerecorded, one location message of up to 11 seconds (site address) and three alarm messages of three seconds each, for example “pump one tripped” or “pump station high level”

Recorded messages and telephone numbers stored in non-volatile memory

‘Follow me’ function allows a temporary contact number to be added before alarm is set, this number is dialled first in the event of an alarm and will be deleted once the system is unset

Choice of 10m, 20m or 30m BR float switch

12v battery backup

Three inputs (normally open volt free) – including float switch and pressure switch

Input voltage – 230v (0.8A)

Includes a 12v output relay to activate optional external beacon

IP65 rated enclosure

Comes with short cable (30cm) for connecting to BT socket, can be easily extended using standard phone extension cables

(H x W x D) 240mm x 190mm x 160mm

Downloads

Product code: 79353 Category: Tag: View more products from...

GSM Pump Alarm with BT Dialler, Battery Backup and Float Switch

Product code: 79353 Category: Tag: View more products from...

Overview

Our GSM pump alarm with BT Dialler uses a standard telephone line to dial a pre-programmed telephone number or numbers, it plays two pre-recorded messages, the location of the site and the status of the connected pump equipment.

The BT Dialler can be used with pumping stations, sewage treatment plants and cold water booster sets to alert users if the liquid in the tank rises or falls beyond the high and low levels, or to notify of running or tripped pumps, providing an early warning of a problem can help prevent flooding of pumping stations.

The BT Dialler comes with a short cable (30cm) for connecting to a BT socket, this cable can be extended using standard phone extension cables.

The dialler features battery backup so that alerts can still be sent in the event of a power cut, the recharging relay makes sure that the 12v battery is always fully charged. An optional flashing LED beacon is available separately.

Product code: 79353 Category: Tag: View more products from...

GSM Pump Alarm with BT Dialler, Battery Backup and Float Switch

Product code: 79353 Category: Tag: View more products from...

GSM Pump Alarm with BT Dialler, Battery Backup and Float Switch

GSM Pump Alarm with BT Dialler, Battery Backup and Float Switch
External Beacon for High Level Pump Alarm
External Beacon for High Level Pump Alarm

Beacons

External 110V to 230V Beacon for High Level Pump Alarm - RED£60 £50 + vat

6 in stock online Next working day delivery available

External 110V to 230V Beacon for High Level Pump Alarm - AMBER£60 £50 + vat

2 in stock online Next working day delivery available

Payment methods we accept

We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers

Next working day delivery availableIn-stock items, order by 2pm Mon to Fri

GSM Pump Alarm with BT Dialler, Battery Backup and Float Switch
External Beacon for High Level Pump Alarm
External Beacon for High Level Pump Alarm

Beacons

External 110V to 230V Beacon for High Level Pump Alarm - RED£60 £50 + vat

6 in stock online Next working day delivery available

External 110V to 230V Beacon for High Level Pump Alarm - AMBER£60 £50 + vat

2 in stock online Next working day delivery available

Payment methods we accept

We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers

Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri

Product code: 79353 Category: Tag: View more products from...

Overview

Our GSM pump alarm with BT Dialler uses a standard telephone line to dial a pre-programmed telephone number or numbers, it plays two pre-recorded messages, the location of the site and the status of the connected pump equipment.

The BT Dialler can be used with pumping stations, sewage treatment plants and cold water booster sets to alert users if the liquid in the tank rises or falls beyond the high and low levels, or to notify of running or tripped pumps, providing an early warning of a problem can help prevent flooding of pumping stations.

The BT Dialler comes with a short cable (30cm) for connecting to a BT socket, this cable can be extended using standard phone extension cables.

The dialler features battery backup so that alerts can still be sent in the event of a power cut, the recharging relay makes sure that the 12v battery is always fully charged. An optional flashing LED beacon is available separately.

Key features

Four messages can be prerecorded, one location message of up to 11 seconds (site address) and three alarm messages of three seconds each, for example “pump one tripped” or “pump station high level”

Recorded messages and telephone numbers stored in non-volatile memory

‘Follow me’ function allows a temporary contact number to be added before alarm is set, this number is dialled first in the event of an alarm and will be deleted once the system is unset

Choice of 10m, 20m or 30m BR float switch

12v battery backup

Three inputs (normally open volt free) – including float switch and pressure switch

Input voltage – 230v (0.8A)

Includes a 12v output relay to activate optional external beacon

IP65 rated enclosure

Comes with short cable (30cm) for connecting to BT socket, can be easily extended using standard phone extension cables

(H x W x D) 240mm x 190mm x 160mm

Downloads

Key features

Four messages can be prerecorded, one location message of up to 11 seconds (site address) and three alarm messages of three seconds each, for example “pump one tripped” or “pump station high level”

Recorded messages and telephone numbers stored in non-volatile memory

‘Follow me’ function allows a temporary contact number to be added before alarm is set, this number is dialled first in the event of an alarm and will be deleted once the system is unset

Choice of 10m, 20m or 30m BR float switch

12v battery backup

Three inputs (normally open volt free) – including float switch and pressure switch

Input voltage – 230v (0.8A)

Includes a 12v output relay to activate optional external beacon

IP65 rated enclosure

Comes with short cable (30cm) for connecting to BT socket, can be easily extended using standard phone extension cables

(H x W x D) 240mm x 190mm x 160mm

Downloads
