Not sure what size heat pump you need? Use our sizing guide or request a free quote
Key features
Two year parts and labour warranty, seven years on compressor and heat exchanger (parts only after year two)
Wi-Fi connectivity built-in – requires iOS / Android ‘Smart Life’ App (requires Wi-Fi network with suitable signal strength)
Preset modes; Heating mode, cooling mode, boost mode, silent mode and smart mode
LED button controller
Structure is made from powder-coated galvanised steel
Timer operation
Heats and cools
All season model works down to -10°C, automatic hot gas defrosting
2 inch female threaded water connections
Three phase, 380/415V
High efficiency performance with advanced stepless DC inverter system that automatically controls the running speed of the compressor and the fan
Low noise airstream design for very quiet operation, average sound level 45dB(A) at 10 metres
DC inverter compressor and DC brushless fan motor
Spiral Titanium heat exchanger
R32 gas for environmentally friendly operation
Downloads
Specifications (.pdf)
Manual (.pdf)
Product specifications
Max. Heating Capacity A27/W27 |
70.34kW |
COP A27/W27 |
17.80~6.01 |
Max. Heating Capacity A15/W26 |
55.18kW |
COP A15/W26 |
8.55~5.20 |
Voltage |
380/415V Three Phase |
Operating Temperature |
-10°C~43°C |
Max. Current |
28A |
Refrigerant |
R32 |
Compressor |
Inverter |
Noise Level (10m) |
45db |
Water Connections |
63mm |
Dimensions (L x W x H) |
1520mm x 740mm x 1130mm |
Weight |
300Kg |
Wi-Fi Connectivity |
Built-in* (Requires Smart Life App) |
Connecting your BP700R
Full installation guidelines can be found in the user manual including the recommended fuse and cable size.
Water inlet and outlet connections are 2 inch female threaded.

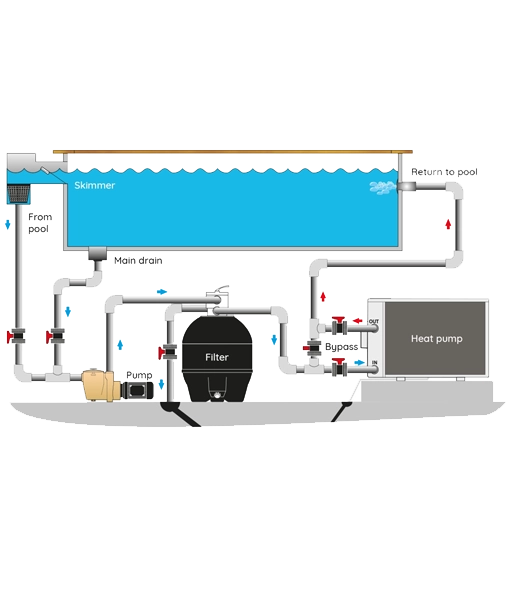

If the flow rate through your heat pump is too high it can take longer to heat your pool or you may struggle to achieve your desired temperature, our bypass kit for above ground pools optimises the flow rate to maximise the heat transfer to your pool water. A bypass kit also allows the circulation and filtering of pool water without heating and for winterising your heat pump.
Smart controls
The BP700R features built-in Wi-Fi connectivity as standard (requires Wi-Fi network with suitable signal strength) and can be controlled from your smart device from anywhere in the world. The Smart Life App is available for both iOS and Android smart devices.
The Smart Life App can be used to view the current pool water temperature, adjust the desired temperature, switch between modes, set the timer, turn the heat pump on and off remotely and to view the operating status, parameters and error codes.
How does the BP700R heat?
Inverter heat pumps use a variable speed compressor motor, the motor speeds up and slows down as needed to achieve and maintain the required temperature, the result is that the desired temperature will be reached more quickly and maintained more efficiently than a fixed speed motor.
Fixed speed motors reach the desired temperature more slowly as the output is fixed, once the temperature is reached they maintain the temperature by switching the motor on and off. By varying the output an inverter heat pump can speed up the time taken to achieve the initial temperature and thereafter maintain a constant temperature without the need to keep stopping and starting the compressor to control output.
With a C.O.P. range of 6.01 to 17.80, it means that for each kW of energy consumed up to 17.80kW of heat is transferred to your pool (dependent on both air and water temperature). Inverter technology avoids the power wastage of fixed speed motors, making an inverter heat pump more energy efficient and quieter to run.
What is COP?
COP stands for Coefficient of Performance
COP is quoted as a number, such as 17.80
For each kW of energy input, 17.80 x kW would be output
The higher the output, the lower the running costs
Warranty
Two year parts and labour
Seven years on compressor and the heat exchanger (parts only after year two)
