EPIC 3D Electronic Triple Pump Control Panel
EPIC 3D Electronic Triple Pump Control Panel
Product code: 78878 Category: Tag: View more products from...

Overview

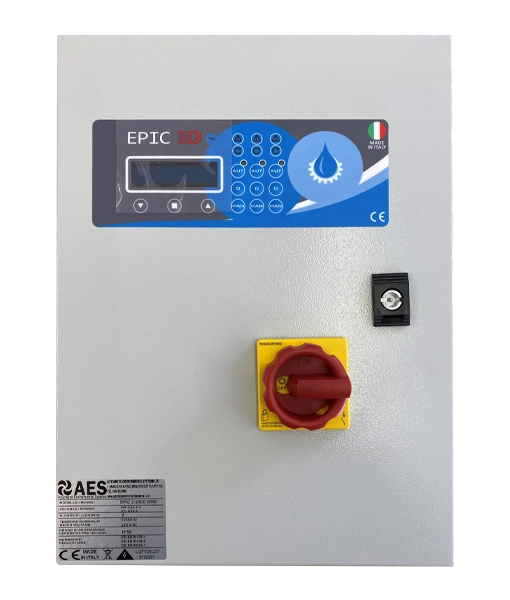

The AES EPIC 3D Metal is a direct on line electronic triple pump control panel that self learns the pump data and can be used for all applications. The same control panel can be used for potable (clean), waste and industrial water applications.

The EPIC 3D works with float switches, pressure switches and probes, it also has a 4-20 mA input for controlling pumps with pressure transducers or level sensors.

Complete with BMS (building management system input), the Epic 3D offers full pump control and protection with data display and parameter setting all in a compact metal box.

The EPIC 3D is available in single and three phase versions (230V and 400V) and is suitable for controlling and protecting pumps from 2A – 16A (230V) and 2A – 15A, 16A – 24A and 16A – 30A (400V).

Key features

Control panel for clean and waste water applications

Works with float switches, pressure switches and probes

Self-learning of the pump data – sets overloads automatically

Single phase panel suitable for pumps from 0.37 – 2.2kW and 0.5 – 3.0HP

Choice of three phase panels to suit pumps up to 15kW and 20HP

Metal enclosure

Duty-stand by logic

Self Holding

Pumps starting in cascade sequence with changeover

BMS (building management system input)

Switch on and Switch off delay

Min and max current protection with alarm

Min and max Voltage protection with alarm

Phase failure protection and alarm

Dry running protection with minimum amperage and cos-fi reading

Min and max water level alarm

Motor Klixon protection and alarm

Water in oil chamber protection and alarm

The control panel works also with the 4-20 mA input (control the pump with a pressure transducer or a level sensor)

RAIN feature

TIMER start and stop the pumps at a predetermined time

Downloads

General features

Power supply input 1 ~ 50/60Hz 230V±10% (SINGLE 230)

Power supply input 3 ~ 50/60Hz 400V±10% (TRIPLE 400)

AUTO-0-MAN mode selection buttons (manual spring return)

Automatic motor running green indicator light

Power on blue indicator light

Safety device reset button (0)

Auxiliary circuit protection fuses

Main disconnect switch with door lock

Provision for start-up capacitors (single phase versions)

Metal box – 40 x 30 x 24cm (H x W X D – including isolator switch)

Tear-proof cable clamp output (only for ABS enclosures)

IP55 protection rating (IP 65 available on request)

Ambient temperature: -5/+40 °C

Relative humidity 50% at 40 °C (condensate free)

Outputs

Acoustic alarm

External Beacon

Free contact alarm output

12V alarm output

230V alarm output

GSM kit (available soon)

GSM kit + battery back up (available soon)
