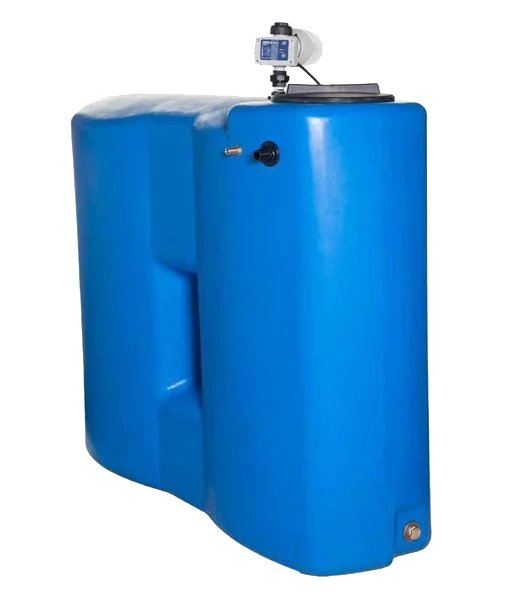

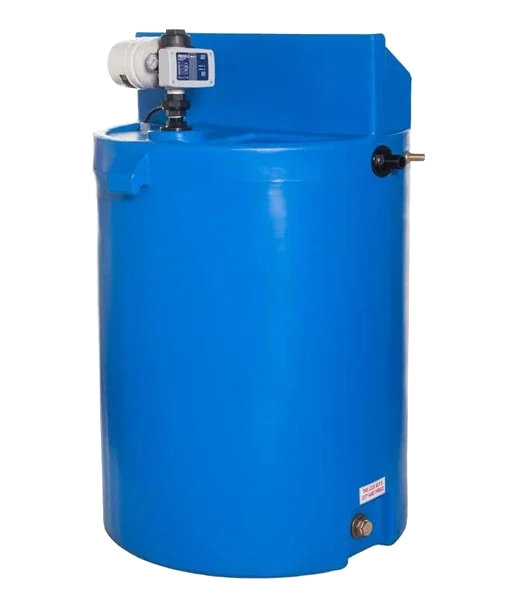

The AG Utility pumping range is designed for domestic and light commercial use where there is low mains water pressure and where pressure fluctuates. It is electronically controlled through a flow switch unit which starts and stops the pump automatically when a tap is opened and closed.
The Utility range is designed for areas where the floor space is not restricted. This range caters for a wider variation of tank options to suit a wider range of applications.

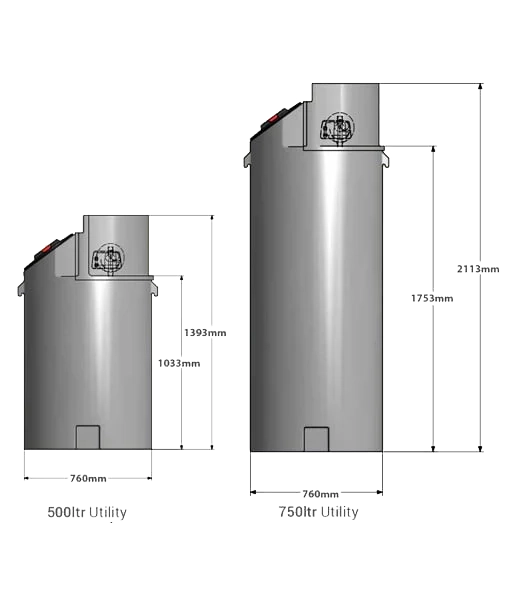

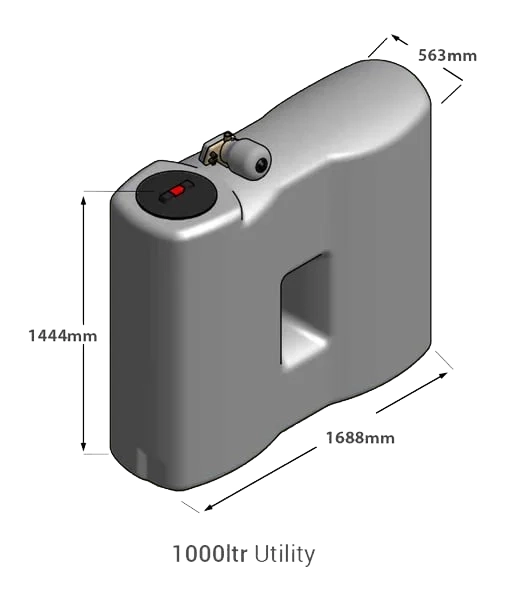

The AG Utility features either a 500, 750 or 1,000 litre break tank manufactured from non-corrosive WRAS approved material and is available with a fixed or variable speed controller and a 3 or 8 litre pressure vessel. There is alsoa variable speed twin pump option on all sizes of tank. The unit requires minimal installation and comes complete with a 2 metre mains cable with fitted 13A plug.
Non-corrosive holding tank (WRAS approved material)
Pre-fitted WRAS approved fill valve
Protective lid enclosure as standard
Minimal installation required
Adjustable digital display flow controller
Dry run protection with auto restart (time delay)
AF Air gap
Suitable up to Fluid Category 4
Inlet – ½ inch BSP / outlet – 1 inch BSP / overflow – 1¼ inch / drain off – 1 inch BSP
Power supply |
240v, 50Hz |
Power |
0.55 kW, 0.75 HP |
Flow (max.) |
80 l/min |
Head (max.) |
42m |
Controller |
Presflo Multi with integral 3ltr pressure vessel |
Current Input |
3.4A |
Mains Power Cable |
2m x 1mm² 3 core fitted with 13A fuse main plug |
Tank Weight Empty |
500ltr = 34 kg | 750ltr = 49 kg | 1,000ltr = 74kg |
Tank Weight Full |
1L = 1Kg plus weight of empty tank |
Access Cover |
285mm |
Power supply |
240v, 50Hz |
Power |
0.55 kW, 0.75 HP |
Flow (max.) |
80 l/min |
Head (max.) |
63m |
Controller |
Steadypres M/T 07 supplied with 8ltr pressure vessel |
Current Input |
4A |
Mains Power Cable |
2m x 1mm² 3 core fitted with 13A fuse main plug |
Tank Weight Empty |
500ltr = 40 kg | 750ltr = 55 kg | 1,000ltr = 80kg |
Tank Weight Full |
1L = 1Kg plus weight of empty tank |
Access Cover |
285mm |
This is the most economic option and will transform the water pressure and flow in your property. This will deliver the full pressure of the pump at the in use flow rate.

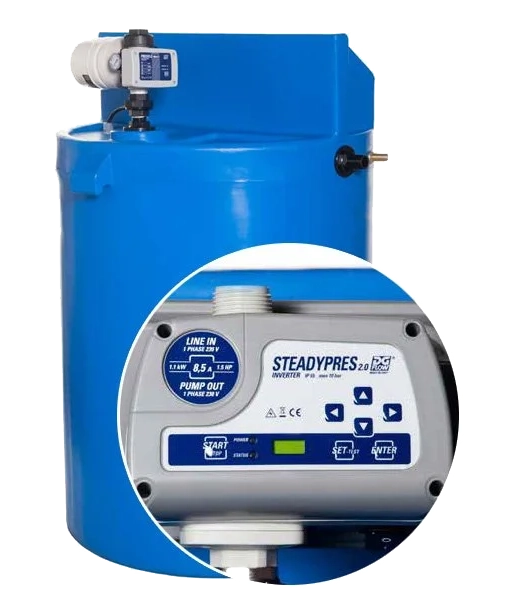

The variable speed option allows you to choose your desired pressure and then leave the AES AG unit to control the pump to make sure it delivers this, speeding up and slowing down to suit demand.
Whatever you are doing, from washing up, watering the garden, having a shower or all three together the pressure will continue to be the same to give you a constant pressure at every outlet.

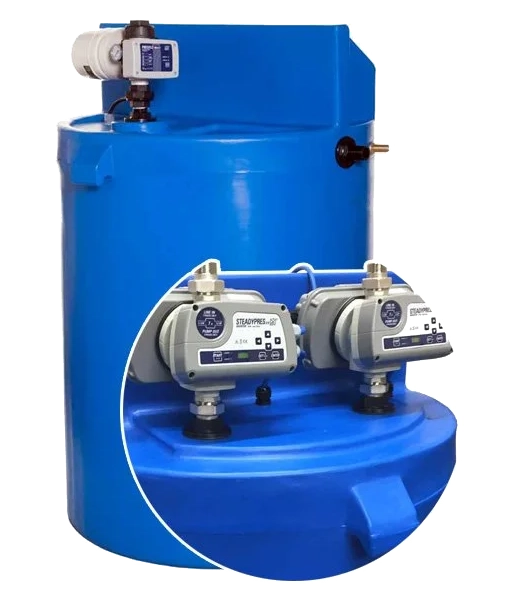

The twin pump option can be added to any of the larger tanks (500L+) and basically does exactly that, adds an extra pump into the tank.
This gives you twice the amount of flow at the same pressure, as well as an option to have the pumps running on duty standby basis, or as two individual duty pumps (e.g. if you wanted to run two separate circuits).
Tanks with a Type AB Air gap with rectangular weir overflow are suitable for Fluid Category 5. This means they can be used for applications where increased backflow protection is required.
Application examples include Butchery and meat trades / WC pans, urinals and bidets / Hospital dialysis machines / Vegetable washing / Laboratories / Grey water-recycling systems / Dish washing and washing machines in healthcare premises / Water storage for agricultural purposes.
Tanks with a Type AF Air gap with circular overflow are suitable for Fluid Category 4.
Application examples include Water in primary circuits and heating systems / Domestic wash basins, baths & showers / Domestic clothes and dish washing machines / Food preparation / Bottle washing apparatus / Irrigation outlets / Brewery and distillation plant / Commercial dish washing machines / Domestic clothes and washing machines when used in commercial premises.
