ABS Sanimax MF154 Lifting Station
ABS Sanimax Lifting Station Pump Curves
ABS Sanimax MF154 Lifting Station
ABS Sanimax Lifting Station Pump Curves
Product code: 47402 Category: Tag:

Overview

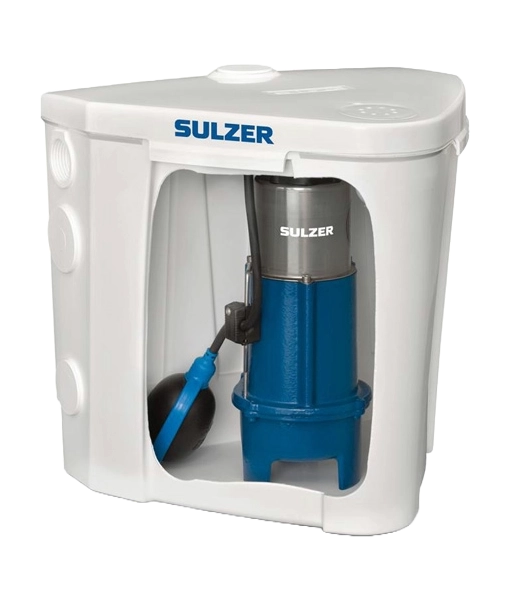

The ABS Sanimax MF324 lifting station is a compact wastewater pumping unit for floor-level installation featuring an MF324 submersible pump with 30mm solids handling.

The Sanimax MF324 can be used for pumping wastewater including washing machines, sinks, showers and bathtubs (not sewage) from buildings and areas below the sewer level in accordance with EN 12050-2.

The Sanimax MF324 features a synthetic, corrosion-resistant, gas- and odour-tight tank, in accordance with EN 12050-2. Supplied as standard with MF324 pump, automatic level control and non-return valve.

Key features

Compact triangular design optimises space beneath a sink

Fitted with MF324 pump with solids handling up to 30mm

Wastewater pumping from washing machines, sinks, showers and bathtubs

Complete with non-return valve and automatic level control – a separate check valve should be used at heads over 5m (3m on hot water version)

Seven ports (5 x 40mm, 2 x 50mm), ready-prepared with seals, which can be used for inflow, discharge, power cable, or flexible hose connection to a washing machine (¾ inch adaptor supplied)

Easy to transport, with simple discharge line connection

Odour-tight lid with odour lock and venting, including charcoal odour filter and overflow protection

Tank capacity 28 litres

3m or 10m HO7RN-F mains cable – ready-for-use, plug-in unit with Schuko plug

For Sanimax MF we recommend that the lower ports should not be used because the switch-on level is higher than the inflow level

Downloads

Technical data

Synthetic, corrosion-resistant, gas- and odour-tight tank, in
accordance with EN 12050-2

Supplied as standard with pump, automatic level control and non-return valve

Maximum allowable temperature of medium 40°C; short term to 60°C (max. 5 minutes)

Capacity: 28 litres

Motor: Water pressure sealed, squirrel cage 2-pole induction motor,
with double shaft seals and oil chamber (MF version)

Electronic monitoring of stator temperature and overcurrent

Insulation: Class B (130 ºC) for Robusta, Class F (155 ºC) for MF

Protection type: IP68
