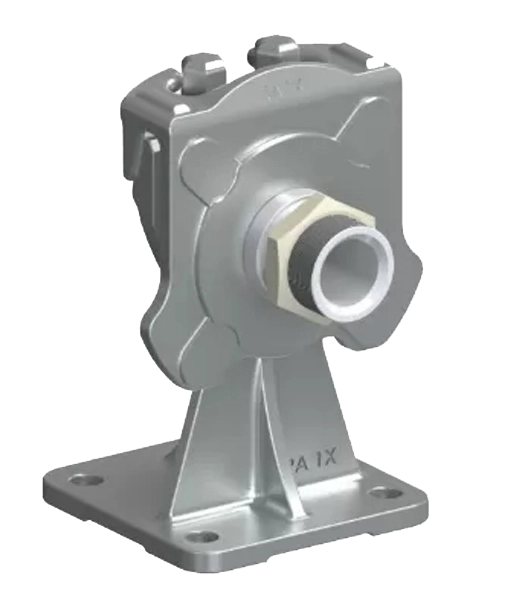

2 inch Stainless Steel Guide Rail Kit | Auto-Coupling Pedestal for Submersible Pumps
£770
Recommended add-ons
This item: 2 inch Stainless Steel Guide Rail Kit | Auto-Coupling Pedestal for Submersible Pumps
£770
£770
On backorder, call for lead time
Documents
Product overview
The premium stainless steel two inch guide rail kit provides a heavy duty, auto coupling solution engineered specifically for handling submersible wastewater and sewage pumps within deep wet wells or below ground pumping stations.
Designed to simplify maintenance routines and improve site safety, this pedestal system allows operators to raise or lower pumps without disconnecting pipework or entering confined chamber spaces.
Highlights
Precision manufactured from stainless steel 304, features a standardised vertical discharge flange layout designed for integration with universal 2 inch threaded pump discharge
The complete auto coupling mechanism facilitates rapid mechanical isolation, allowing busy groundworks engineers to pull submersible pumps for cleaning without dismantling pipe joints
Designed for straightforward site integration using standard ¾ inch diameter steel guide rail tubes to form a perfectly balanced tracking alignment from the chamber cover down to the sump floor
Maintains full free passage throughput across the discharge port to eliminate fluid resistance and minimise the risk of fibrous materials wrapping around the pump base connection
Details
Design & build quality
The precision machined AISI 304 stainless steel components guide the pump down the twin rail tracks, anchoring it securely into a watertight compression seal at the base via a heavy duty mechanical connection.
Every components within the heavy duty assembly is designed to withstand the aggressive environmental conditions within domestic sewage collection sumps, industrial effluent treatment tanks, and commercial drainage systems.
The pedestal base ensures a stable foundation that resists high transverse pressures during pump cycles, by eliminating the need to construct stepped concrete floors within the sump, the universal base mounting layout keeps the pump suction intake at the optimal height for clearing sediment and suspended solids.

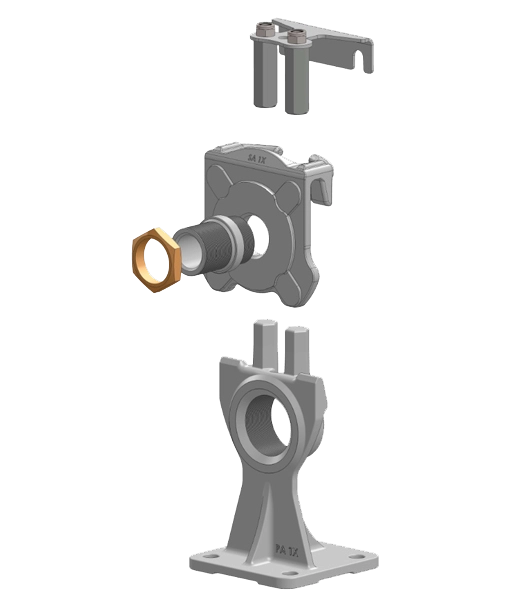

Included kit

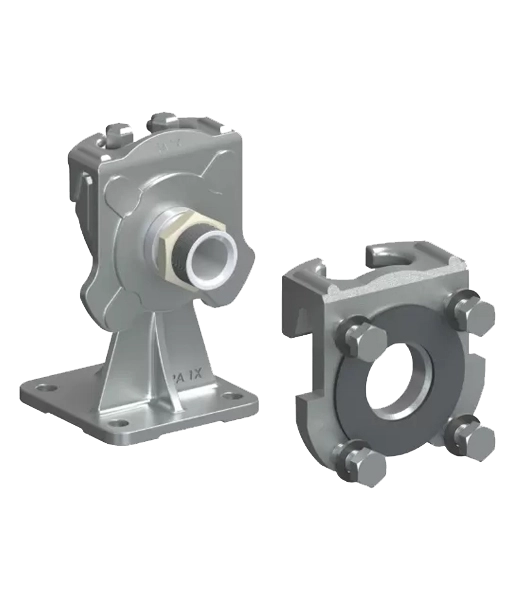

Pedestal base (coupling seat) with 2 x pin guide pipes
pump claw (coupling adaptor) with lock nut
Top bracket (upper guide support)
Please note that the kit does not include any fixings or the guide rail tubes
Specifications
Pump thread |
2 inch |
Guide Rail |
¾ inch x 2 (N/S) |
Material |
Stainless steel |
Discharge |
2 inch free passage |
