2.5 inch Guide Rail Kit
We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers
Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri
Product code: 96000
Category: Pumping Station Accessories
Tags: guide rail kit, pedestal kit
View more products from... AF Pumps
Overview

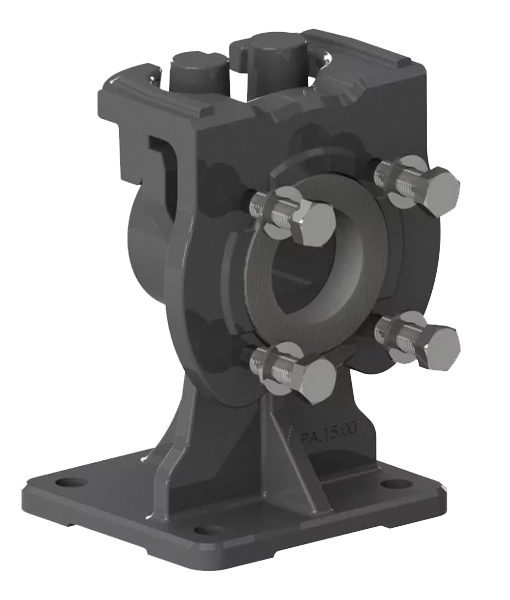

Our 2.5 inch guide rail kit includes pedestal base, pump locating claw (sliding flange) and top guide rail bracket.
These 2.5 inch threaded kits provide an automatic coupling device for submersible pumps that are used in pumping stations and septic tanks.
The pedestal base features a horizontal outlet and is constructed in cast iron and stainless steel, with seal in NBR rubber and epoxy paint finish.
The guide rail kit allows full free passage of pumped liquids and the pump intake port is kept at optimal height, meaning there is no need to provide a step in the bottom of the tank.
The pedestal base (foot) is 2½ inch threaded, while the claw (sliding flange) changes according to the diameter of the delivery port of the pump, it can be DN50 or DN65.
The guide tubes to be used are 1¼ inch.
